HmIPW-FAL230-C10

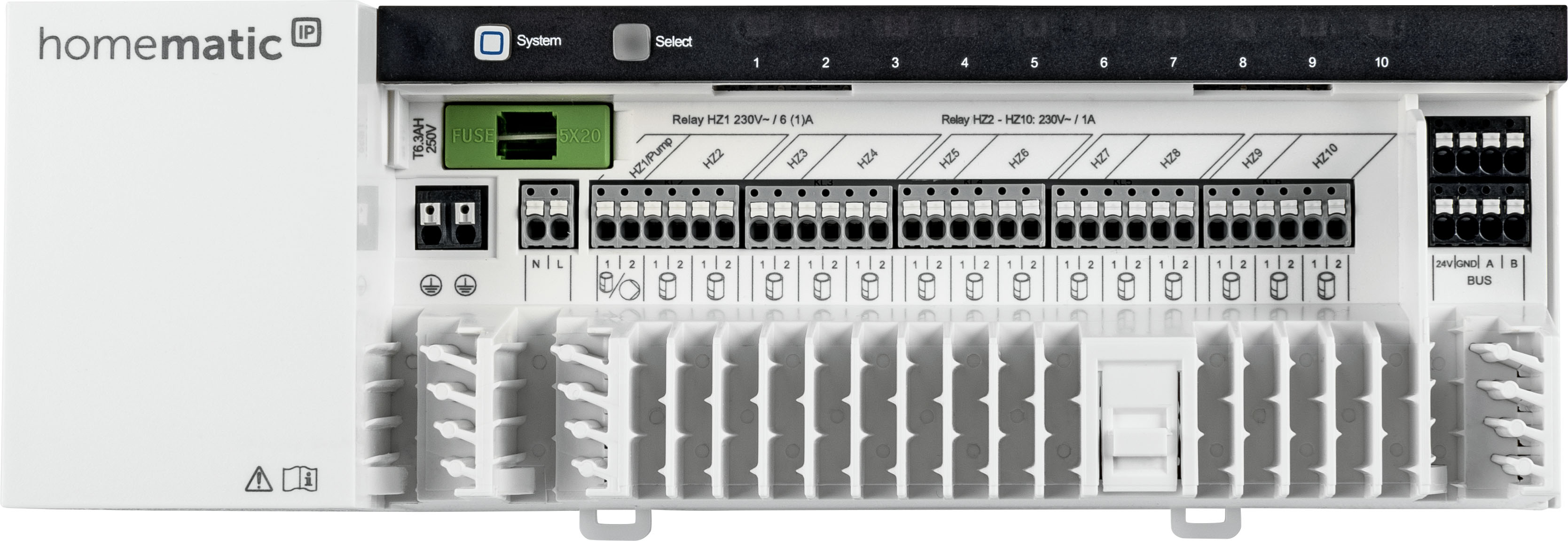

Homematic IP Wired underfloor heating controller - 10 channels, 230 V

Manufacturer: Homematic IP
Product no.: B-031-154159
GTIN/EAN: 4047976526901

CHF 204.31

Prices incl. discount, VAT and excl. shipping costs

Free shipping

From stock

1 product in stock
in cart
HmIPW-FAL230-C10 has been added to the cart has been removed from the cart
Cart

Produktinformationen

Product features: - Underfloor heating actuator with 10 heating zones for convenient control of the underfloor heating in the Homematic IP Wired system - Individual control of the temperature room by room - Enables efficient heating or cooling of the room via floor surfaces - Control of underfloor heating systems and a circulation pump - Automatically ensures a constant flow of heating water and thus achieves even and efficient utilisation of the heating system - Use of several underfloor heating actuators in one house possible - Coupling with Homematic IP Multi IO Box to control the boiler and switch from heating to cooling - Convenient plug-in/clamp connection technology for screwless connection of cables - Each second heating zone is equipped with double terminal points for connecting two heating circuits to one heating zone - Easy installation on a top-hat rail or on the wall using the enclosed screws - Modern control algorithms for all types of water-based underfloor heating systems - A Homematic IP Wired Access Point is required for operation.
Show more Show less
Weight: 0.38 kg
Country of Origin: China
Show more Show less

Homematic IP Wired underfloor heating controller - 10 channels, 230 V #152690A0

The Homematic IP Wired Floor Heating Actuator enables individual control of the respective room temperature for heating or cooling via the Homematic IP Wired bus.

The actuator controls up to fifteen 230-volt valve drives for a maximum of 10 heating zones. Alternatively, 14 valve drives and a circulation pump can also be controlled. Thanks to modern control algorithms, all types of water-based underfloor heating systems are supported. In addition, the system automatically ensures a constant flow of heating water, thereby achieving even and efficient utilisation of the heating system. To connect two heating circuits to one heating zone, every second heating zone is also equipped with double terminal points. If required, the Homematic IP Multi IO Box can be coupled with the actuator. This enables direct control of boilers and switching from heating to cooling mode. The underfloor heating actuator can be installed either on a top-hat rail or directly on the wall.

A Homematic IP Wired Access Point is required for operation in the wired system. The Wired system can be controlled via the CCU3 central control unit, via many partner solutions and in future also via the Homematic IP Cloud. If required, for example on the building site, commissioning and configuration can also be carried out directly on the Wired wall thermostat, i.e. without a central control unit or access point.

Further product information is available at www.homematic-ip.com. A detailed user manual for the Homematic IP system can be found in the download area.

Product features

1. wired underfloor heating actuator for convenient control of the underfloor heating via 10 heating zones in the Homematic IP Wired system.

2. connection of max. fifteen 230-volt valve drives or fourteen 230-volt valve drives and one 230-volt circulation pump possible.

3. automatically ensures a constant flow of heating water and thus achieves an even and efficient utilisation of the heating system.

4. can be linked to the Homematic IP Multi IO Box to control the boiler and switch from heating to cooling.

5. commissioning and configuration of the underfloor heating control possible directly on the Wired wall thermostat (without CCU3 central control unit or Access Point).
