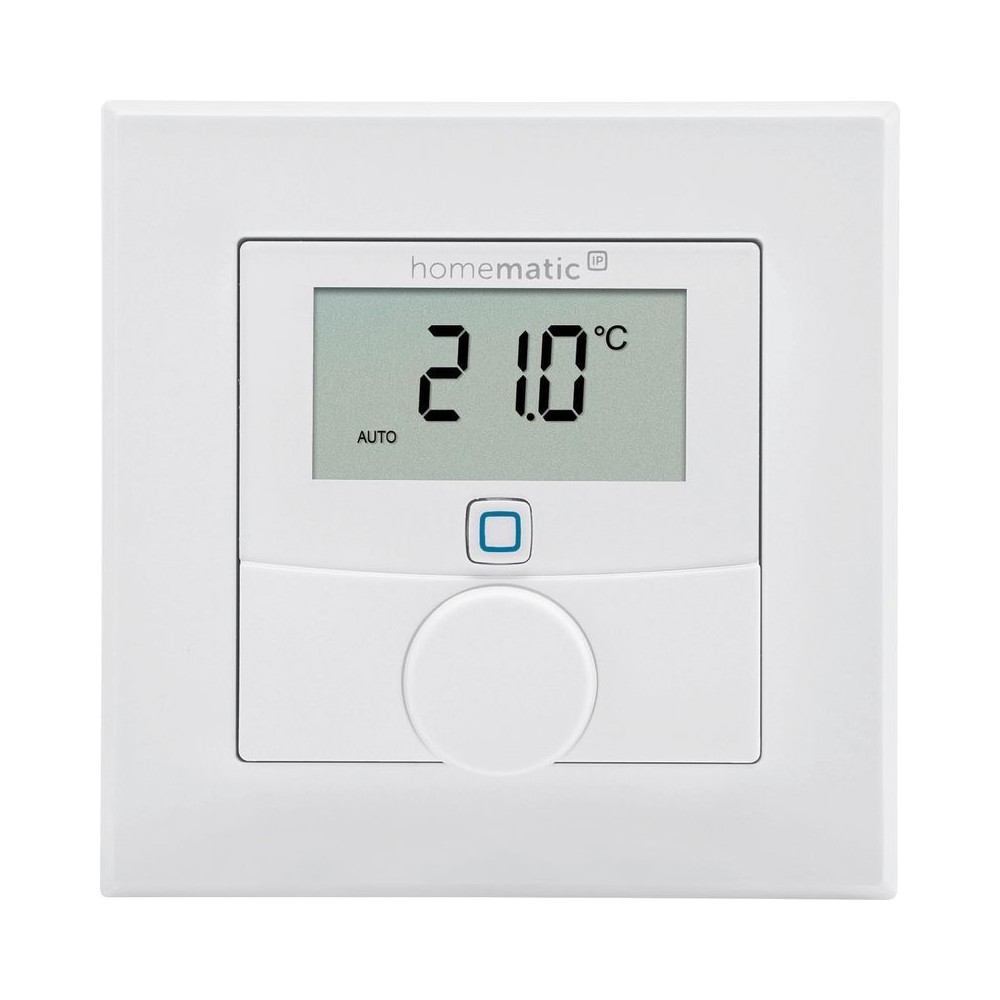

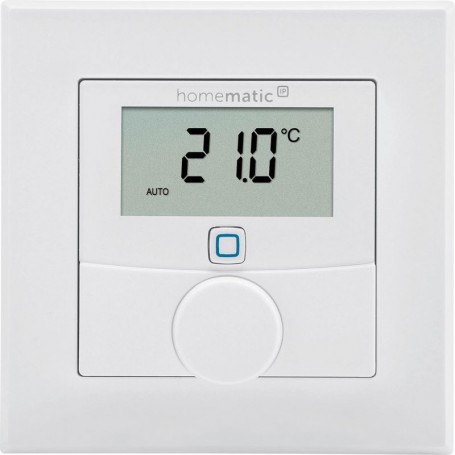

Homematic IP Wired wall thermostat with humidity sensor

Homematic IP Wired  wall thermostat with humidity sensor #153473A0

The Homematic IP Wired Wall Thermostat with humidity sensor enables time-controlled regulation of the room temperature in conjunction with Homematic IP wireless and wired underfloor heating actuators.

With the Homematic IP Wired Wall Thermostat, the room temperature can be conveniently and precisely controlled and the air humidity can be determined. In conjunction with Homematic IP underfloor heating actuators or Homematic IP switch actuators, individual temperature profiles with up to 13 changes per day can be created in 3 or 6 adjustable heating profiles. The desired temperature can be set in 0.5°C increments directly on the device or via the free app using the control dial. The target and actual temperature and humidity are shown on a large LC display with white backlighting. Thanks to the direct bus connection, the power supply and communication take place directly via the Homematic IP Wired system. As the Wired wall thermostat is pre-wired via a mounting plate using a push-in terminal, installation in a flush-mounted box is particularly easy. The actual control unit is then simply plugged onto the mounting plate. Of course, the Wired wall thermostat also fits into the popular 55 mm frame size, which enables uncomplicated integration into single and multiple frames from leading switch manufacturers (Berker, Busch-Jaeger, GIRA, Merten, JUNG, Kopp, ELSO).

A Homematic IP Wired Access Point is required to operate the sensor unit in the wired system. The Wired system can be controlled via the CCU3 central control unit, via many partner solutions and in future also via the Homematic IP Cloud service. If required, for example on the building site, commissioning and configuration can also be carried out directly on the Wired wall thermostat, i.e. without a central control unit or access point. The Wired wall thermostat is not designed for operation with wireless radiator thermostats; the range offers various wireless sensors for this purpose.

Further product information can be found at www.homematic-ip.com. A detailed user manual for the Homematic IP system can be found in the download area.

Product features

1. determines the temperature and humidity indoors, displays them on an illuminated LC display and enables individual temperature profiles with up to 13 changes per day in 3 or 6 adjustable heating profiles (3x heating/ 3x cooling).

2. convenient and precise control of Homematic IP wireless and wired underfloor heating actuators as well as electric radiators in combination with Homematic IP switching actuators (a wireless sensor is required for wireless radiator thermostats).

3. reliable power supply and communication via the Homematic IP Wired bus.

4. integration in 55 mm single or multiple frames from leading switch manufacturers (Berker, Busch-Jaeger, GIRA, Merten, JUNG, Kopp, ELSO) possible.

5. commissioning and configuration of the underfloor heating control possible directly on the Wired wall thermostat (without CCU3 central control unit or Access Point).
