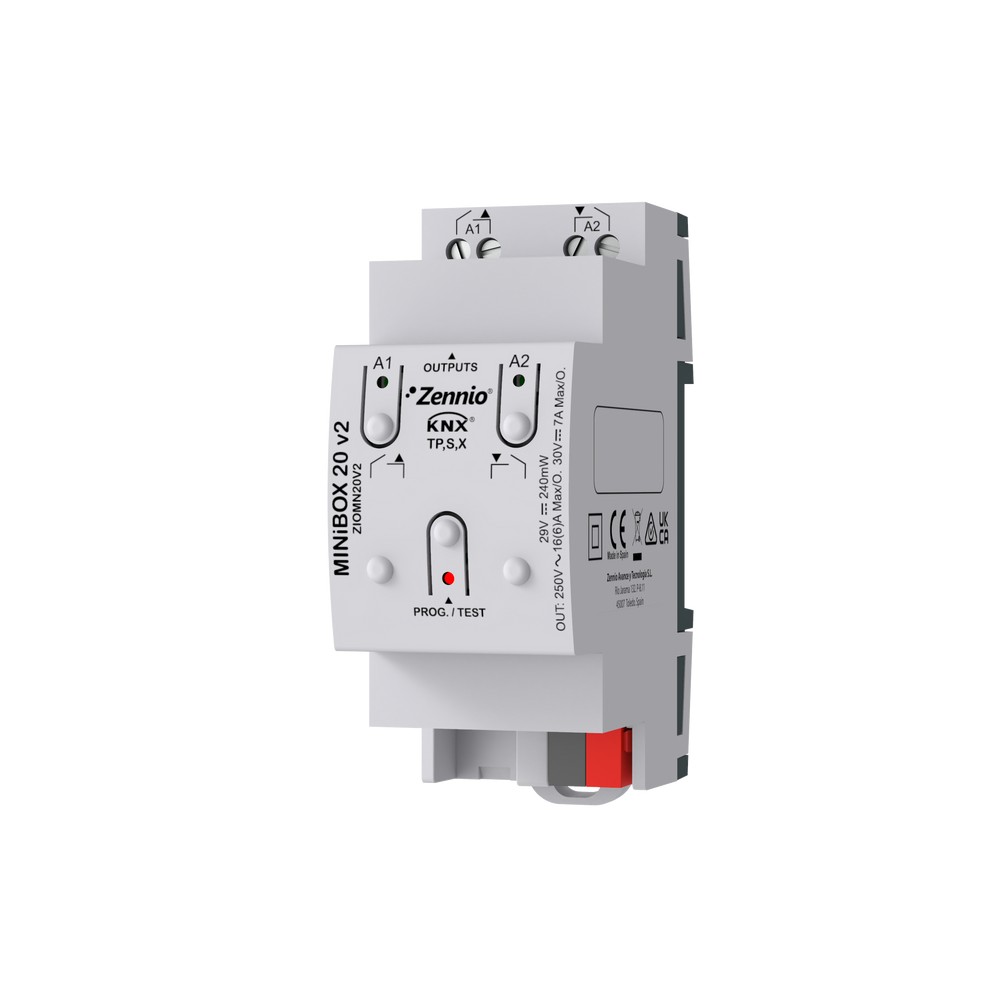

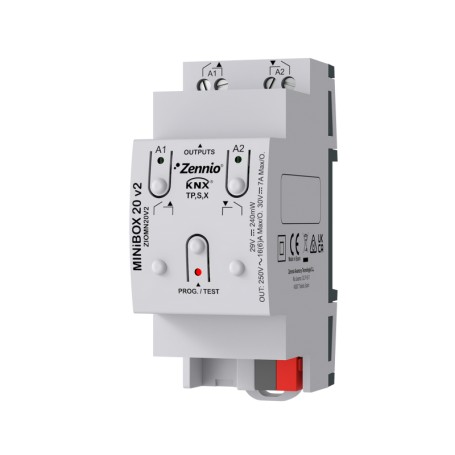

Zennio ZIOMN20V2, multifunction actuator, 2 outputs (16A), 2HP, logic module

Product Name: MINiBOX 20 v2

Manufacturer: Zennio

Manufacturer-Nr.: ZIOMN20V2

Reference: 030300ZIOMN20V2

Condition: New

Zennio multifunctional actuator, supported with KNX Secure, for top-hat rail mounting (2 TE) with 2 outputs (16 A C-load) that enable diverse configurations, blind channels and individual outputs. Manual operation possible via housing buttons. Logic module integrated.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	67.00 Millimeter
Mounting options	DIN-Rail mounting
External power supply	Aucun requis
Width	90.00 Millimeter
Horizontal pitch (HP)	2.0000
Portection rating	IP20
Height	36.00 Millimeter
Voltage (typical)	29.00 Volt
Input type	Keine
Min. ambient temperature	0.00 Celsius
Max. ambient temperature	55.00 Celsius
Voltage Range (Min.)	21.00 Volt
Number of inputs	0.0000
Voltage Range (Max.)	31.00 Volt
Output type	digital, analog
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	2.0000
Power consumption (W)	0.00 Watt
Output Current	0.00 Ampere
Output Power	0.00 Watt
Actuator Type	Multifunction Actuator
Operation humidity	5 to 95% RH (without condensation)
Bus system	KNX TP (Twisted Pair)
Connection Type	KNX bus terminal + screw terminal
KNX Secure	Yes
