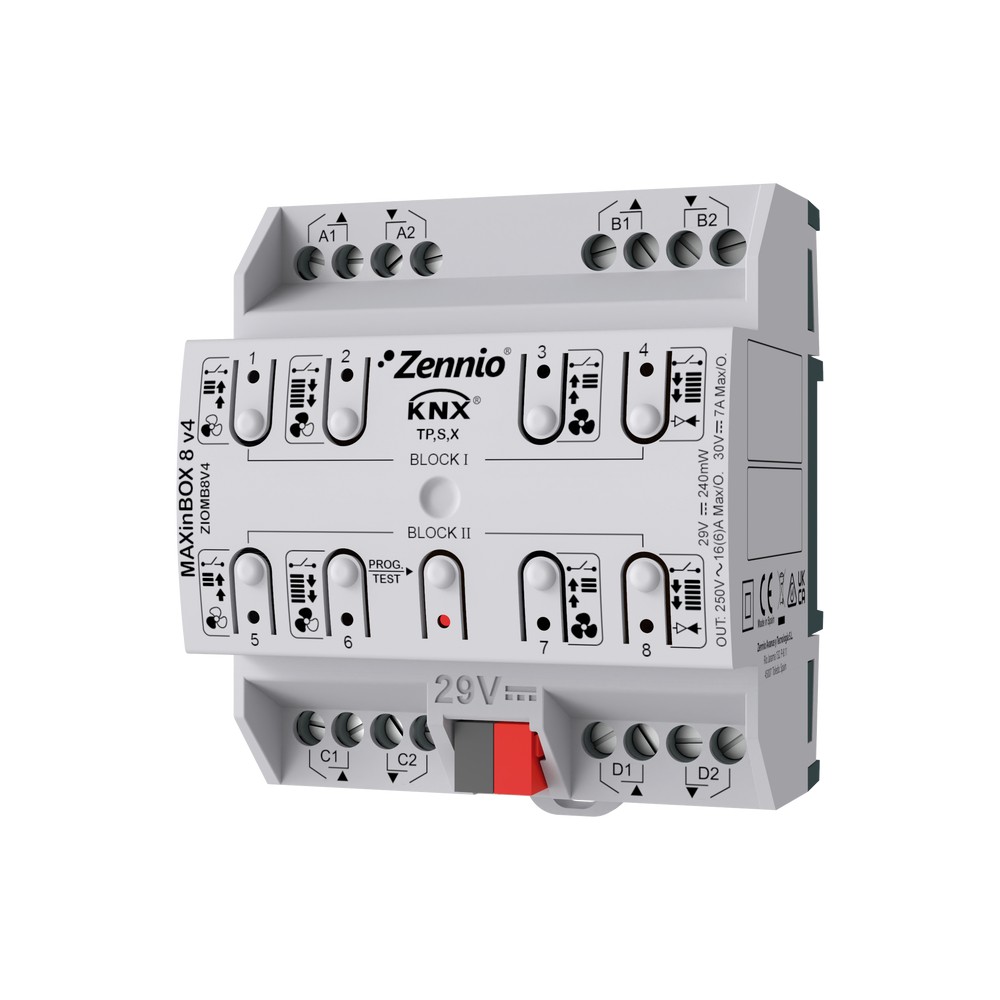

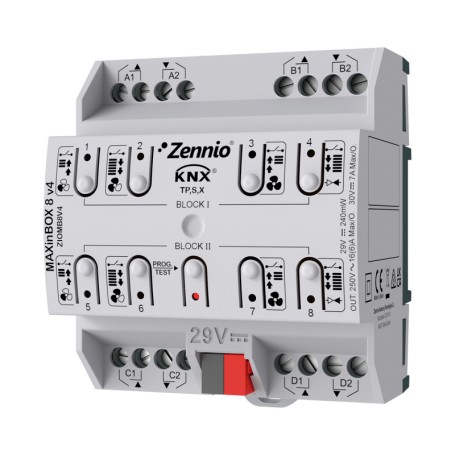

Zennio ZIOMB8V4, Multifunction actuator, 8x16A outputs, IP20, KNX Secure

Product Name: MAXinBOX 8 v4

Manufacturer: Zennio

Manufacturer-Nr.: ZIOMB8V4

Reference: B-003-150279

GTIN: 8411080789167

Condition: New

The MAXinBOX 8 v4 is a multi-function actuator for mounting as a REG device, which enables the configuration of up to 4 blind channels, 8 individual outputs, as blocks of 4 outputs each for 2-pipe fan coil actuators.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	67.00 Millimeter
Mounting options	DIN-Rail mounting
Horizontal pitch (HP)	4.5000
External power supply	Aucun requis
Width	90.00 Millimeter
Portection rating	IP20
Height	79.00 Millimeter
Voltage (typical)	29.00 Volt
Min. ambient temperature	0.00 Celsius
Voltage Range (Min.)	21.00 Volt
Max. ambient temperature	55.00 Celsius
Number of inputs	0.0000
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	8.0000
Power consumption (W)	0.12 Watt
Output Current	0.00 Ampere
Output Power	0.00 Watt
Actuator Type	Multifunction Actuator
Operation humidity	5 to 95% RH (without condensation)
Recommended cable section	0.00 Square_millimeter
Bus system	KNX TP (Twisted Pair)
Connection Type	KNX bus terminal + screw terminal
KNX Secure	Yes
