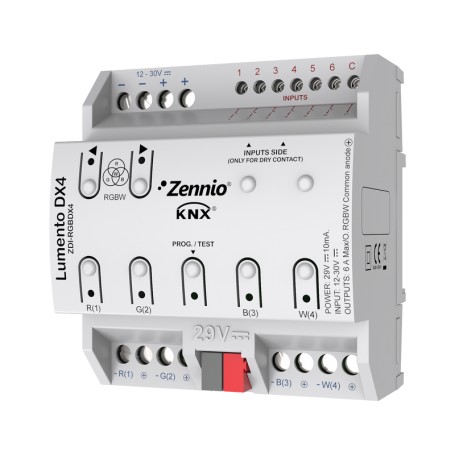

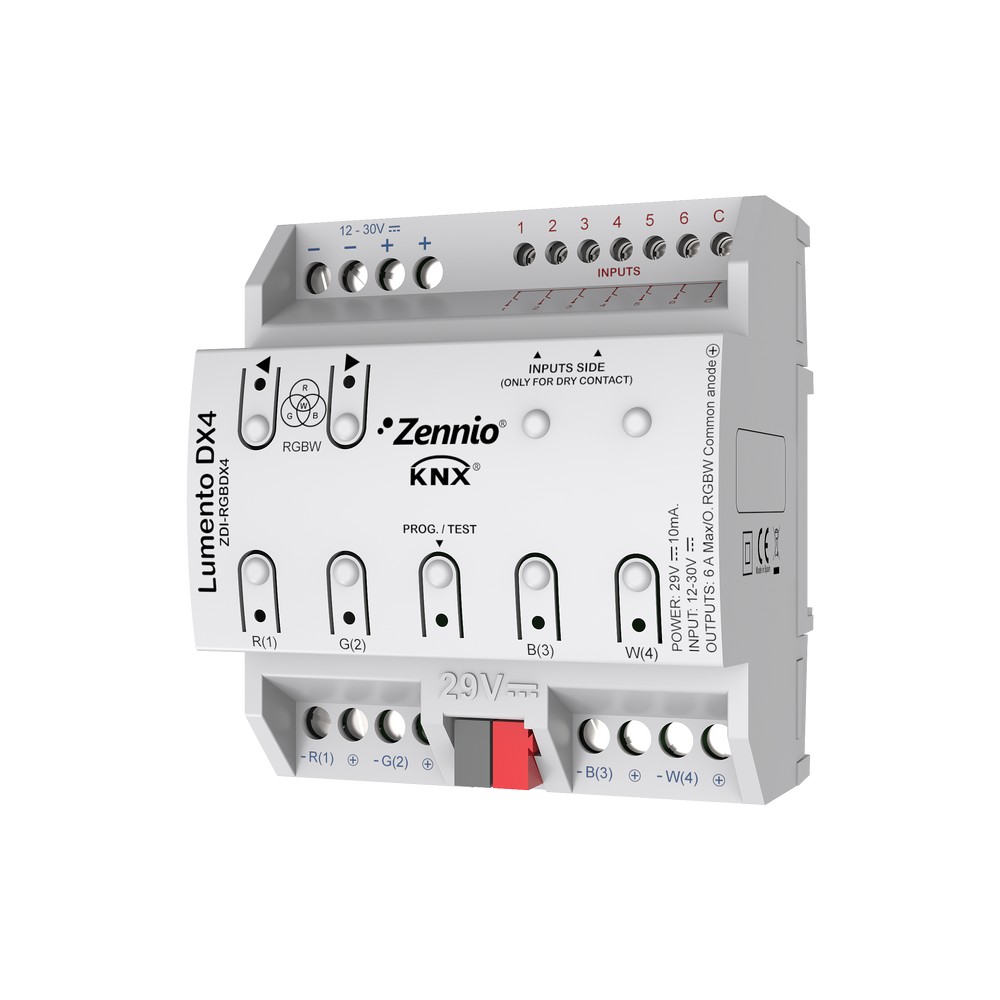

Zennio ZDI-RGBDX4, KNX Dimmer LED, Lumento DX4, RGBW, Voltage, 6A

Lumento DX4

Zennio

ZDI-RGBDX4

030300ZDIRGBDX4

8411080790842

New

Lumento DX4. LED dimmer with 4 channels (RGBW or single channels) oriented to LED technology with constant voltage regulation and DIN rail mounting (4,5 units). The dimming channels can be configured as 4 independent channels, 1 RGBW channel or 1 RGB channel + 1 individual channel.

More details

Prices are only visible for registered customers. Create an account now.

Customer ratings and reviews

Nobody has posted a review yet

Data sheet

Mounting options DIN-Rail mounting
Length 97.00 Millimeter
Portection rating IP20
External power supply 12VDC - 30VDC (Required voltage of the light source)
Width 97.00 Millimeter
Horizontal pitch (HP) 4.5000
Voltage (typical) 29.00 Volt
Height 95.00 Millimeter
Input type analog/digital
Min. ambient temperature 0.00 Celsius
Max. ambient temperature 45.00 Celsius
Voltage Range (Min.) 21.00 Volt
Number of inputs 6.0000
Voltage Range (Max.) 31.00 Volt
Output type analog
Résponse devant une récupération de perte d'alimentation KNX Data backup
Number of outputs 4.0000
Power consumption (W) 0.19 Watt
Output Current 6.00 Ampere
Output Power 0.00 Watt
Actuator Type Dimming Actuator
Operation humidity 5 to 95% RH (without condensation)
Recommended cable section 4.00 Square_millimeter
Connection Type screwed
KNX Secure No

More info

Lumento DX4. LED dimmer with 4 channels (RGBW or single channels) oriented to LED technology with constant voltage regulation and DIN rail mounting (4,5 units). The dimming channels can be configured as 4 independent channels, 1 RGBW channel or 1 RGB channel + 1 individual channel. It includes 6 analog-digital multifunction inputs that can be configured as binary inputs for sensors and potential-free push buttons or as motion sensor inputs. It has manual test buttons to check the channels functioning.  Power supply: 12-30VDC. Maximum current per channel: 6A.

Accessories: motion sensor.
