5503A

BS GmbH 5503A, Wall distributor, indoor, outdoor, IP44

Manufacturer:	Floor sockets system technology
Product no.:	B-028-149647
GTIN/EAN:	0706332903681

Model:
2 x Type 13, 1 x RJ45, 2-fold

Available, Delivery time: 10 days

Model:
3 x Type 13

Available, Delivery time: 10 days

Model

2 x Type 13, 1 x RJ45, 2-fold

3 x Type 13

Available, Delivery time: 10 days

The product has been removed from the comparison list.

The product has been added to the comparison list.

There are too many products in the comparison list.

5503A has been added to the cart has been removed from the cart

Cart

Produktinformationen

Description

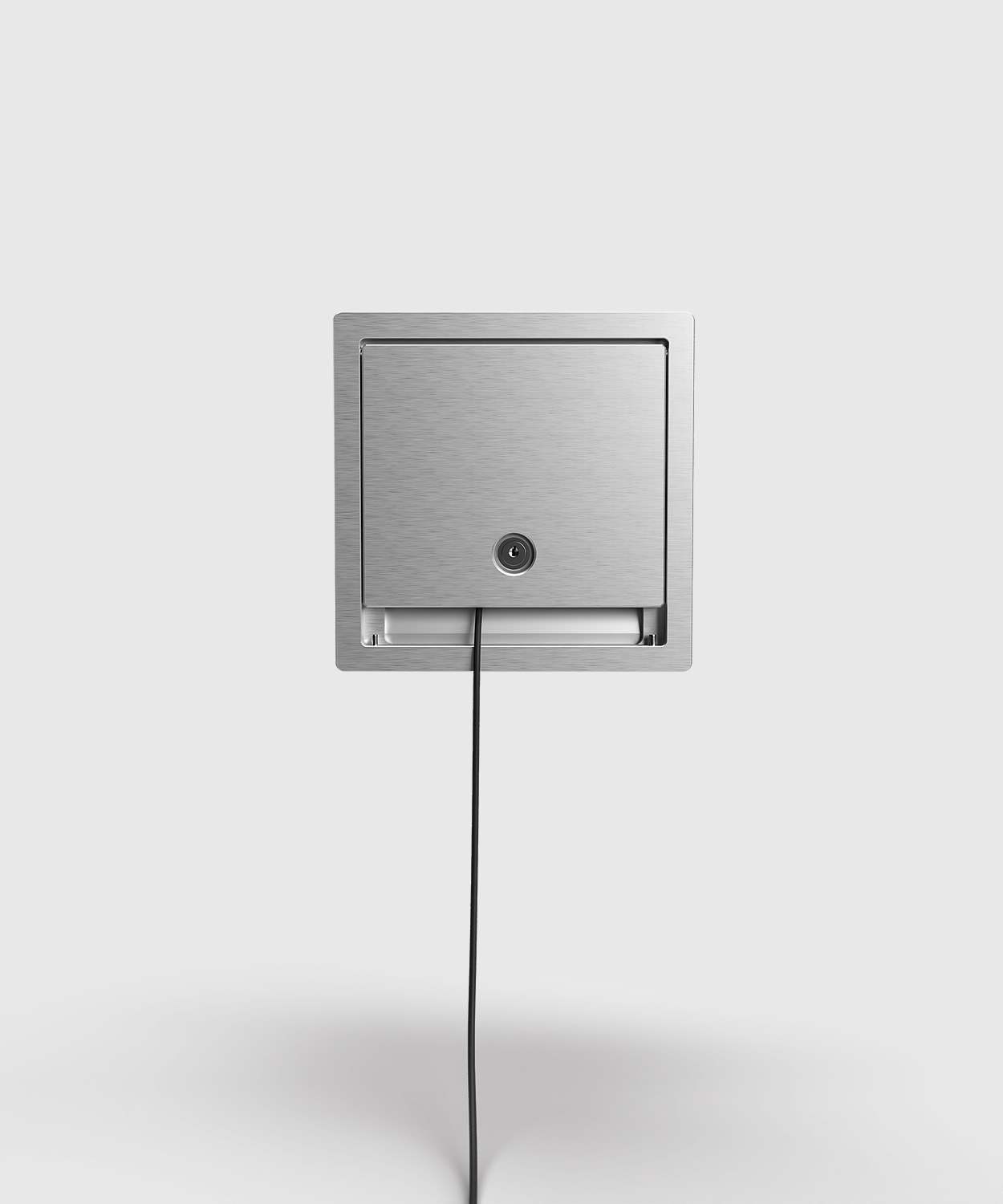

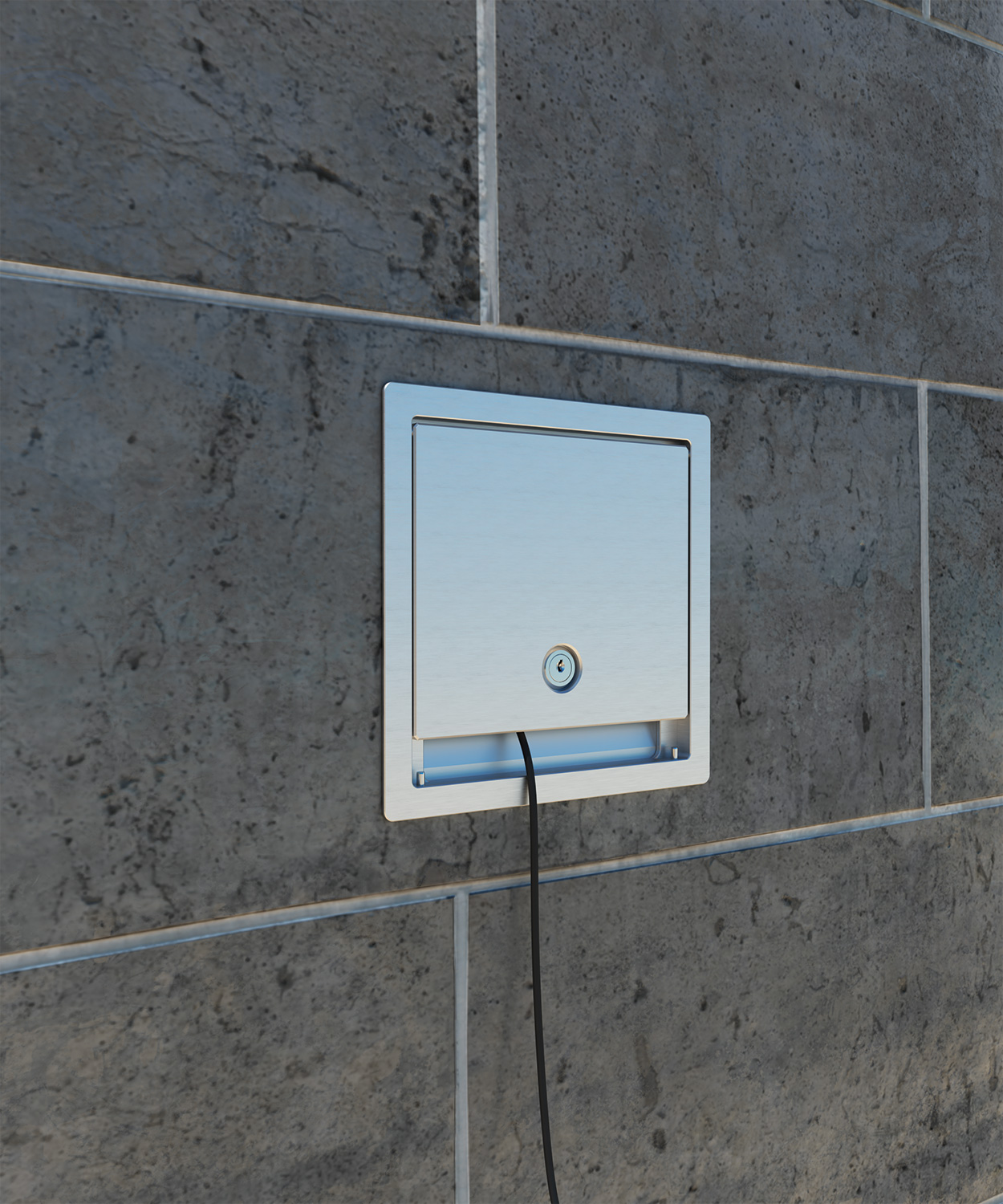

Wall-mounted distributor 5503A with 3 slots, splash-proof, protection class IP44. The receptacle box is made of sendzimir-galvanised sheet steel. The frame and the lid are made of solid aluminium and anodised in natural aluminium. The lid is secured with a lock and closes even when standard plugs are inserted in straight or angled form. Ideal for sports halls: tested for unrestricted ball impact resistance according to DIN 18032-3:1997-04. Further equipment variants and colours on request.

Show more Show less

Variants Properties

Model:	2 x Type 13, 1 x RJ45, 2-fold

Technical data

Width:	200 mm
Height:	82 mm
Length:	200 mm
Weight:	3 kg
Application:	Indoor, Outdoor
Color:	Gray
Country of Origin:	Germany
Height:	82 mm
Height adjustable:	No
Material:	Aluminium, Sheet steel
Mounting options:	flush-mounting, wall mounting
Number of connections:	3
Portection rating:	IP44
Shape:	square
Socket type:	Wall Distributor / Wall Socket
Type of installation:	Flush mount
Weight capacity:	not walkable
