7702A
BS GmbH 7702A, Floor socket, outdoor, walk-in, IP67
| Manufacturer: | Bodensteckdosen Systemtechnik |
|---|---|
| Manufacturer no.: | 7702A1-CH |
| Product no.: | B-028-149710 |
| GTIN/EAN: | 0706332904008 |
Available, Delivery time: 10 days
Product information
Description

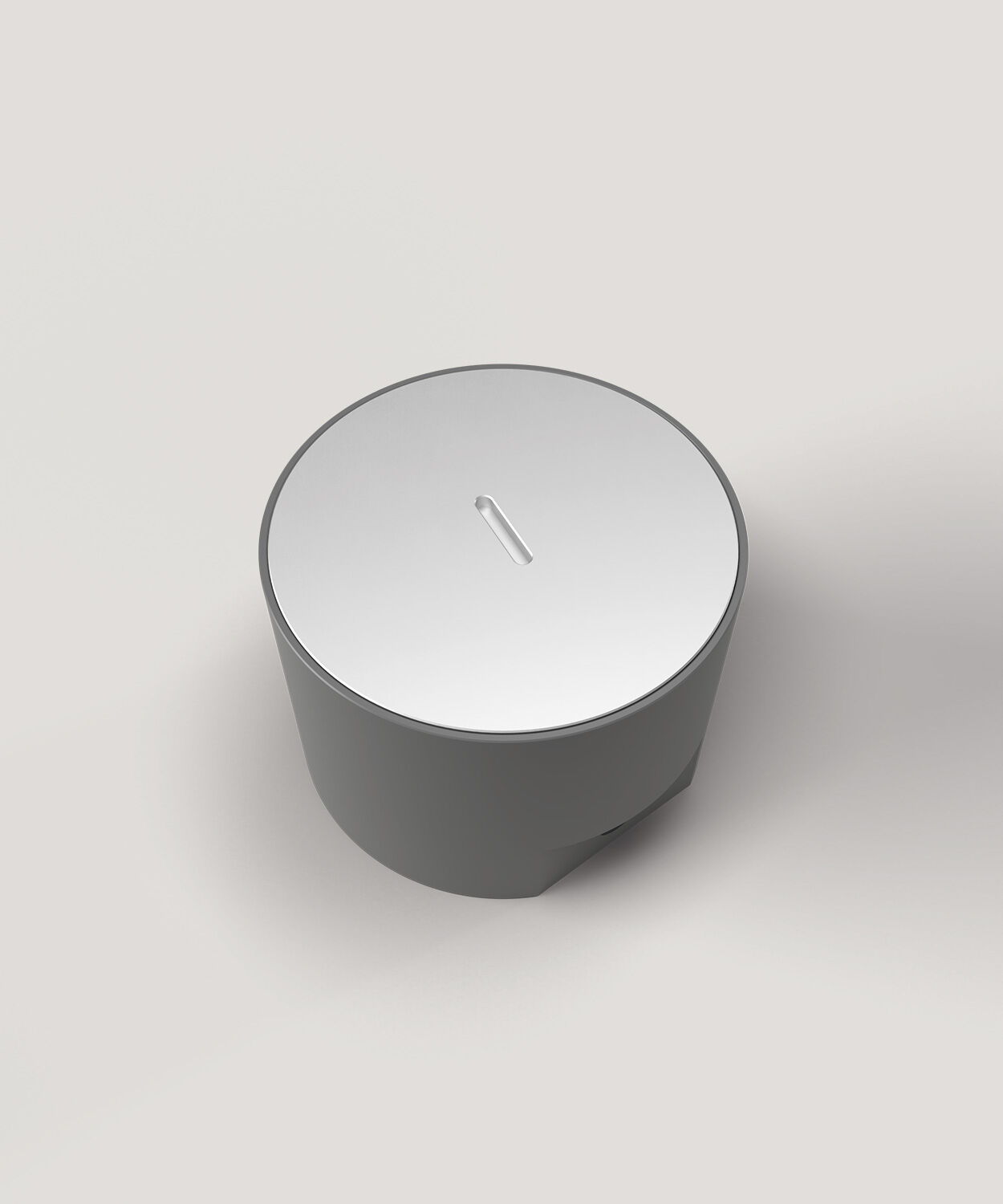

Round floor socket 7702A with aluminium screw cover and 2 slots. The floor socket is made of solid grey PVC and can be used both outdoors and indoors. When closed, it is waterproof. The floor socket is opened and closed with a special key. Further equipment variants are available on request.
Show more
Show less
Variants Properties
| Model: | 1 x Type 13, 1 x RJ45, 2-fold |
|---|
Show more
Show less
Technical data
| Height: | 120 mm |
|---|---|
| Weight: | 2.7 kg |
| Application: | Outdoor |
| Color: | Gray |
| Country of Origin: | Germany |
| Diameter: | 170 mm |
| Height: | 120 mm |
| Height adjustable: | No |
| Material: | Aluminium, Rigid-PVC |
| Mounting options: | flush-mounting |
| Number of connections: | 2 |
| Portection rating: | IP67 |
| Shape: | round |
| Socket type: | Floor socket |
| Type of installation: | Subfloor |
| Weight capacity: | walkable |
