8920B

BS GmbH 8920B, floor tank, indoor, walk-in, IP10

Manufacturer:	Floor sockets system technology
Product no.:	B-028-149840
GTIN/EAN:	0706332905135

Model:
20 x Type 13

Available, Delivery time: 10 days

Model:
10 x Type 13, 10 x RJ45, 2-fold

Available, Delivery time: 10 days

Model

10 x Type 13, 10 x RJ45, 2-fold

20 x Type 13

Available, Delivery time: 10 days

The product has been removed from the comparison list.

The product has been added to the comparison list.

There are too many products in the comparison list.

8920B has been added to the cart has been removed from the cart

Cart

Produktinformationen

Description

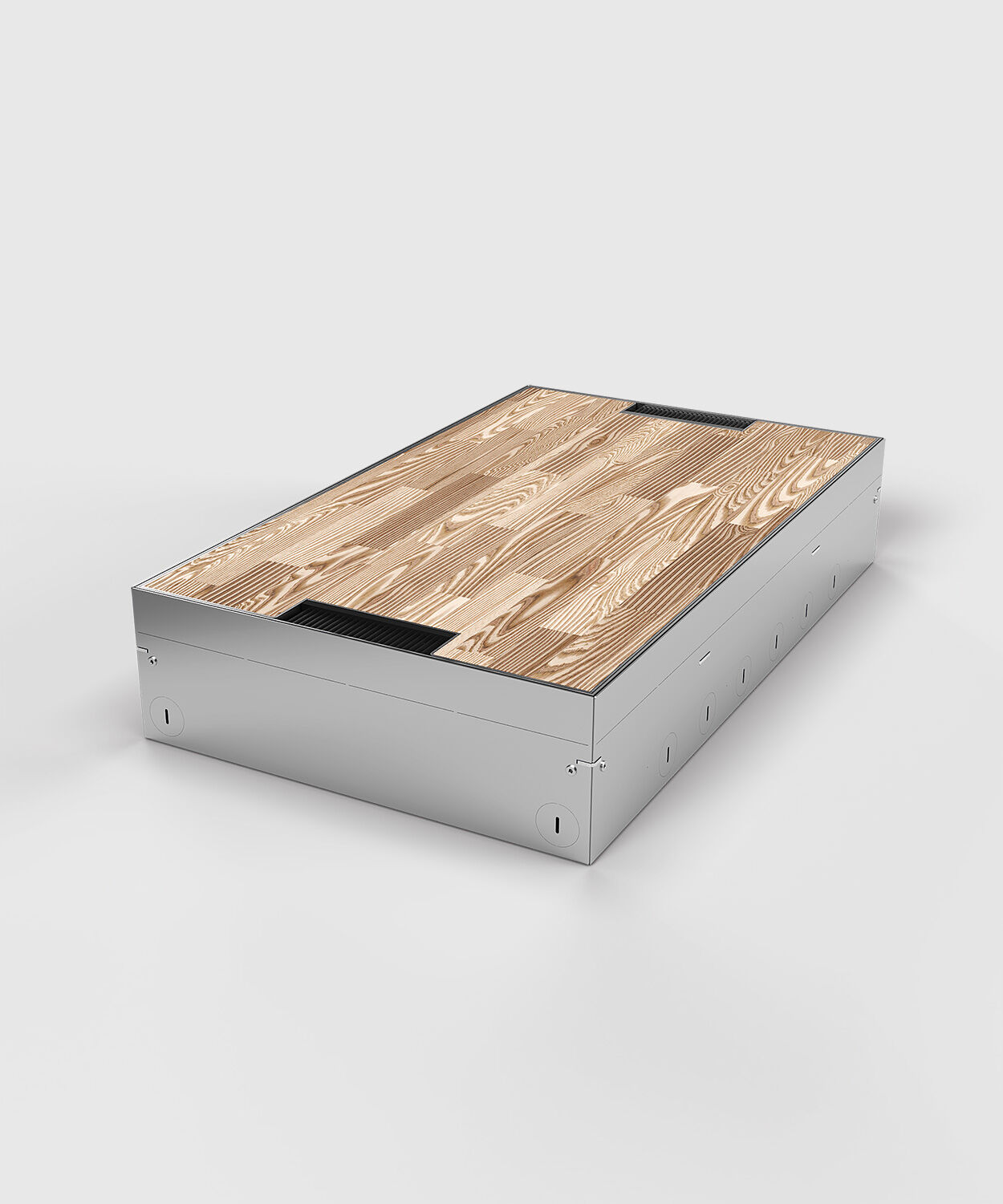

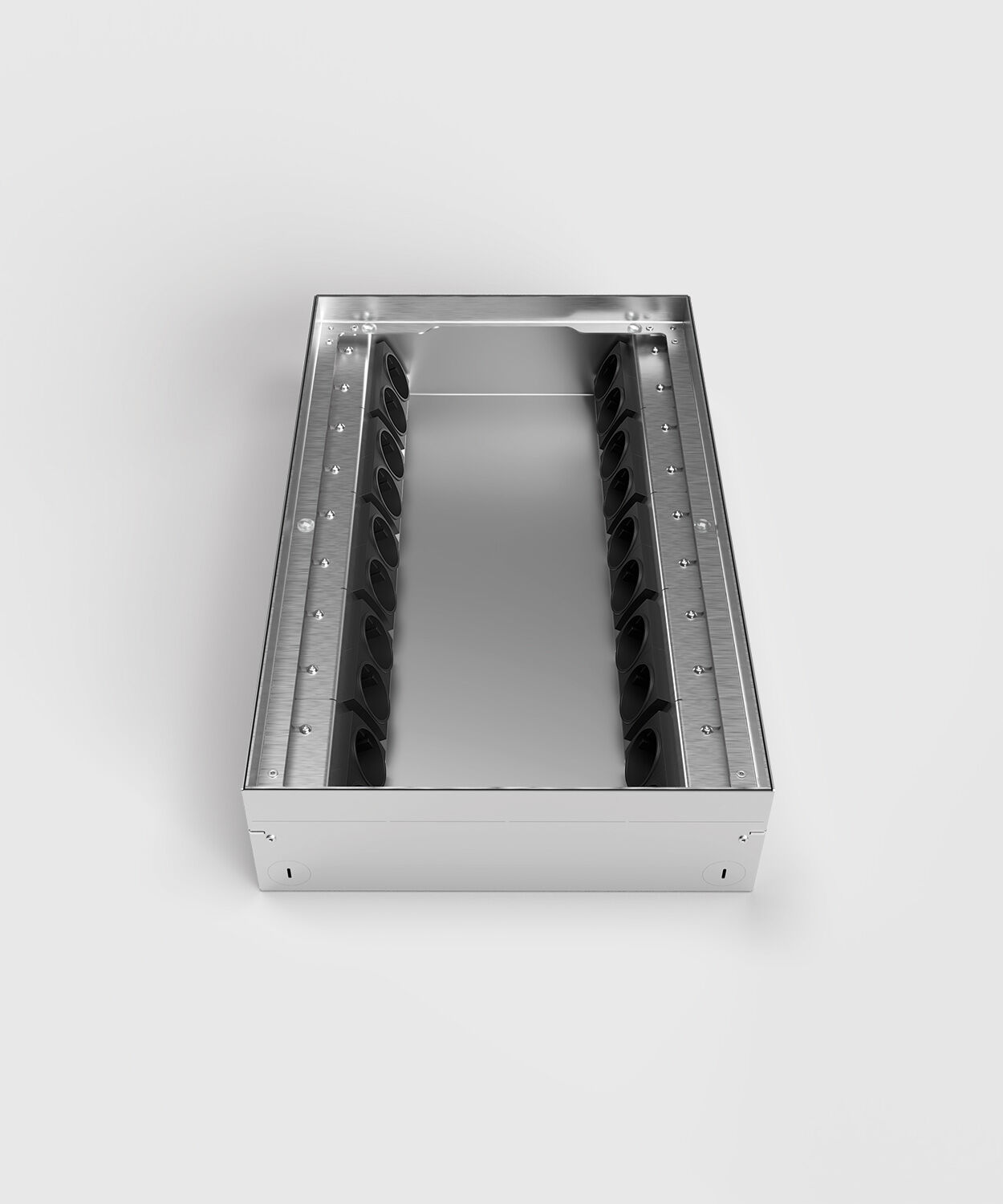

Height-adjustable floor tank 8920B with 20 slots. The receptacle box is made of sendzimir-galvanised sheet steel, the frame and the lid of stainless steel. Floor coverings such as carpet, parquet, laminate etc. with a thickness of 15 mm can be inserted into the removable lid. The lid has a cable outlet and closes even when standard plugs are inserted in straight or angled form. Other fitting variants are available on request.

Show more Show less

Variants Properties

Model:	20 x Type 13

Technical data

Width:	305 mm
Height:	90 mm
Length:	505 mm
Weight:	10 kg
Application:	Dry to moist maintained, Indoor
Color:	Stainless steel
Country of Origin:	Germany
Height:	90 mm
Height adjustable:	Yes
Material:	Aluminium, Sheet steel, Stainless steel
Mounting options:	flush-mounting
Number of connections:	20
Shape:	rectangular
Socket type:	Floor Box
Type of installation:	Subfloor
Weight capacity:	walkable
