CONO alto M
NewTec CONO alto M, Ceiling loudspeaker, 4 Ohm, 50W
| Manufacturer: | Newtec |
|---|---|
| Product no.: | 14141073182 |
Available, Delivery time: 3 weeks
Produktinformationen
Description
Speaker for ceiling-mounting installation with an elegant design and a large sound distribution.
Show more
Show less
Variants Properties
| Color: | White |
|---|
Technical data
| Height: | 25 mm |
|---|---|
| Weight: | 900 kg |
| Connection Type: | Screw terminals gold-plated |
| Country of Origin: | Italy |
| Diameter: | 180 mm |
| Height: | 25 mm |
| Housing: | plastic mounting |
| Nominal / music load capacity: | 50 W / 90 W |
| Principle: | One-way 360° loudspeaker |
| Speaker Type: | ceiling installation, wall mounting |
| Transmission frequency (Hz): | 95 - 21.000 Hz |
| ceiling cutout: | 130 mm |
| efficiency / characteristic sound pressure (1W/1m): | 85.5 dB |
| impedance: | 4 Ohm |
| installation depth: | 79.5 mm |
| maximum SPL: | 102.5 dB |
Show more
Show less
Downloads
Accessories
Complementary products
More information
Speaker for ceiling-mounting installation with an elegant design and a large sound distribution.

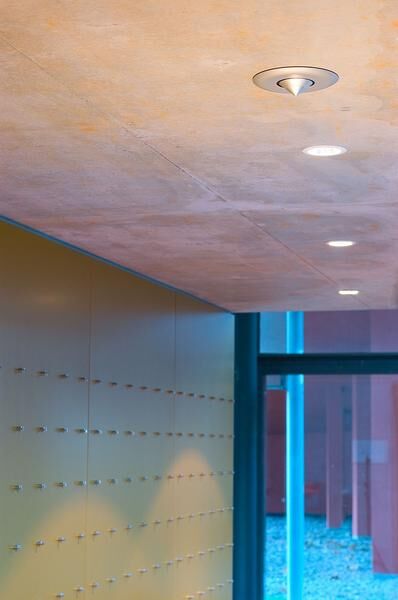

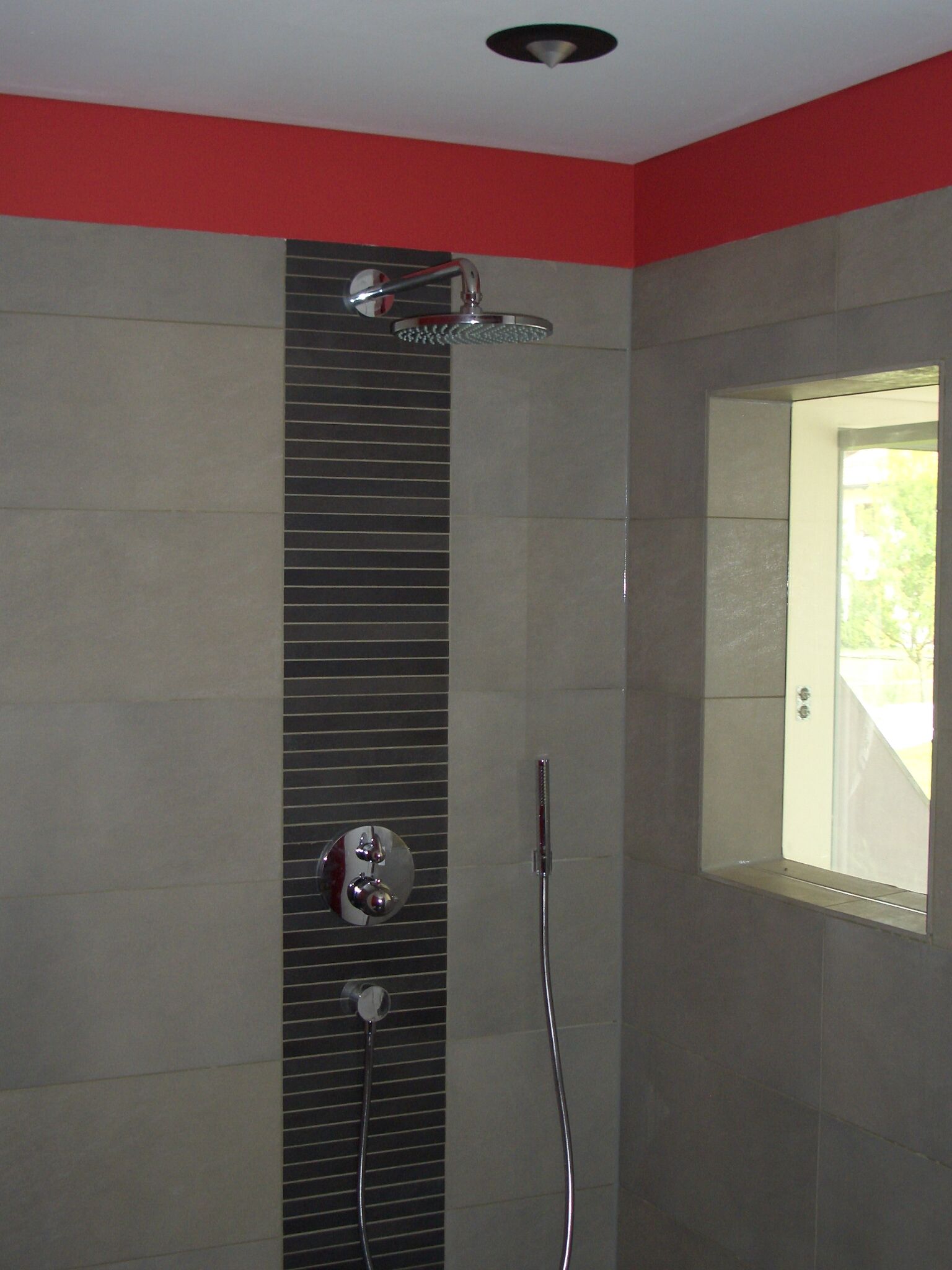

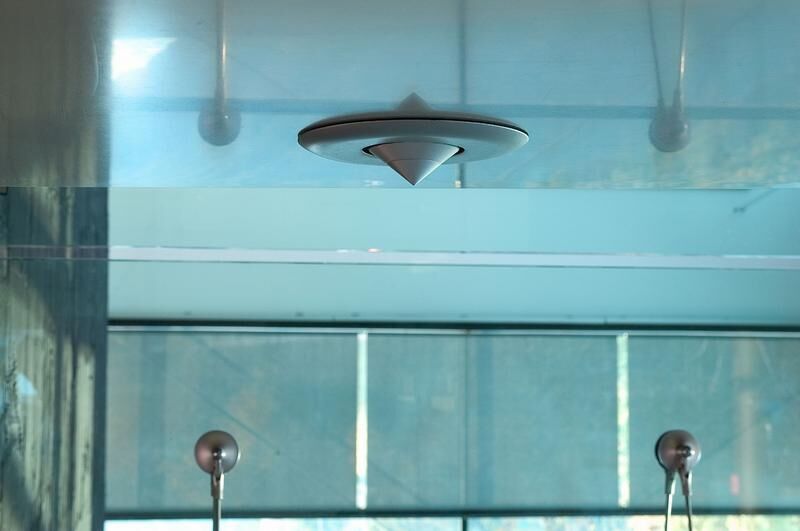

The ceiling mounting loudspeaker CONO alto is equipped with an extremely wide 360° sound distribution which guarantees a high-quality and accurate sound reproduction. It is distinguished by the simplest ceiling installation and an elegant design. The CONO alto is not recognisable as a conventional loudspeaker due to its unique appearance. It does not require any grille, ensuring therefore a clear and precise sound reproduction. Moreover, with a minimum installation depth of 43mm to 55mm, depending on the model, the insert is particularly suitable for very low ceiling construction. The ceiling cut-out is 130 mm.
