CONO canto V
NewTec CONO canto V, built-in speaker for busbars
| Manufacturer: | Newtec |
|---|---|
| Product no.: | 141410133532 |
Available, Delivery time: 2 weeks
Produktinformationen
Description
Conductor rail loudspeaker CONO canto
Show more
Show less
Variants Properties
| Color: | White |
|---|
Technical data
| Height: | 150 mm |
|---|---|
| Weight: | 1.5 kg |
| Connection Type: | Cable end sleeves, Standard 3-phase busbars |
| Country of Origin: | Italy |
| Diameter: | 134 mm |
| Height: | 150 mm |
| Housing: | plastic mounting |
| Nominal / music load capacity: | 2,5W - 5W - 10W - 20W adjustable |
| Principle: | One-way 360° loudspeaker |
| Speaker Type: | Rail mounting (light rail) |
| Transmission frequency (Hz): | 105 - 21.000 Hz |
| efficiency / characteristic sound pressure (1W/1m): | 86.2 dB |
| impedance: | 100 Volt / 1500 Ohm |
| maximum SPL: | 99.5 dB |
Show more
Show less
Downloads
Show more
Show less
Accessories
Complementary products
More information
Busbars Loudspeaker CONO canto
The high-quality busbar loudspeaker for perfect integration.

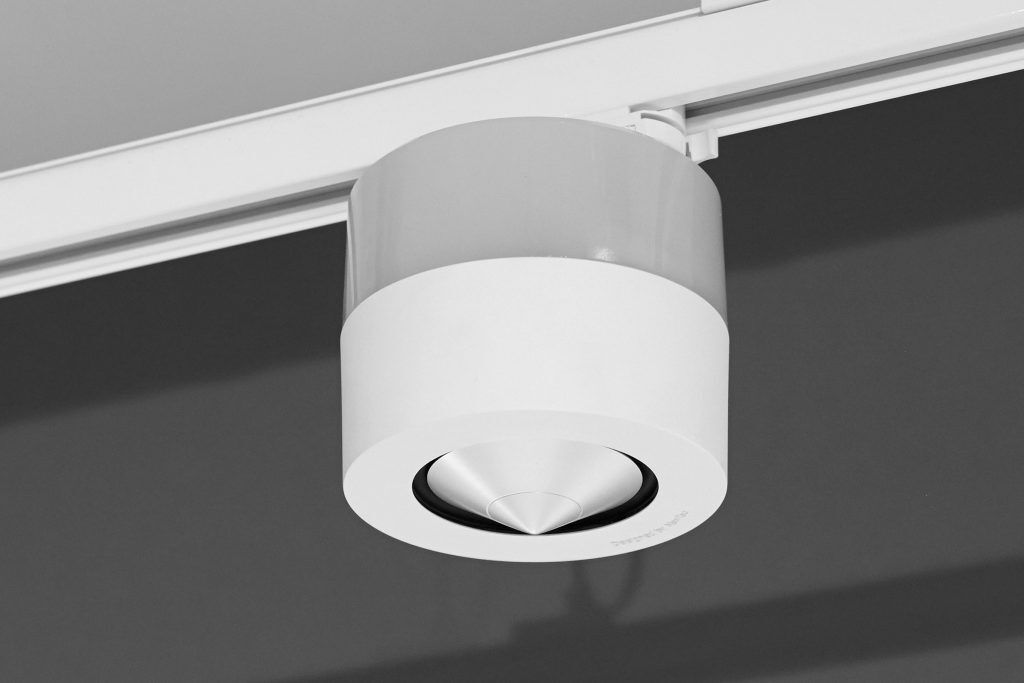

The CONO Canto busbar loudspeaker is equipped with a special connection for use in all commercially available 3-phase busbars, compatible with all Nordic Aluminium and Eutrac lightbars, as well as all other manufacturers who use this standard. No cable connections are visible in addition to the simple installation in the busbar. The speaker housing is made of recyclable high performance plastic and can be used directly next to large heat-generating light emitters. The special powder coating ensures a noble and scratch-resistant surface structure with a diameter of 135 mm and a height of 150 mm. The busbar loudspeakers are available as cable versions, for low impedance (HiFi systems) and 100 Volt ELA systems. For those who want it very easy, fast and without any cables, there are also our WiFi track loudspeakers available as wireless loudspeakers.her, 8 Ohm, 100W
