D2201V excluding housing

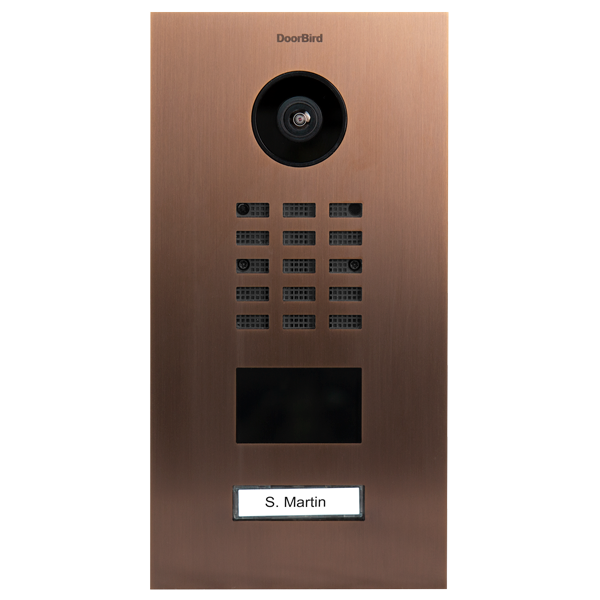

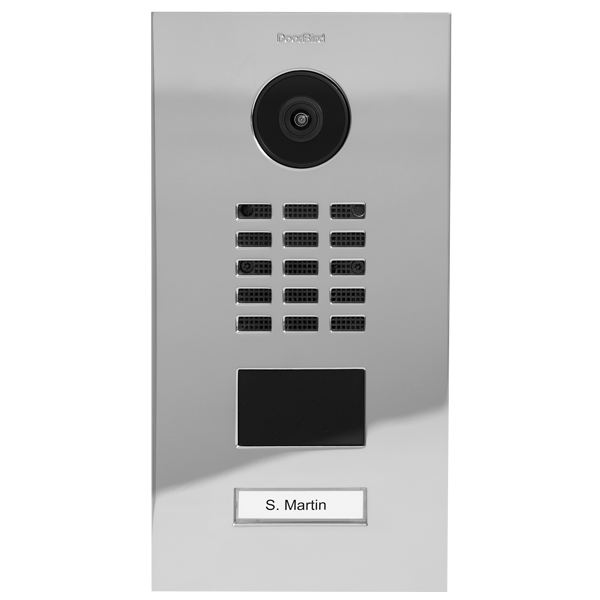

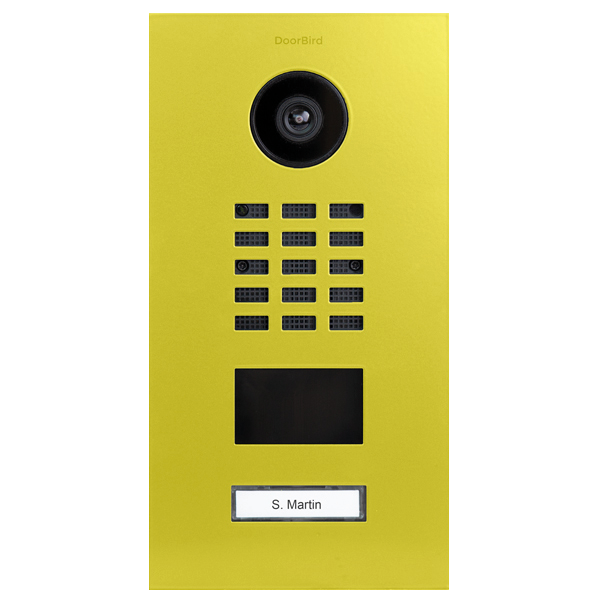

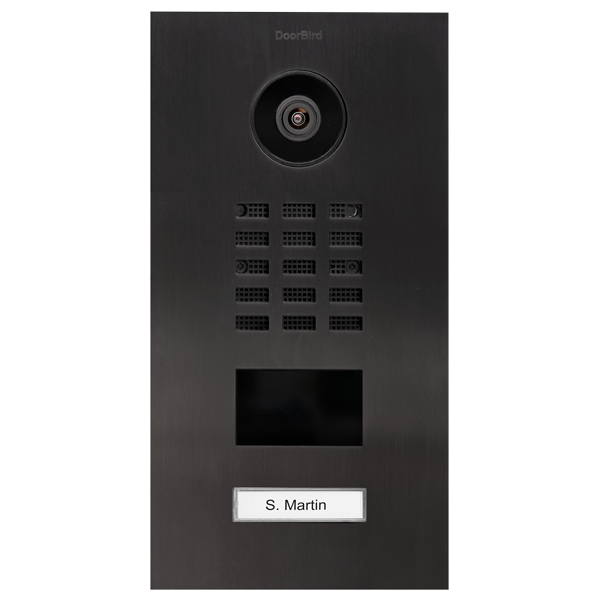

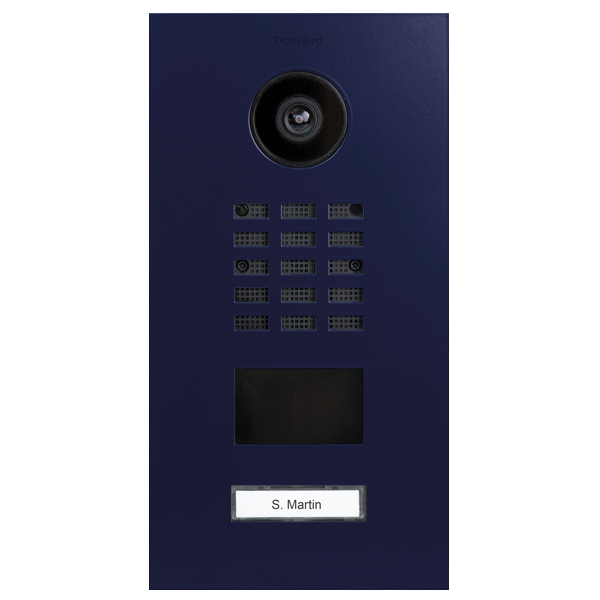

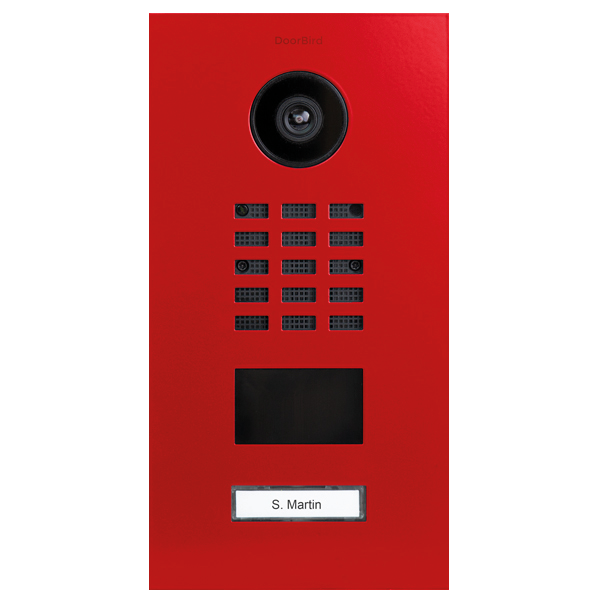

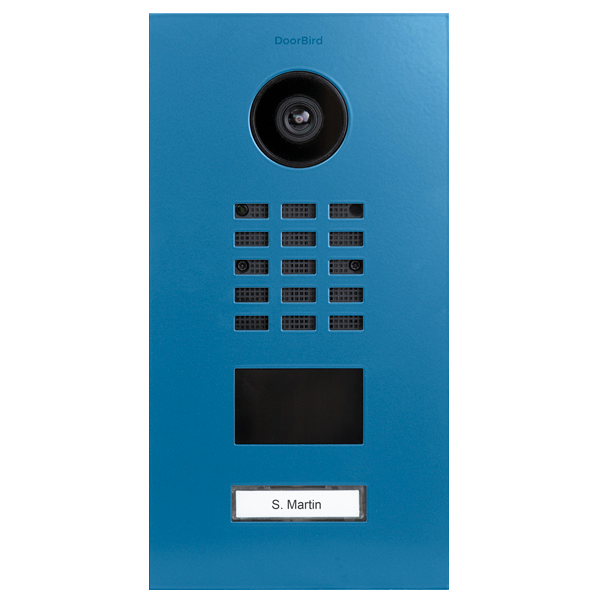

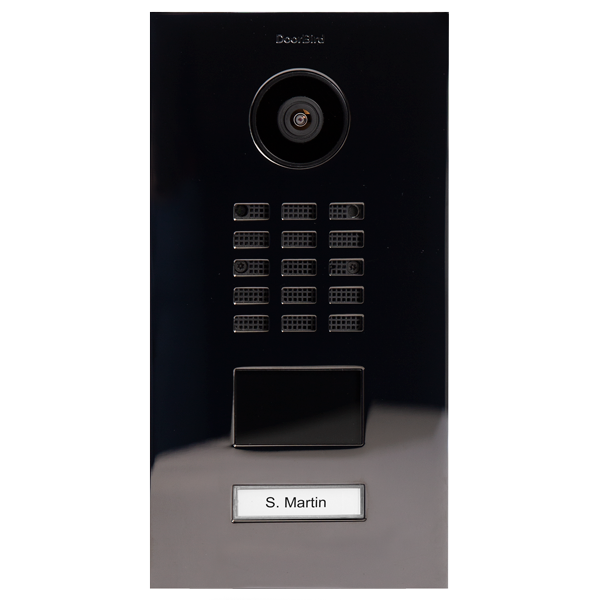

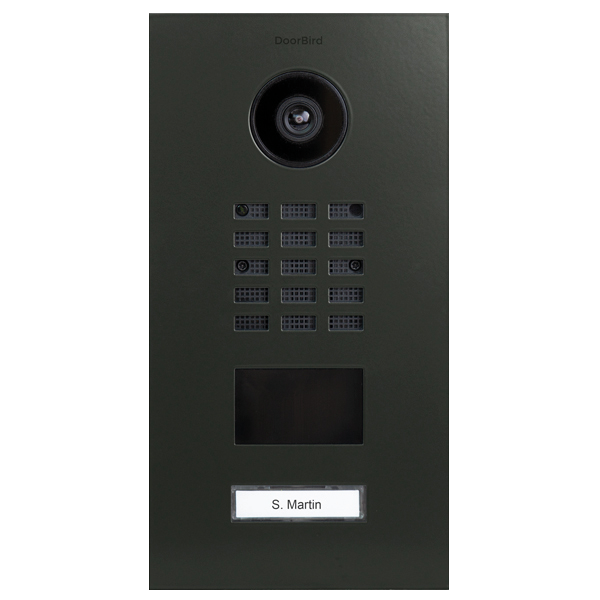

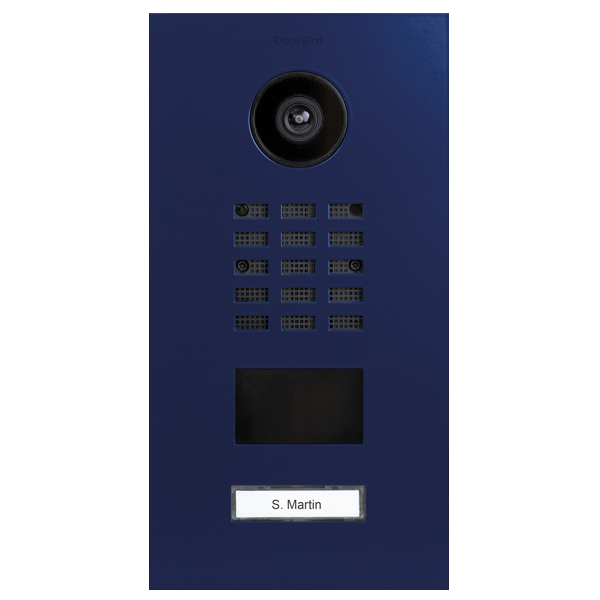

DoorBird D2201V, IP Video Door Station, 1 Call Button, 5 MP
| Manufacturer: | Doorbird |
|---|---|
| Manufacturer no.: | 429640614 |
| Product no.: | B-013-159323 |
Available, Delivery time: on request
Product information
Description
DoorBird D2201V is an IP video door station for single-family homes and commercial buildings with one unit. It combines a 5 MP HDR camera with an illuminated call button as well as RFID, Bluetooth and multiple interfaces for access control and building integration. Powered via PoE. Suitable for flush or surface mounting.
Show more
Show less
Variants Properties
| Color: | Grey / RAL 7023 |
|---|
Show more
Show less
Technical data
| Width: | 131 mm |
|---|---|
| Length: | 253 mm |
| Weight: | 0.817 kg |

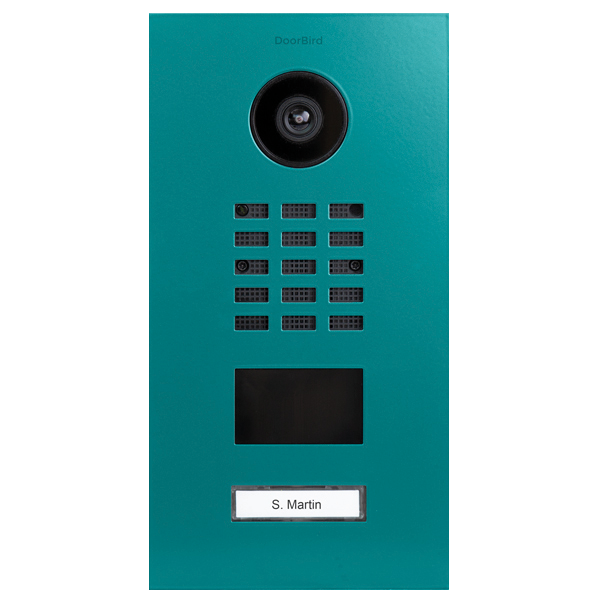

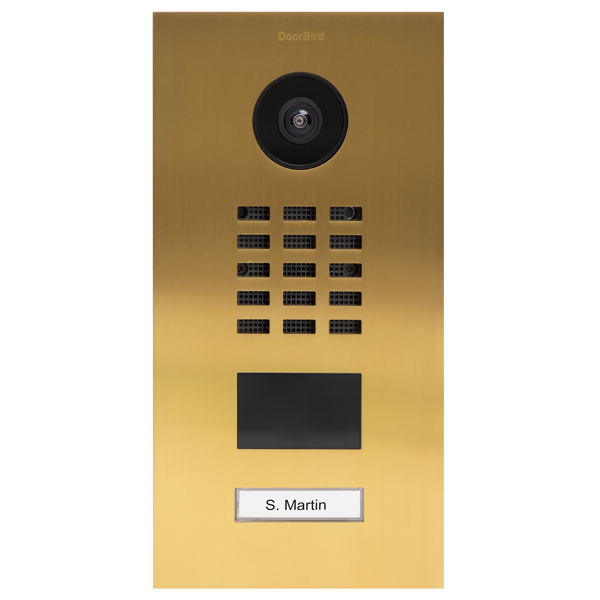

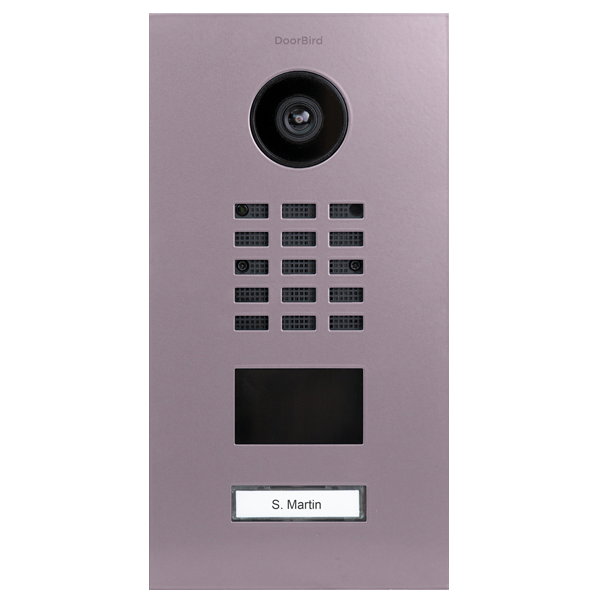

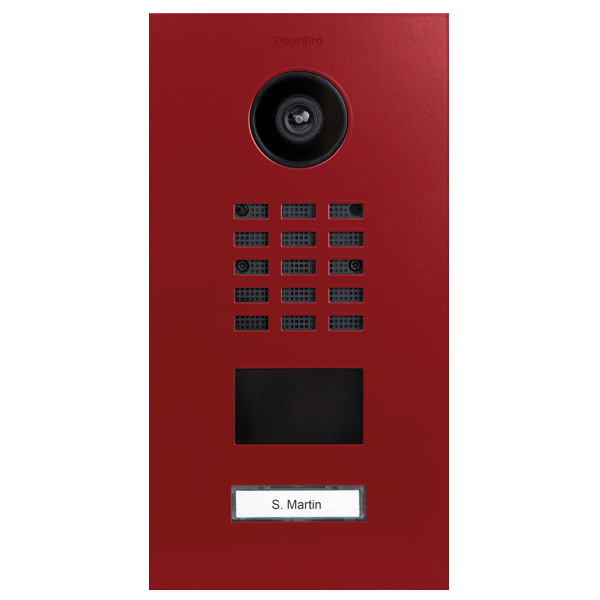

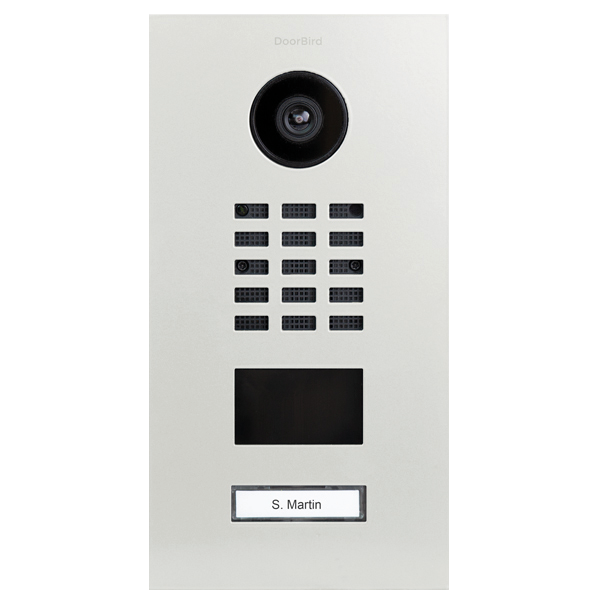

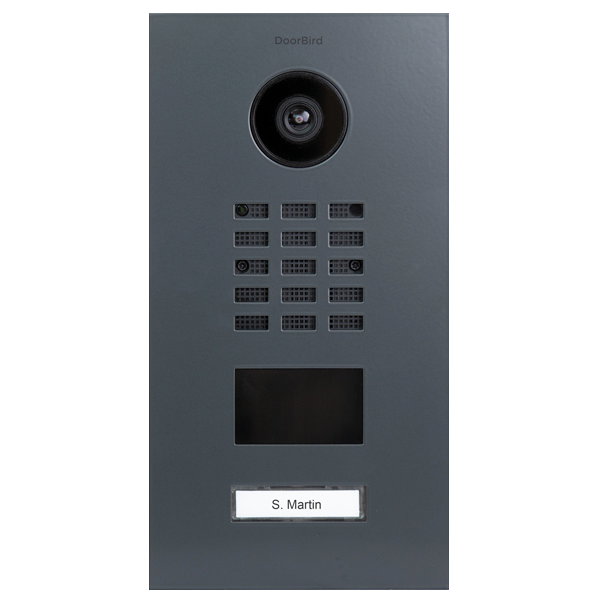

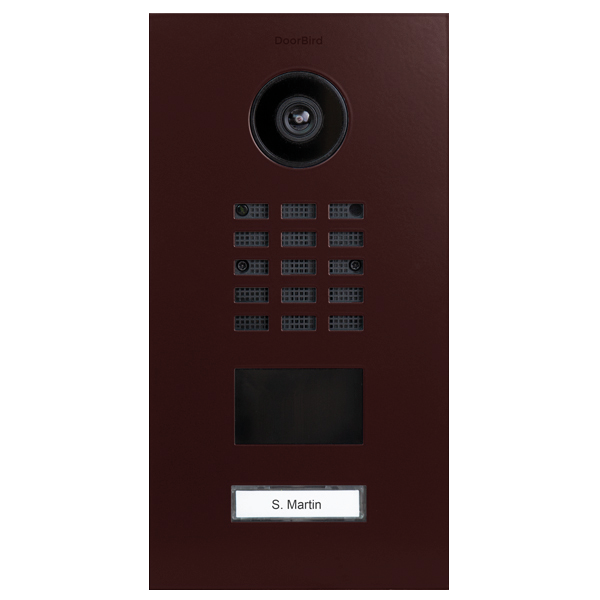

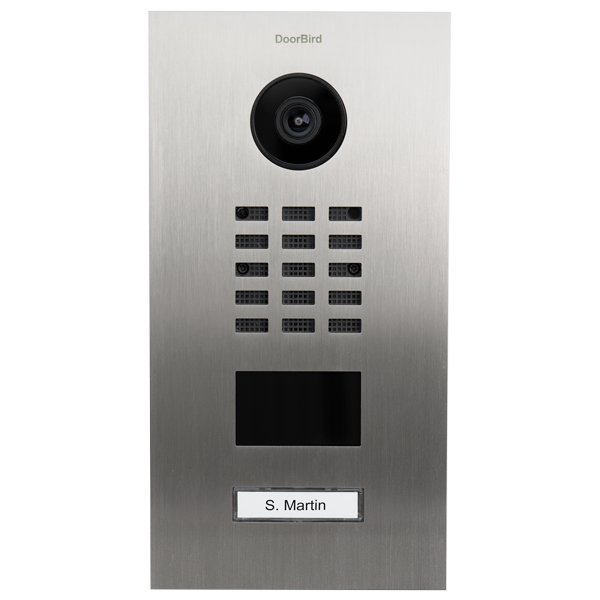

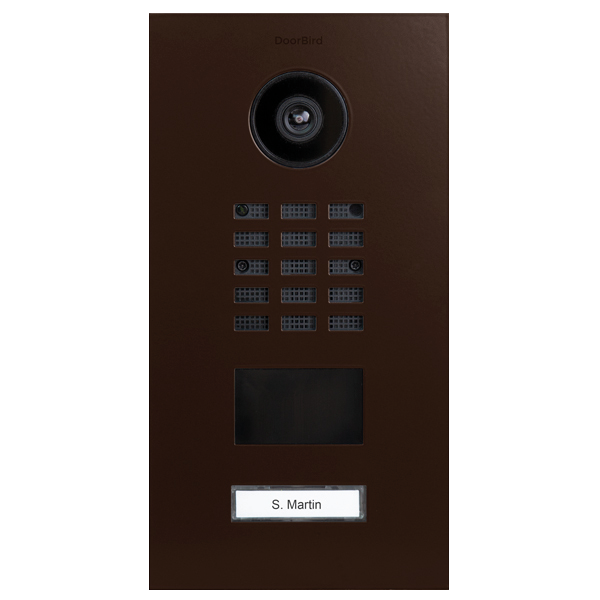

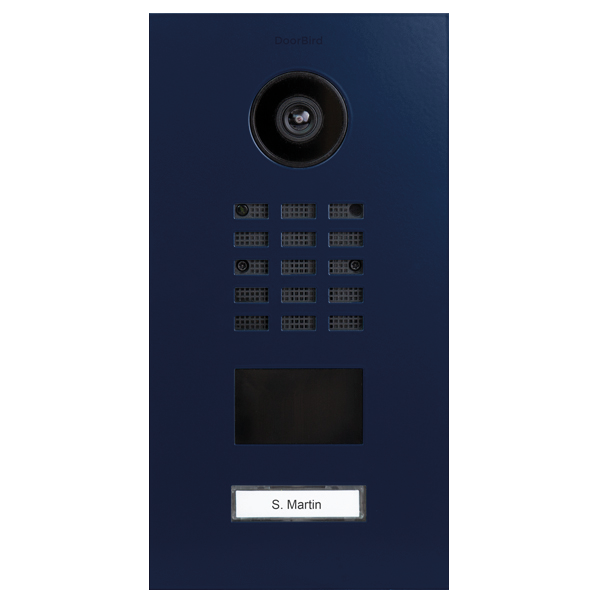

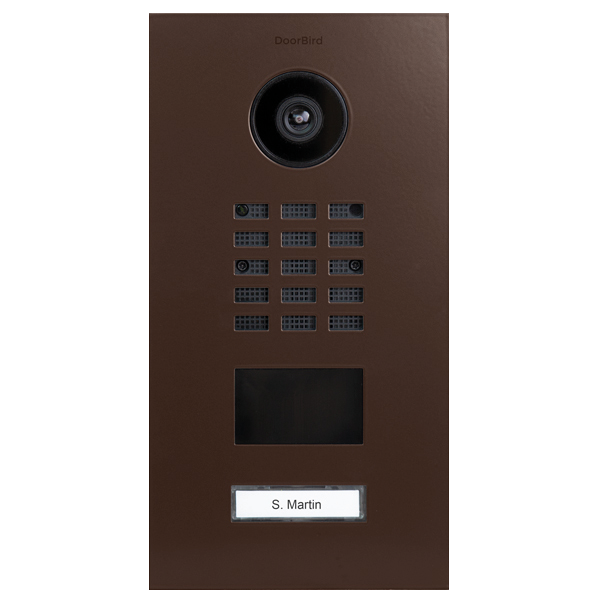

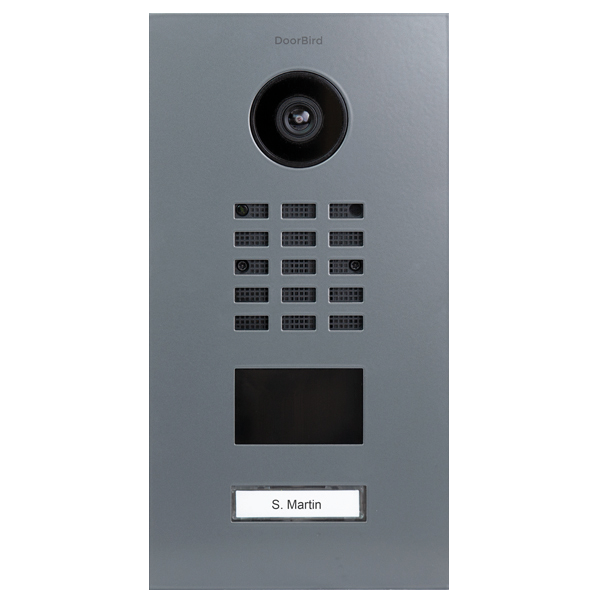

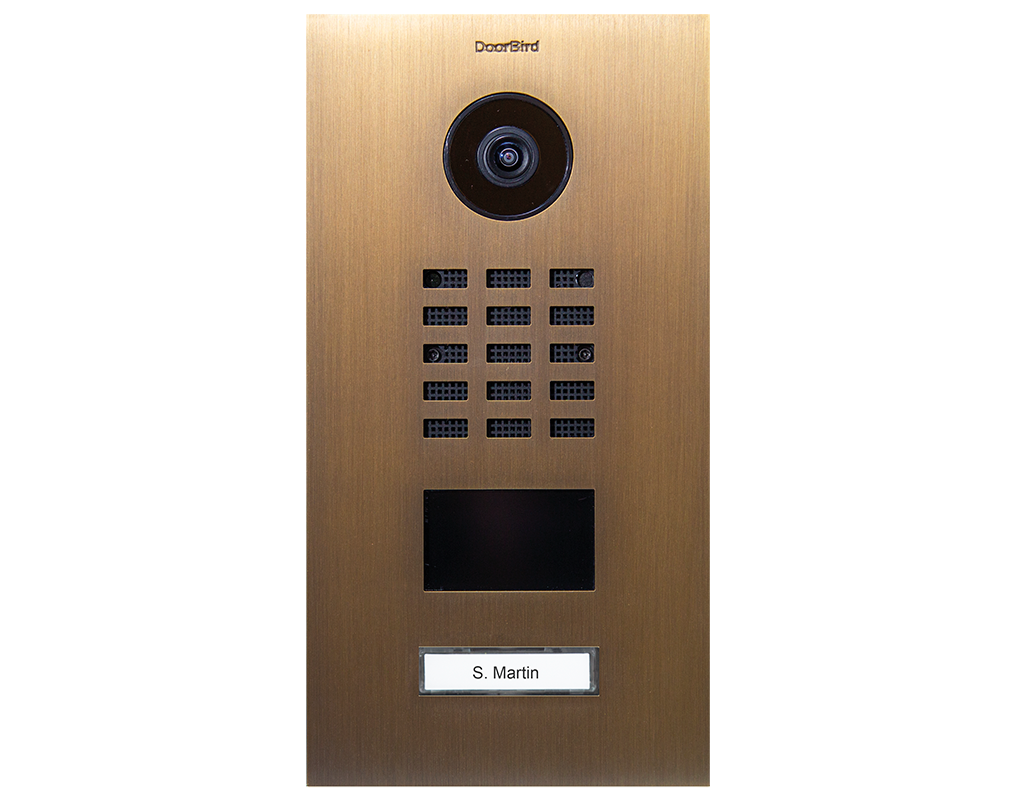

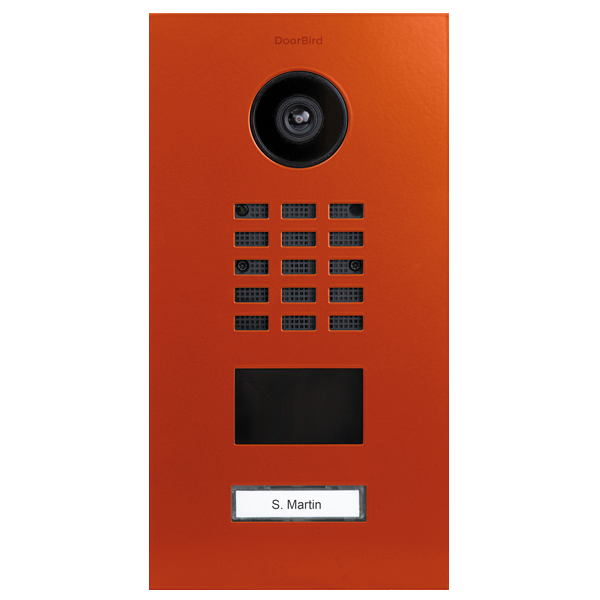

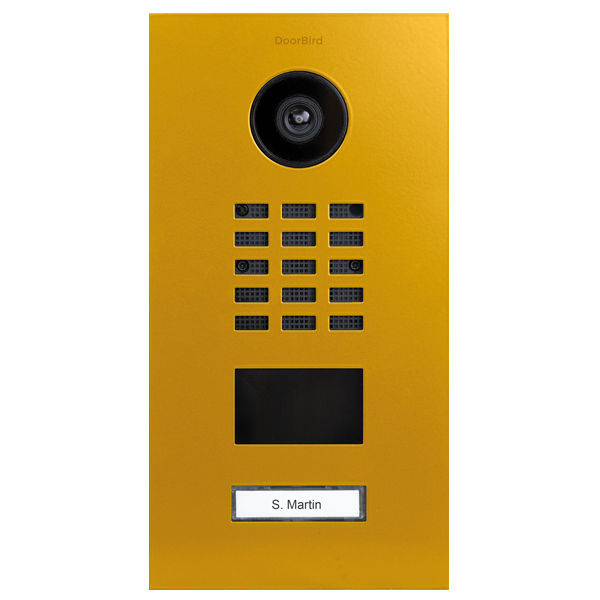

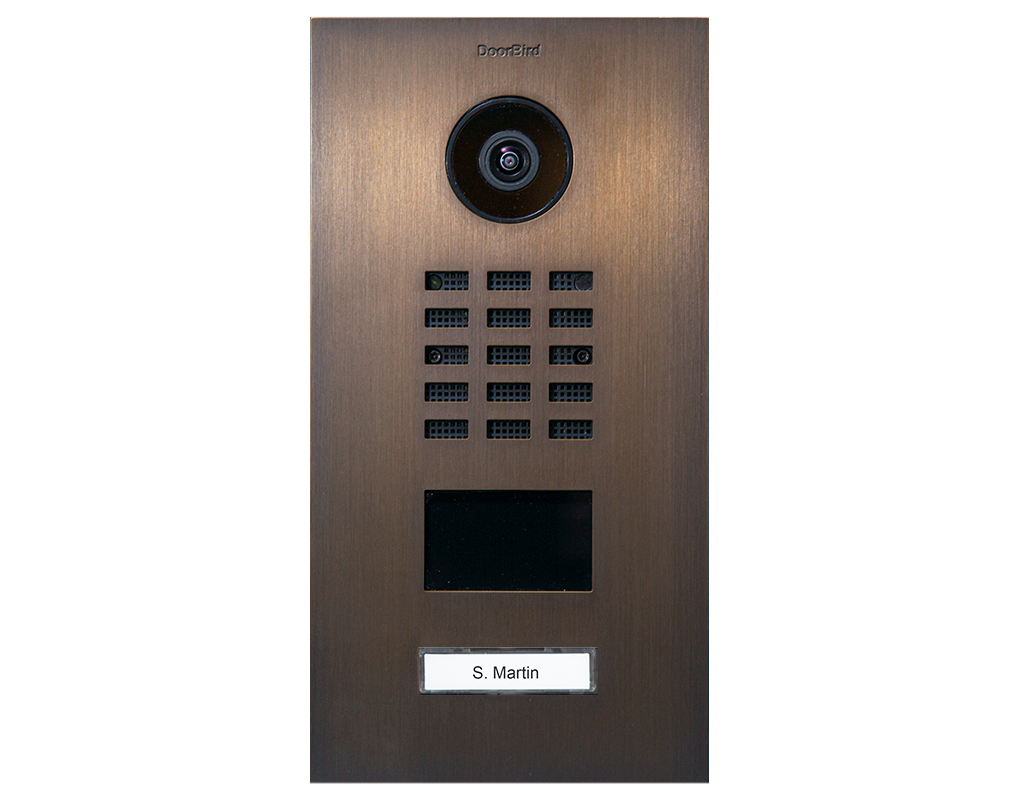

| Color: | Beige / RAL 1001, Blue / RAL 5002, Blue / RAL 5004, Blue / RAL 5012, Blue / RAL 5013, Blue / RAL 5018, Blue / RAL 5022, Bronze, Brown / RAL 8004, Brown / RAL 8011, Brown / RAL 8016, Brown / RAL 8023, Brown / RAL 8028, Chrome, Gold look, Graphite Black (Raven Polar), Green / RAL 6000, Green / RAL 6006, Green / RAL 6018, Green / RAL 6019, Green / RAL 6027, Grey / RAL 7001, Grey / RAL 7004, Grey / RAL 7006, Grey / RAL 7011, Grey / RAL 7015, Grey / RAL 7016, Grey / RAL 7023, Grey / RAL 7033, Grey / RAL 7044, Grey / RAL 9007, Orange / RAL 2002, Orange / RAL 2004, Pink / RAL 3014, Pruple / RAL 4009, Purple / RAL 4004, Purple / RAL 4005, Purple / RAL 4006, RAL 9016, Red / RAL 3000, Red / RAL 3007, Red / RAL 3028, Stainless Steel / Brushed V2A, Stainless Steel / Brushed V4A, Titanium optics / high gloss polished, White / RAL 9002, White / RAL 9006, White / RAL 9010, Yellow / RAL 1003, Yellow / RAL 1004, Yellow / RAL 1016, Yellow / RAL 1037, Yellow / RAl 1017, brass, real brass / burnished, titanium optics |
| Country of Origin: | Germany |
| Depth: | 48.75 mm |
| Ethernet interfaces: | 1 (10/100 PoE) |
| Functions: | Bluetooth, ONVIF, RFID, Relais, internal microphone, loudspeakers |
| Material: | Stainless steel / V2A, Stainless steel / V4A |
| Max. ambient temperature: | 55 °C |
| Min. ambient temperature: | -25 °C |
| Motion sensor: | Yes |
| Mounting options: | Wall mounting (surface mounted), flush-mounting |
| Number of call buttons: | 1 |
| Operation humidity: | 10 bis 85% (without condensation) |
| Portection rating: | IP65 |
| RFID: | Yes |
Show more
Show less
You might also be interested in
Complementary products
More information
DoorBird D2201V is an IP video door station designed for single-family homes and commercial buildings with one unit.
Video and Audio
- 5 MP HDR camera
- 180° ultra-wide-angle lens
- HD video with two-way audio
- Echo and noise cancellation (AEC, ANR)
- Automatic infrared night vision
Access Control
- Illuminated call button with nameplate
- 125 kHz and 13.56 MHz RFID readers
- Bluetooth Low Energy (BLE)
Interfaces and Integration
- PoE (IEEE 802.3at)
- 2 bistable relays
- 2 external inputs
- RS485, Wiegand and OSDP
- SIP support and open API
- Compatible with numerous Smart Home systems
Sensors
- 4D motion sensor with adjustable range from 1 to 10 m
- Ambient light sensor for automatic day/night switching
Installation
- Flush or surface mounting (depending on version)
- Protection rating IP65
- Impact resistance IK08
- Dimensions: 253 × 131 × 48.75 mm
- Weight: 817 g
- Operating temperature: -25 to +55 °C
