Flat XL

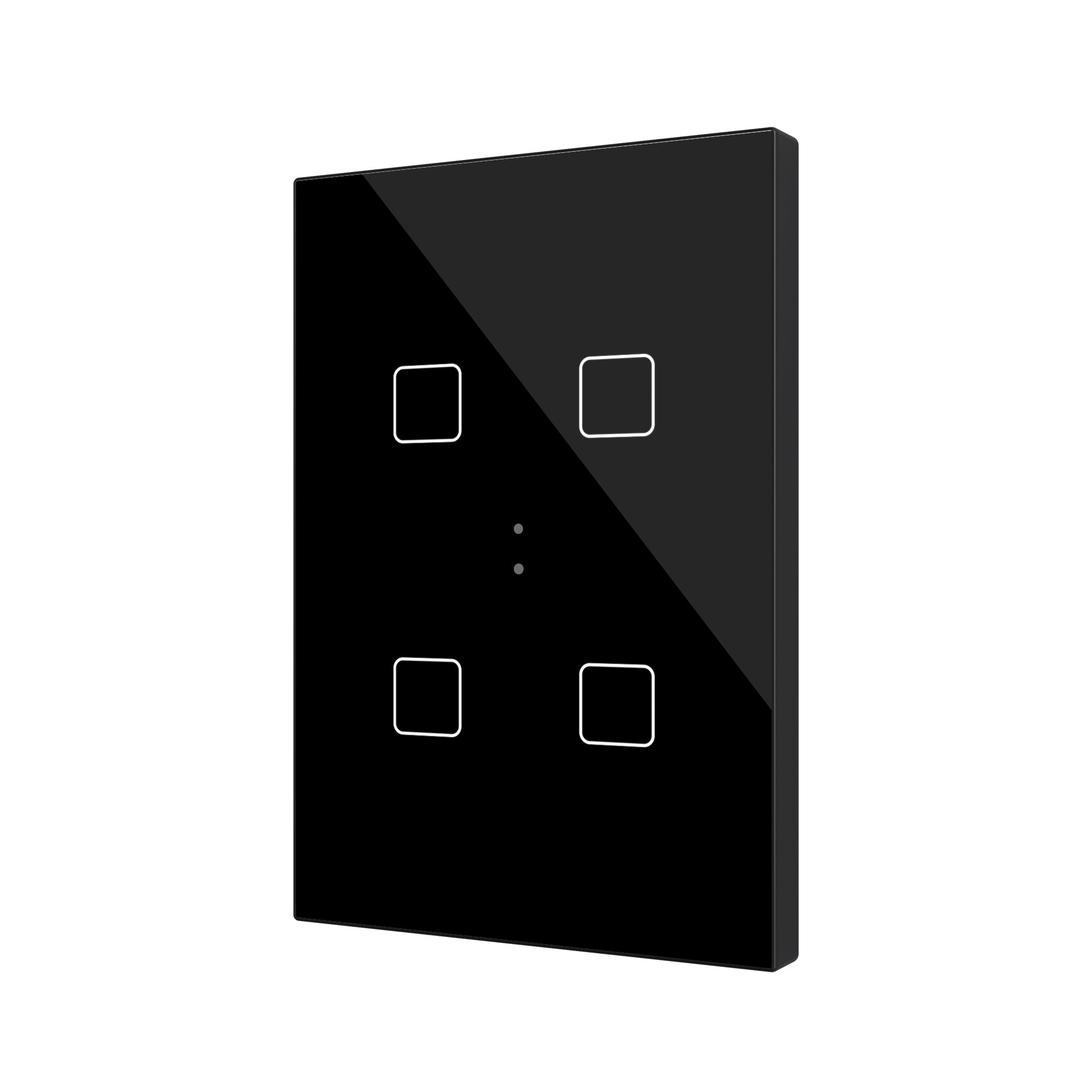

Zennio Flat XL, Capacitive Pushbutton, Flat Series, Backlight, Proximity Sensor
| Manufacturer: | Zennio |
|---|---|
| Manufacturer no.: | ZVIFXLX4A |
| Product no.: | 030300ZVIFXLX4A |
From stock
5+ products available
Product information
Description
Create unique designs, including images, icons, texts or logos printed on tempered glass. 4, 6, 8 or 10-button versions available all with backlit icons that adapt according to ambient luminosity and proximity sensor. Flat XL 4/6/8/10 incorporates an internal temperature probe and thermostat.
Show more
Show less
Variants Properties
| Color: | Black |
|---|---|
| Buttons: | 4 |
Show more
Show less
Technical data
| Width: | 82 mm |
|---|---|
| Height: | 37 mm |
| Length: | 120 mm |
| Weight: | 0.05 kg |
| Bus system: | KNX TP (Twisted Pair) |
| Buttons: | 4, 6, 8, 10 |
| Color: | Black, Customized Design, Silver, White, White Glossy |
| Connection Type: | KNX bus terminal + screw terminal |
| Country of Origin: | Spain |
| Frame Color: | Polycarbonate |
| Height: | 37 mm |
| Input type: | Keine |
| Material: | Glass |
| Max. ambient temperature: | 55 °C |
| Min. ambient temperature: | 0 °C |
| Number of inputs: | 0 |
| Operation humidity: | 5 to 95% RH (without condensation) |
| Portection rating: | IP20 |
| Voltage (typical): | 29 V |
