HmIP-DLP

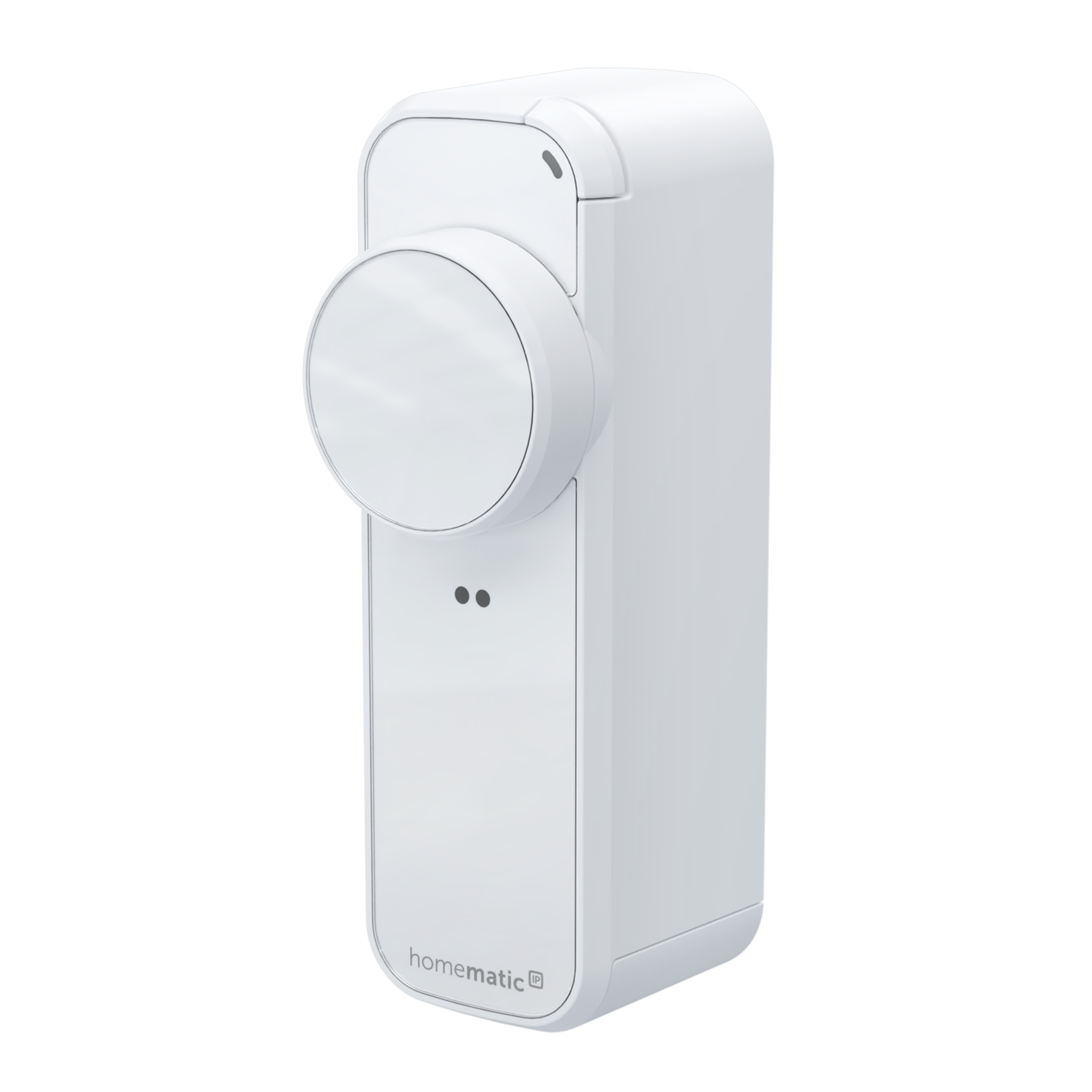

Homematic IP Door Lock Drive pro, HmIP-DLP, smart lock, battery
| Manufacturer: | Homematic IP |
|---|---|
| Product no.: | B-031-157598 |
Available, Delivery time: 2 weeks
Produktinformationen
Description
Homematic IP door lock drive – pro HmIP-DLP is a battery-powered actuator for smart door control. Enables unlocking, locking and opening via app, keypad or voice control. Compatible with standard cylinders with emergency function or thumb turn. Features automatic locking, time profiles, access management and integrated sensors for detecting manipulation and door status. Designed for easy retrofit without replacing the locking system.
Show more
Show less
Variants Properties
Technical data
| Weight: | 0.32 kg |
|---|---|
| Country of Origin: | China |
Show more
Show less
Complementary products
More information
Homematic IP door lock drive – pro HmIP-DLP is a battery-powered actuator for smart control of entrance doors.
It enables unlocking, locking and opening via app, keypad or voice control. Access permissions and time profiles are configured via the Homematic IP app.
- Retrofit: installation without replacing the existing locking system
- Compatibility: suitable for standard cylinders with emergency function or thumb turn
- Installation: adhesive, clamp or screw mounting
- Automation: time-based and automatic locking
- Access control: individual permissions with time profiles
Integrated sensors continuously monitor door and lock status:
- Vibration detection
- Manipulation and tamper detection
- Door status detection (open/closed)
- Blocking and error detection
Powered by batteries (4× AA) with a typical lifetime of 1.5 years.
- Power supply: 4× 1.5 V LR6/AA or 4× 1.2 V HR6/AA
- Radio frequency: 868.0–868.6 MHz / 869.4–869.65 MHz
- Protection rating: IP20
- Operating temperature: –10 to +55 °C
- Dimensions: 43 × 131 × 55 mm
- Weight: 320 g (incl. batteries)
