Z35 v3
Zennio Z35 v3, ZVIZ35V3, KNX touch panel 3.5", integrated sensors
| Manufacturer: | Zennio |
|---|---|
| Manufacturer no.: | ZVIZ35V3A |
| Product no.: | B-003-154928 |
| GTIN/EAN: | 8411080802620 |
From stock
Product information
Description
Variants Properties
| Color: | Black |
|---|
Technical data
| Width: | 82.1 mm |
|---|---|
| Height: | 34.6 mm |
| Length: | 86.1 mm |
| Weight: | 0.22 kg |
| Bus system: | KNX TP (Twisted Pair) |
| Country of Origin: | Spain |
| External power supply: | 21 - 31 VDC |
| Height: | 34.6 mm |
| Max. ambient temperature: | 55 °C |
| Min. ambient temperature: | 0 °C |
| Portection rating: | IP20 |
| Voltage (typical): | 29 V |
You might also be interested in
Complementary products
More information

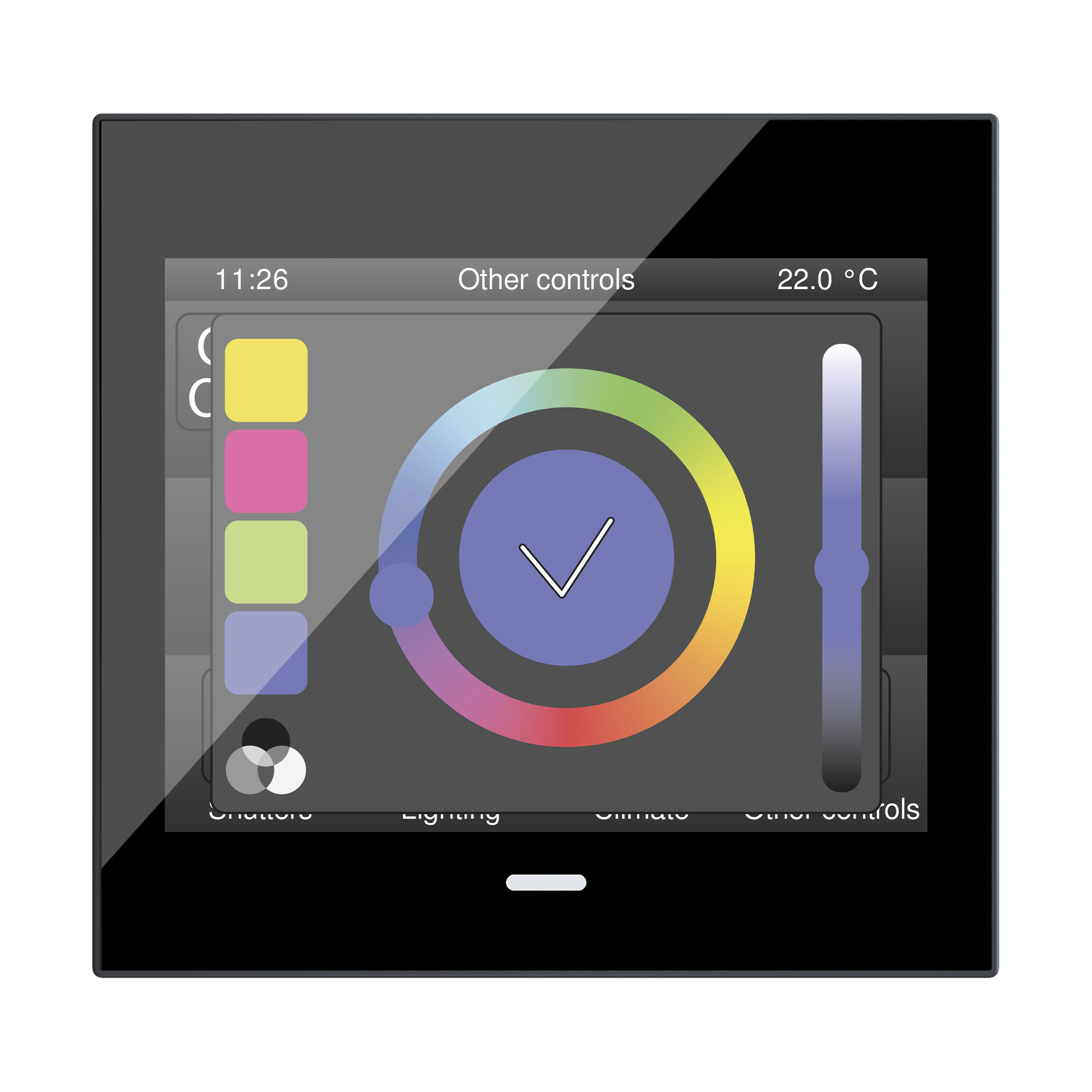

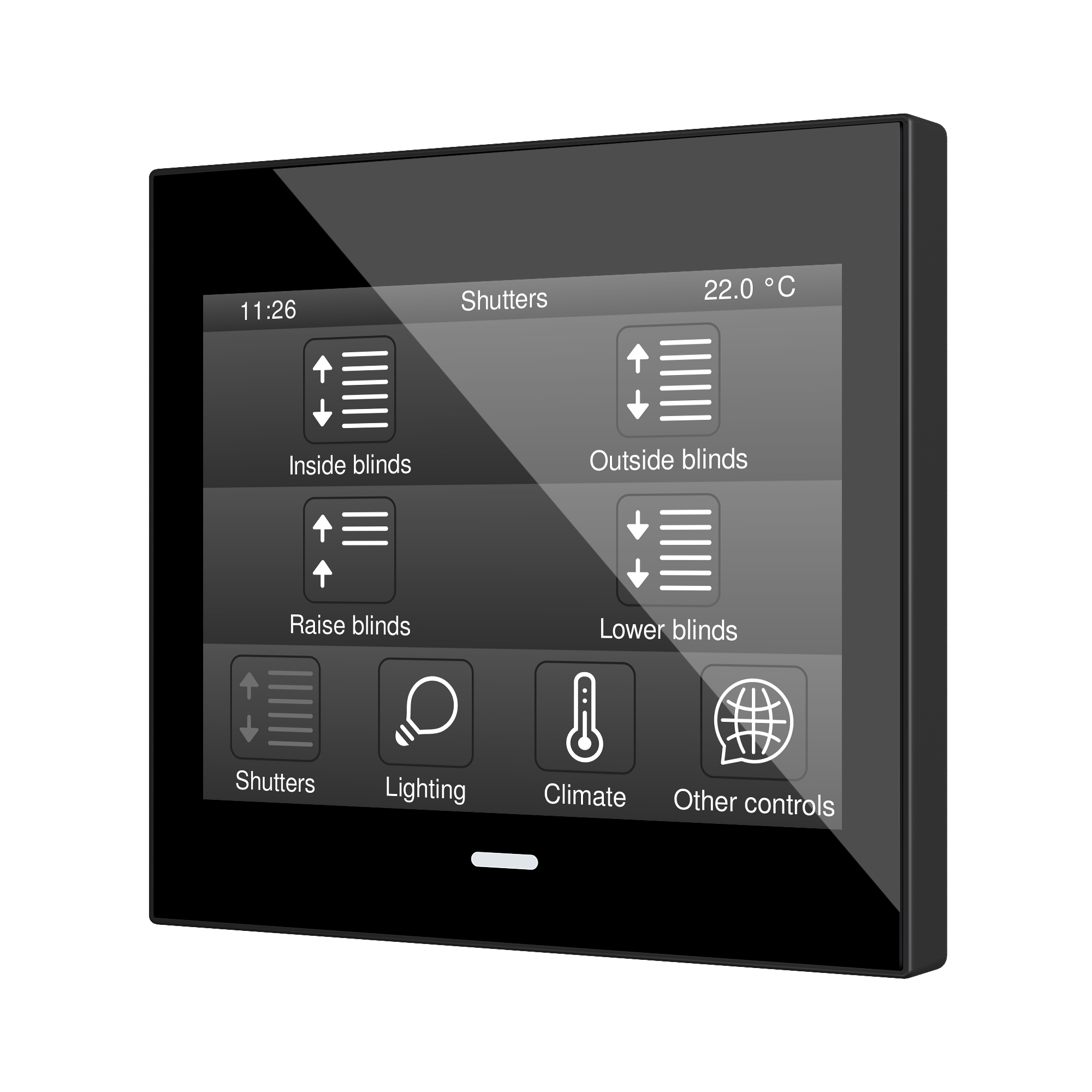

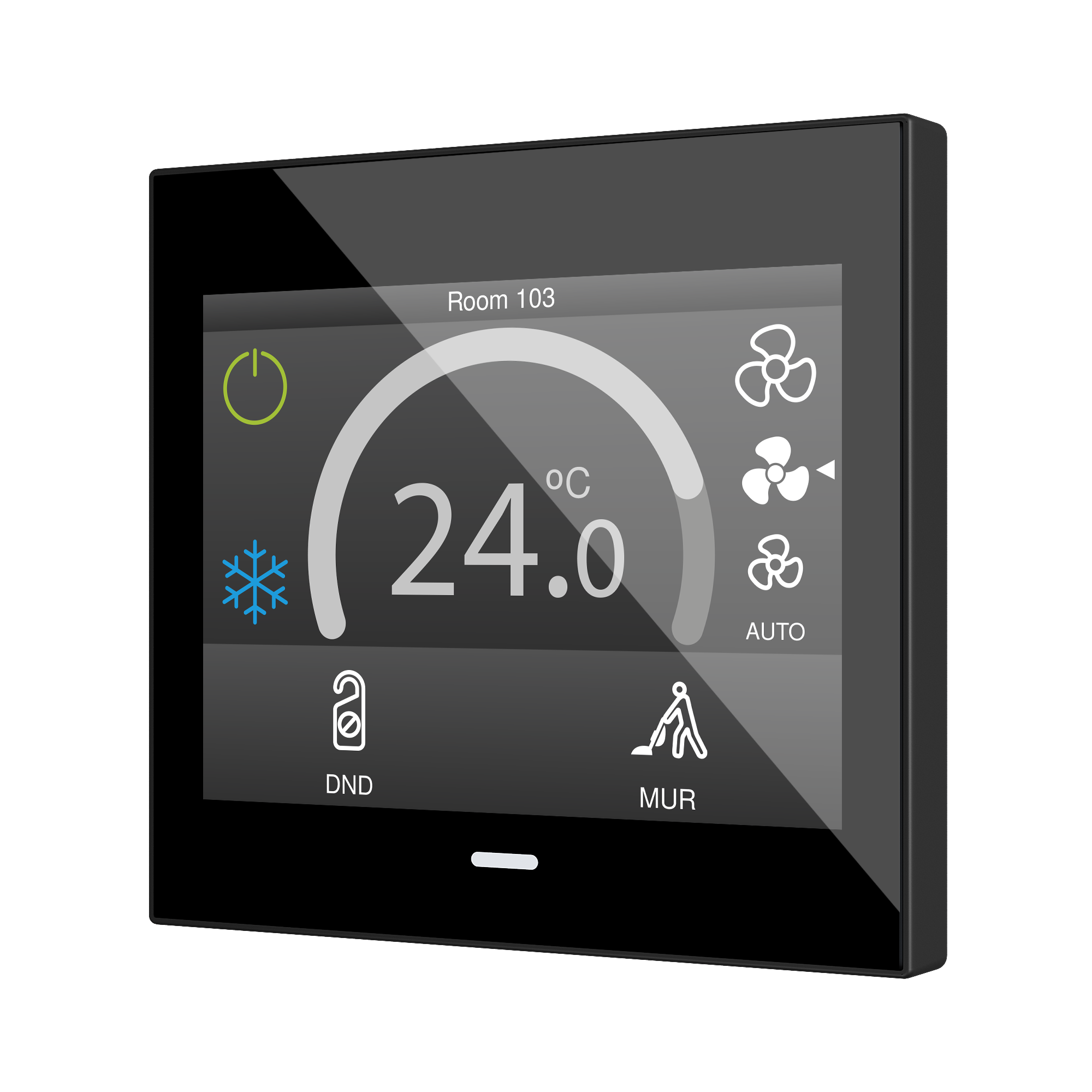

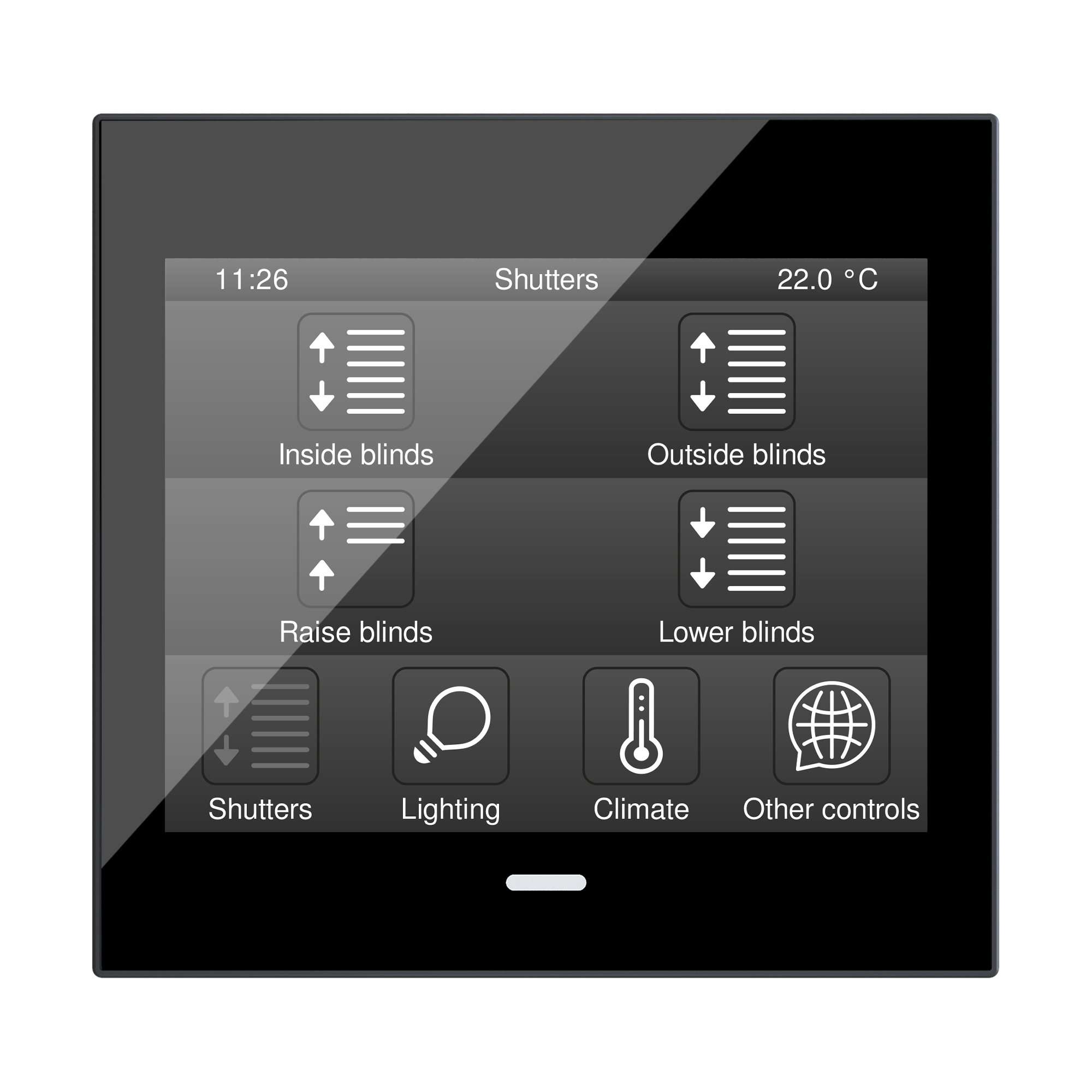

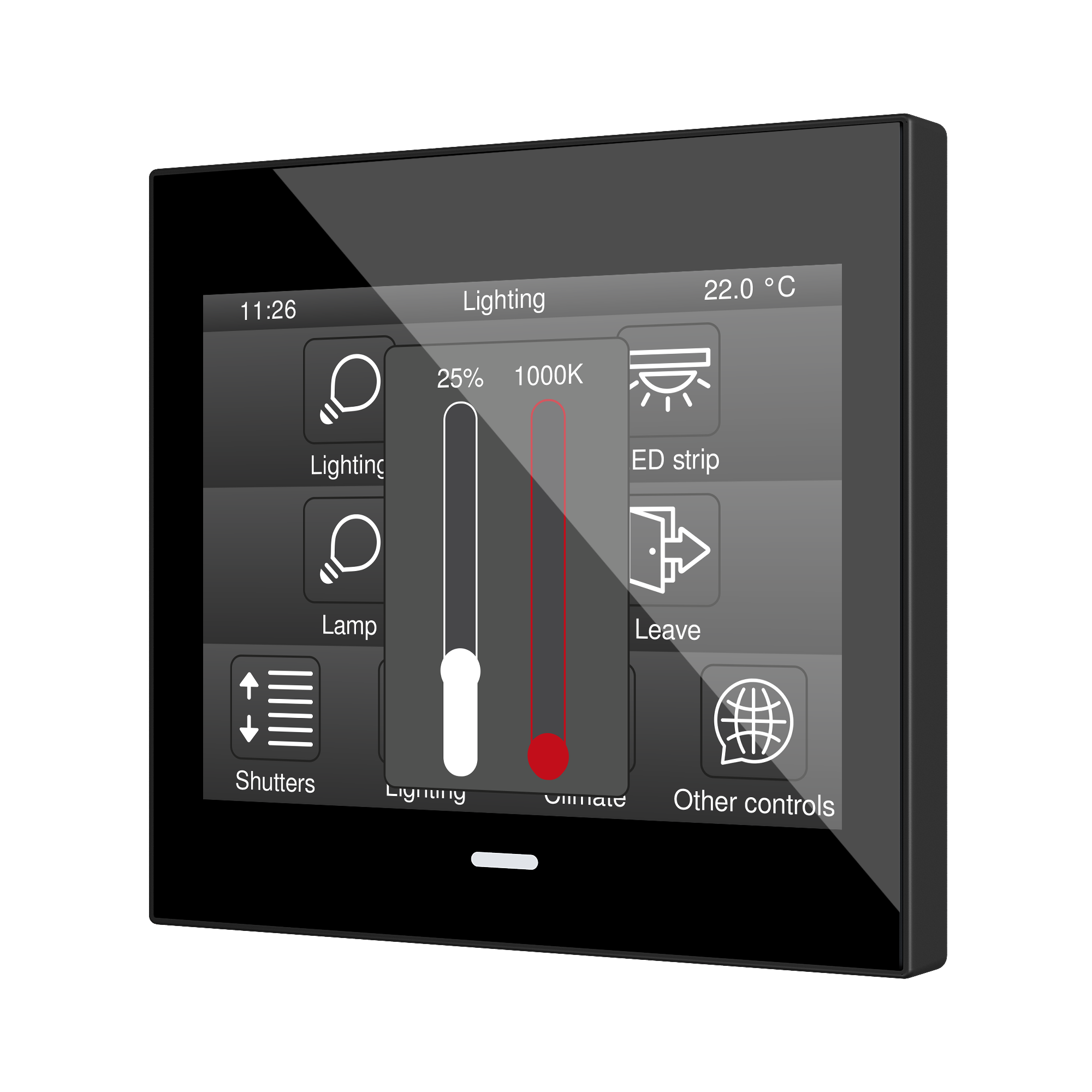

The Zennio Z35 v3 (reference ZVIZ35V3) is a capacitive KNX touch panel featuring a 3.5-inch colour display with a resolution of 320 x 240 pixels for centralised room control.
The device integrates sensors for:
- temperature
- humidity
- brightness
- proximity
An integrated thermostat function enables control of two independent heating circuits. Up to 56 control commands or status indicators can be distributed across seven configurable pages with a navigation menu.
A screen saver displaying date, time and/or temperature can be shown in standby mode. Reactivation is performed via the integrated proximity sensor. Display brightness is automatically adjusted using the brightness sensor.
Four analogue/digital inputs are available and can be configured as binary inputs, temperature probe inputs or motion detector inputs.
The Z35 v3 supports KNX Data Secure and is designed for flush mounting on a wall box. It is available in white, black, silver and champagne finishes.
Product reviews
Login
Philippe am 23 February 2026 07:22
Meilleurs écrans du marché
Pas besoin d'alimentaiton supplémentaire, uniquement bus KNX. Super look, tactile capacitif au top, sonde température, belles couleurs, ça passe partout. Le noir et le champagne sont trop beaux
