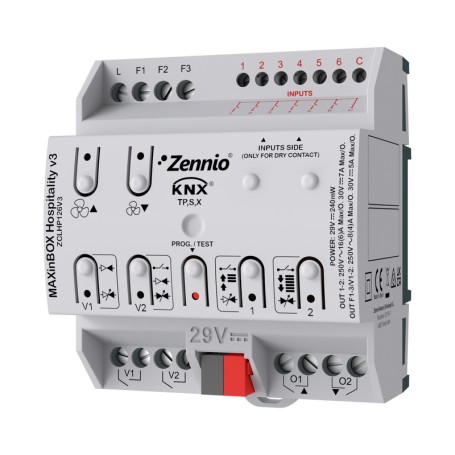

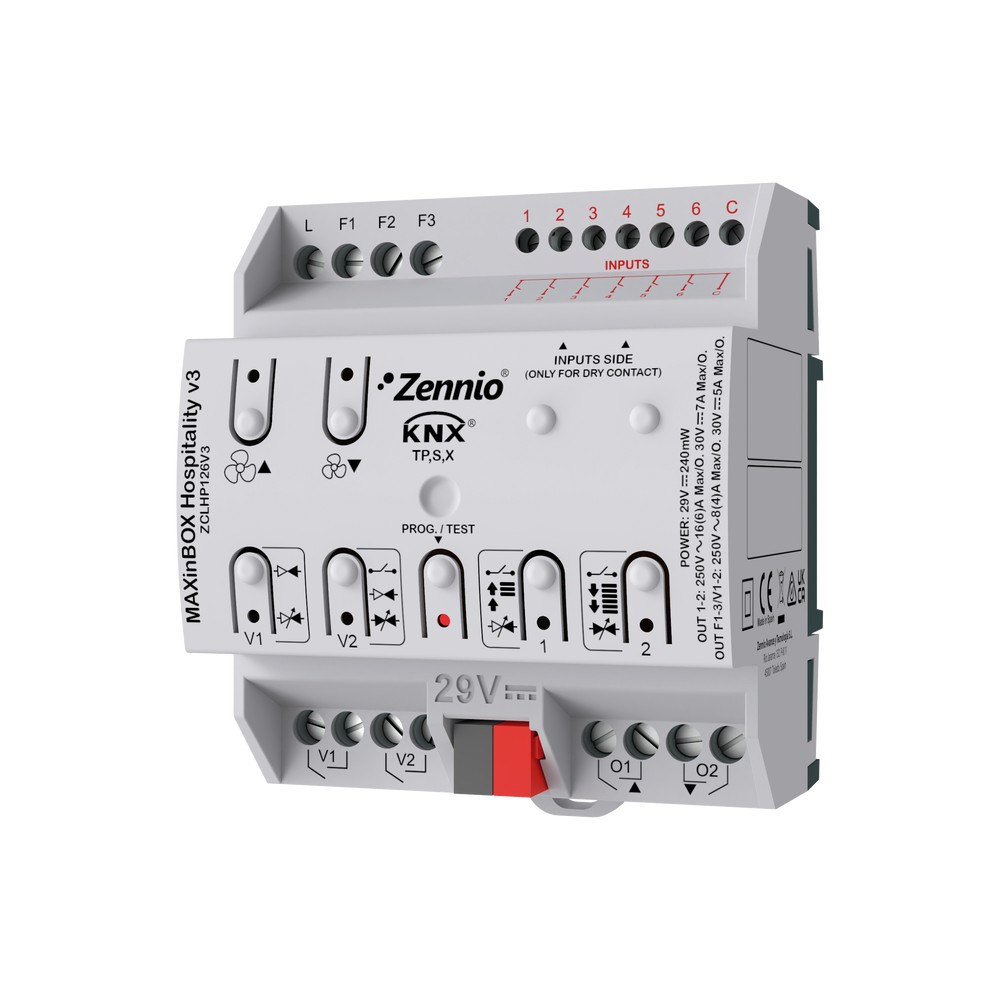

Zennio ZCLHP126V3, Fan Coil Controller, KNX Secure, Master Light Function

Product Name: MAXinBOX Hospitality v3

Manufacturer: Zennio

Manufacturer-Nr.: ZCLHP126V3

Reference: B-003-150331

GTIN: 8411080789235

Condition: New

Fan coil controller for 2 or 4-pipes unit with 2-points valves or 3-points valve and up to three fan speeds, for DIN-rail (4.5 units). It includes 2 independent outputs 16 A C-Load, which can be configured as individual outputs or as a shutter channel.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Mounting options	DIN-Rail mounting
Length	67.00 Millimeter
Width	90.00 Millimeter
Portection rating	IP20
External power supply	Aucun requis
Voltage (typical)	29.00 Volt
Height	79.00 Millimeter
Min. ambient temperature	0.00 Celsius
Input type	analog/digital
Max. ambient temperature	55.00 Celsius
Number of inputs	6.0000
Voltage Range (Min.)	21.00 Volt
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	2.0000
Power consumption (W)	0.00 Watt
Output Current	0.00 Ampere
Output Power	0.00 Watt
Actuator Type	Air Conditioning, Fan actuator
Operation humidity	5 to 95% RH (without condensation)
Recommended cable section	0.00 Square_millimeter
Bus system	KNX TP (Twisted Pair)
Connection Type	KNX bus terminal + screw terminal
KNX Secure	Yes
