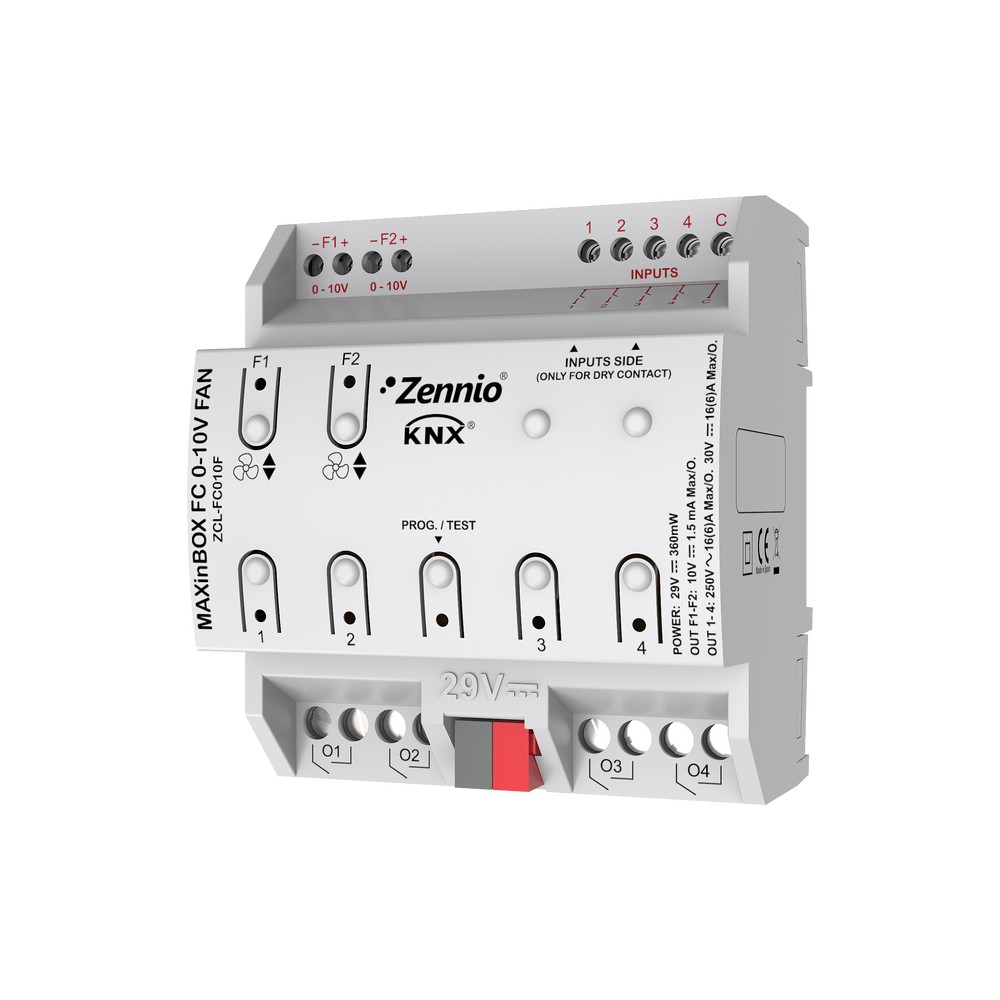

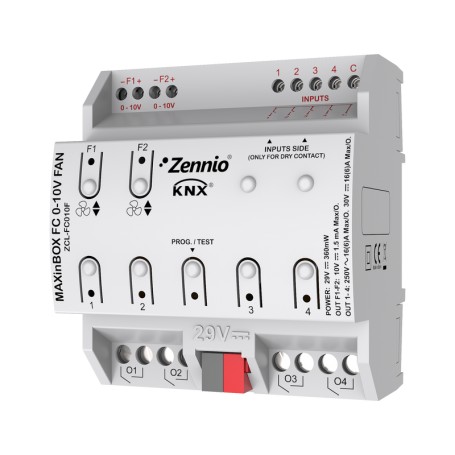

MAXinBOX FC 0-10V FAN
Zennio
ZCL-FC010F
030300ZCLFC010F
8411080789778
New
on stock
Warning: Last items in stock!
Availability date:
Customer ratings and reviews
| Length | 97.00 Millimeter |
| Mounting options | DIN-Rail mounting |
| External power supply | Aucun requis |
| Width | 97.00 Millimeter |
| Horizontal pitch (HP) | 4.5000 |
| Portection rating | IP20 |
| Voltage (typical) | 29.00 Volt |
| Height | 95.00 Millimeter |
| Input type | analog/digital |
| Min. ambient temperature | 0.00 Celsius |
| Max. ambient temperature | 55.00 Celsius |
| Voltage Range (Min.) | 21.00 Volt |
| Number of inputs | 4.0000 |
| Voltage Range (Max.) | 31.00 Volt |
| Output type | analog |
| Résponse devant une récupération de perte d'alimentation KNX | Data backup |
| Number of outputs | 4.0000 |
| Power consumption (W) | 0.32 Watt |
| Output Current | 16.00 Ampere |
| Output Power | 4000.00 Watt |
| Actuator Type | Heating Actuator |
| Operation humidity | 5 to 95% RH (without condensation) |
| Recommended cable section | 4.00 Square_millimeter |
| Connection Type | Terminal block, screwed |
| KNX Secure | No |
