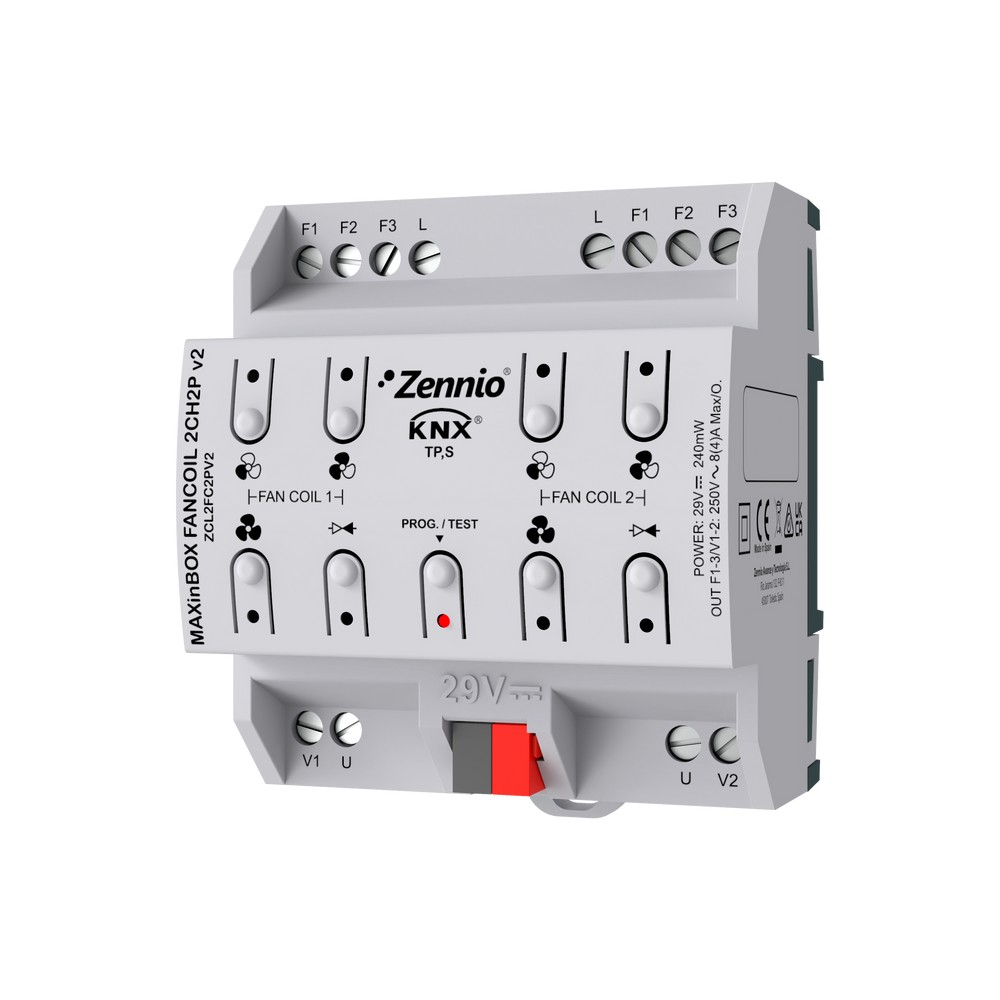

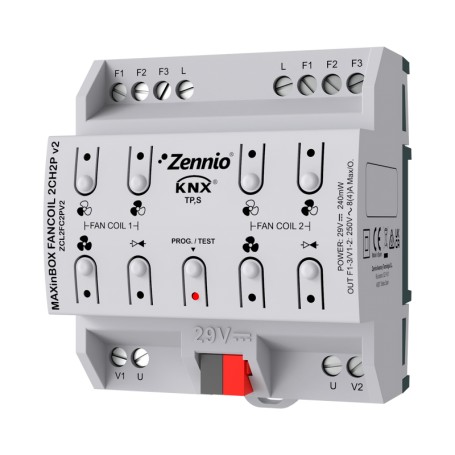

Zennio ZCL2FC2PV2, Fan-Coil Controller, 20 logical functions, LED

Product Name: MAXinBOX FANCOIL 2CH2P v2

Manufacturer: Zennio

Manufacturer-Nr.: ZCL2FC2PV2

Reference: 030300ZCL2FC2PV2

Condition: New

Fan coil controller for DIN-rail (4.5 units) of up to 2 fan coil units of 2-pipes fan coil. It includes a module with 20 logical functions and allows manual control of the outputs with status indication through LEDs.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Mounting options	DIN-Rail mounting
Length	67.00 Millimeter
Width	90.00 Millimeter
Portection rating	IP20
Horizontal pitch (HP)	4.5000
External power supply	Aucun requis
Voltage (typical)	29.00 Volt
Height	79.00 Millimeter
Min. ambient temperature	0.00 Celsius
Max. ambient temperature	55.00 Celsius
Number of inputs	0.0000
Voltage Range (Min.)	21.00 Volt
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	2.0000
Power consumption (W)	2000.00 Watt
Output Current	0.00 Ampere
Output Power	0.00 Watt
Actuator Type	Fan actuator
Operation humidity	5 to 95% RH (without condensation)
Bus system	KNX TP (Twisted Pair)
Connection Type	KNX bus terminal + screw terminal
KNX Secure	No
