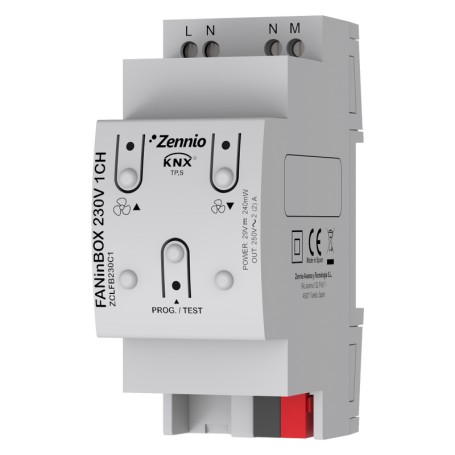

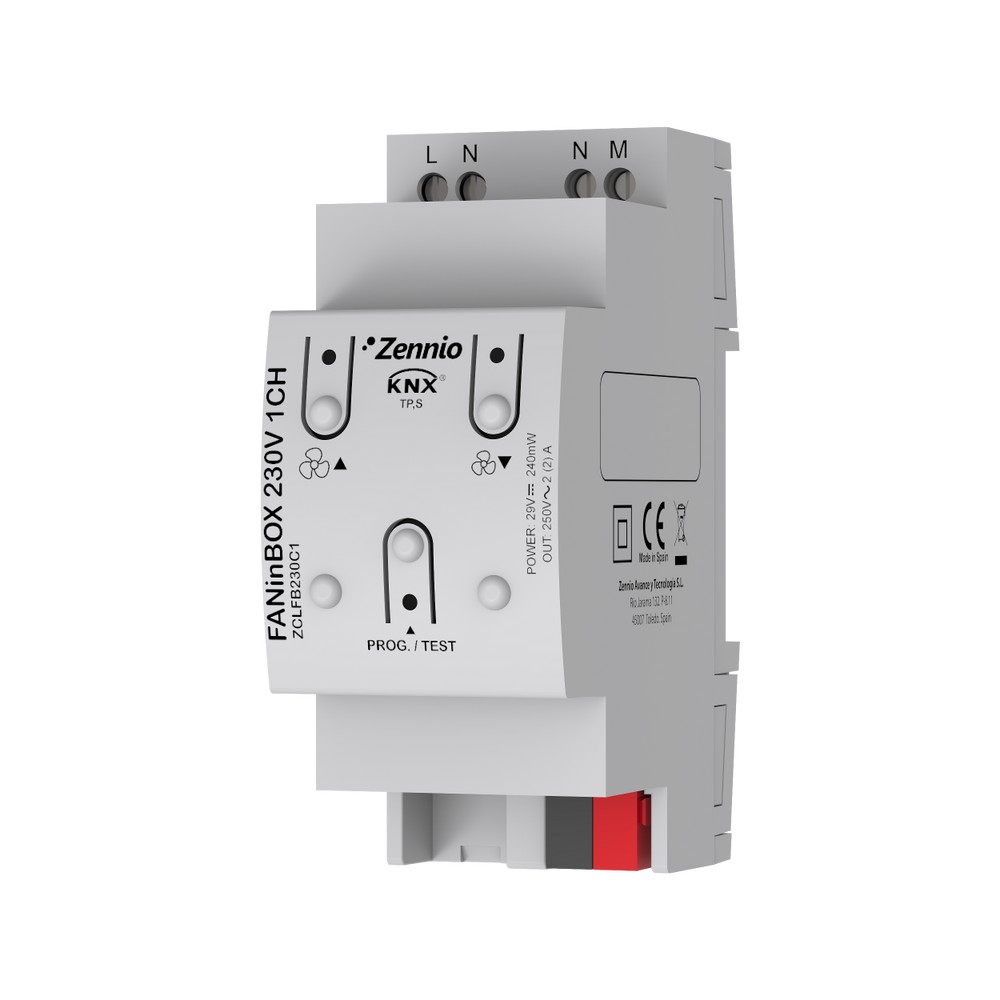

Zennio ZCL-FB230C1, KNX Fan Actuator, 230V, 1 channel, 3 speeds

Product Name: FANinBOX 230V 1CH

Manufacturer: Zennio

Manufacturer-Nr.: ZCLFB230C1

Reference: 030300ZCLFB230C1

GTIN: 8411080789846

Condition: New

Ceiling fan controller for fan units powered at 230VAC (2 DIN rail units). It allows the control of up to 3 fan speeds and manual control of outputs with status LED indicators. It includes 10 logical function module and error indicator of power failure.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	35.00 Millimeter
Mounting options	DIN-Rail mounting
External power supply	230VAC
Width	67.00 Millimeter
Horizontal pitch (HP)	2.0000
Portection rating	IP20
Voltage (typical)	29.00 Volt
Height	90.00 Millimeter
Input type	Keine
Min. ambient temperature	0.00 Celsius
Max. ambient temperature	55.00 Celsius
Voltage Range (Min.)	21.00 Volt
Number of inputs	0.0000
Voltage Range (Max.)	31.00 Volt
Output type	analog
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	1.0000
Power consumption (W)	0.11 Watt
Output Current	0.00 Ampere
Output Power	100.00 Watt
Actuator Type	Fan actuator
Operation humidity	5 to 95% RH (without condensation)
Recommended cable section	2.50 Square_millimeter
Connection Type	screwed
KNX Secure	No
