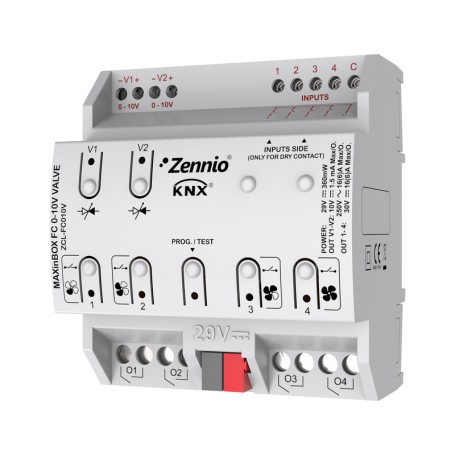

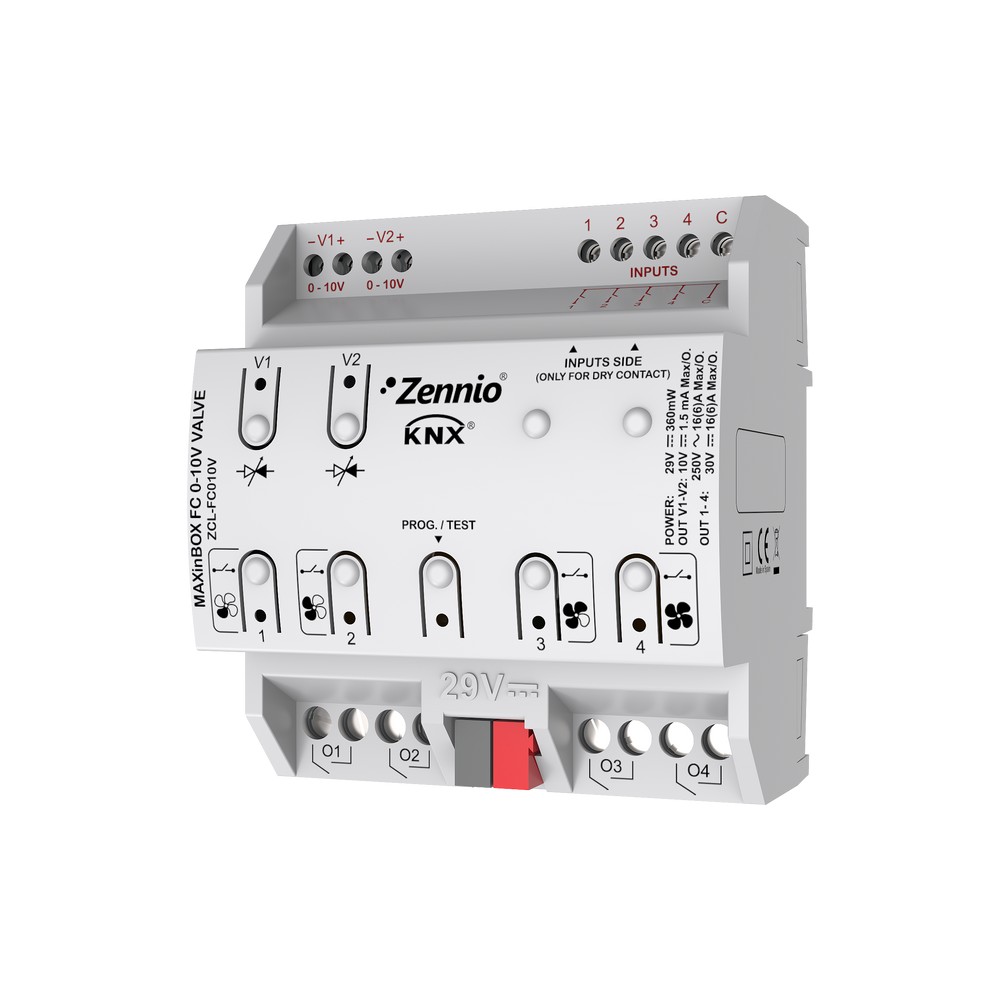

Zennio ZCL-FC010V, fan coil controller, 0-10V, 4 fan speeds

Product Name: MAXinBOX FC 0-10V VALVE

Manufacturer: Zennio

Manufacturer-Nr.: ZCL-FC010V

Reference: 030300ZCLFC010V

GTIN: 8411080789785

Condition: New

MAXinBOX FC 0-10V VALVE. Fan coil controller for 2/4-pipe units with 0-10 VDC Valve Control Signal

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Mounting options	DIN-Rail mounting
Length	97.00 Millimeter
Width	97.00 Millimeter
Horizontal pitch (HP)	4.5000
Portection rating	IP20
External power supply	Aucun requis
Voltage (typical)	29.00 Volt
Height	95.00 Millimeter
Input type	analog/digital
Min. ambient temperature	0.00 Celsius
Max. ambient temperature	55.00 Celsius
Voltage Range (Min.)	21.00 Volt
Number of inputs	4.0000
Voltage Range (Max.)	31.00 Volt
Output type	analog
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	4.0000
Power consumption (W)	0.32 Watt
Output Current	16.00 Ampere
Output Power	4000.00 Watt
Actuator Type	Heating Actuator
Operation humidity	5 to 95% RH (without condensation)
Recommended cable section	4.00 Square_millimeter
Connection Type	Terminal block, screwed
KNX Secure	No

More info

Downloads

Data sheet (DE)
MAXinBOX FC 0-10V VALVE

Data sheet (EN)
MAXinBOX FC 0-10V VALVE

Data sheet (FR)
MAXinBOX FC 0-10V VALVE

Manual (EN)
MAXinBOX FC 0-10V VALVE

Manual (FR)
MAXinBOX FC 0-10V VALVE

MAXinBOX FC 0-10V FAN. Controller for up to two 2-pipe or 4-pipe fan coil units with on/off valves and 0-10VDC fan speed control signal.

Mounted on DIN rails (4.5u). 4 multifunction outputs (16A C-Load) that can be used for the control of the fan coil on/off valves or any other purpose. Includes 4 analog-digital multifunction inputs that can be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs. It also includes 2 thermostats and 10 logical functions. Manual control of outputs and status indication through LEDs.

Accessories: temperature probe and motion sensor.
