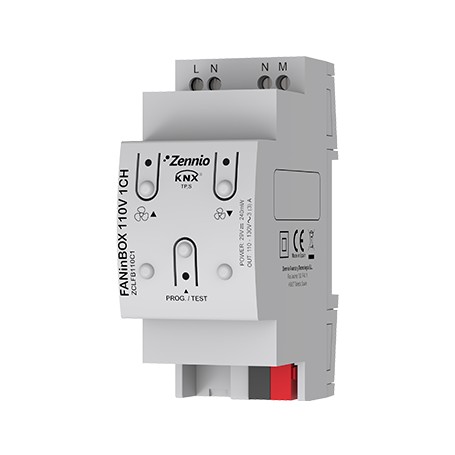

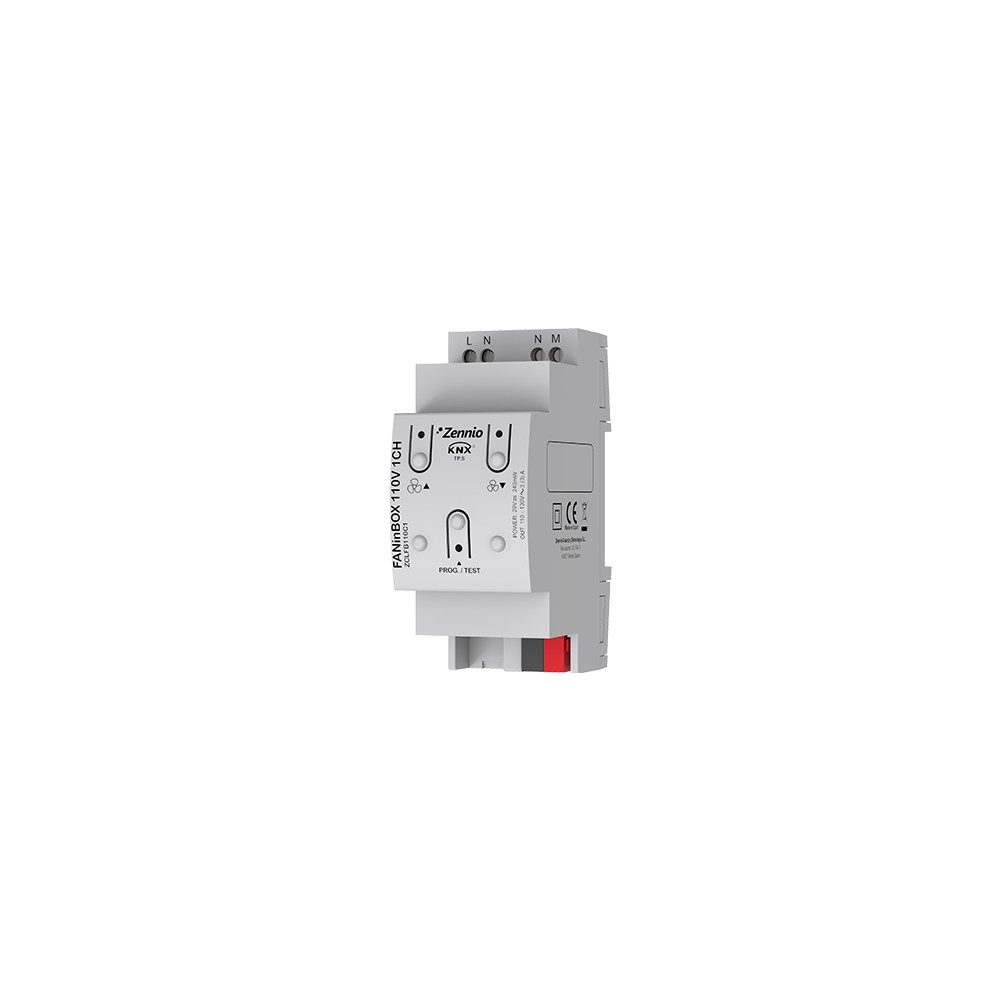

Zennio ZCLFB110C1, KNX Fan Actuator, 110V, 1 channel, 3 speeds

Product Name: FANinBOX 110V 1CH

Manufacturer: Zennio

Manufacturer-Nr.: ZCLFB110C1

Reference: 030300ZCLFB110C1

GTIN: 8411080789839

Condition: New

Controller for 110VAC ceiling fans for DIN rail mounting (2TE) Up to 3 fan speeds and manual control of outputs and status LEDs. Logic module with 10 functions included. Error display in case of power failure.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	67.00 Millimeter
Mounting options	DIN-Rail mounting
Horizontal pitch (HP)	2.0000
External power supply	110VAC - 130VAC
Width	35.00 Millimeter
Portection rating	IP20
Height	90.00 Millimeter
Voltage (typical)	29.00 Volt
Min. ambient temperature	0.00 Celsius
Voltage Range (Min.)	21.00 Volt
Number of inputs	1.0000
Max. ambient temperature	55.00 Celsius
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Power consumption (W)	1.13 Watt
Output Current	0.01 Ampere
Output Power	110.00 Watt
Actuator Type	Fan actuator
Operation humidity	5 to 95% RH (without condensation)
Connection Type	KNX bus terminal + screw terminal
KNX Secure	No
