Zennio ZDILDX4V2, LED dimmer, top-hat rail mounting, 4 channels, constant voltage

Product Name: Lumento DX4 v2

Manufacturer: Zennio

Manufacturer-Nr.: ZDILDX4V2

Reference: B-003-150383

GTIN: 8411080790934

Condition: New

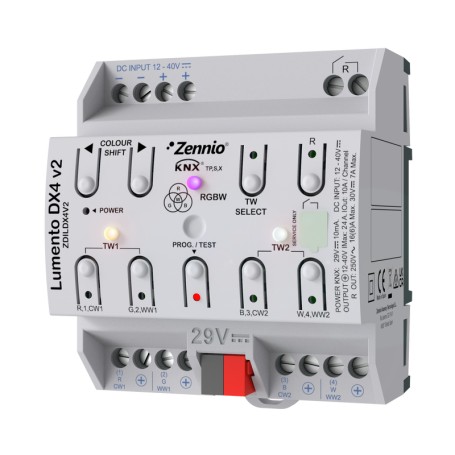

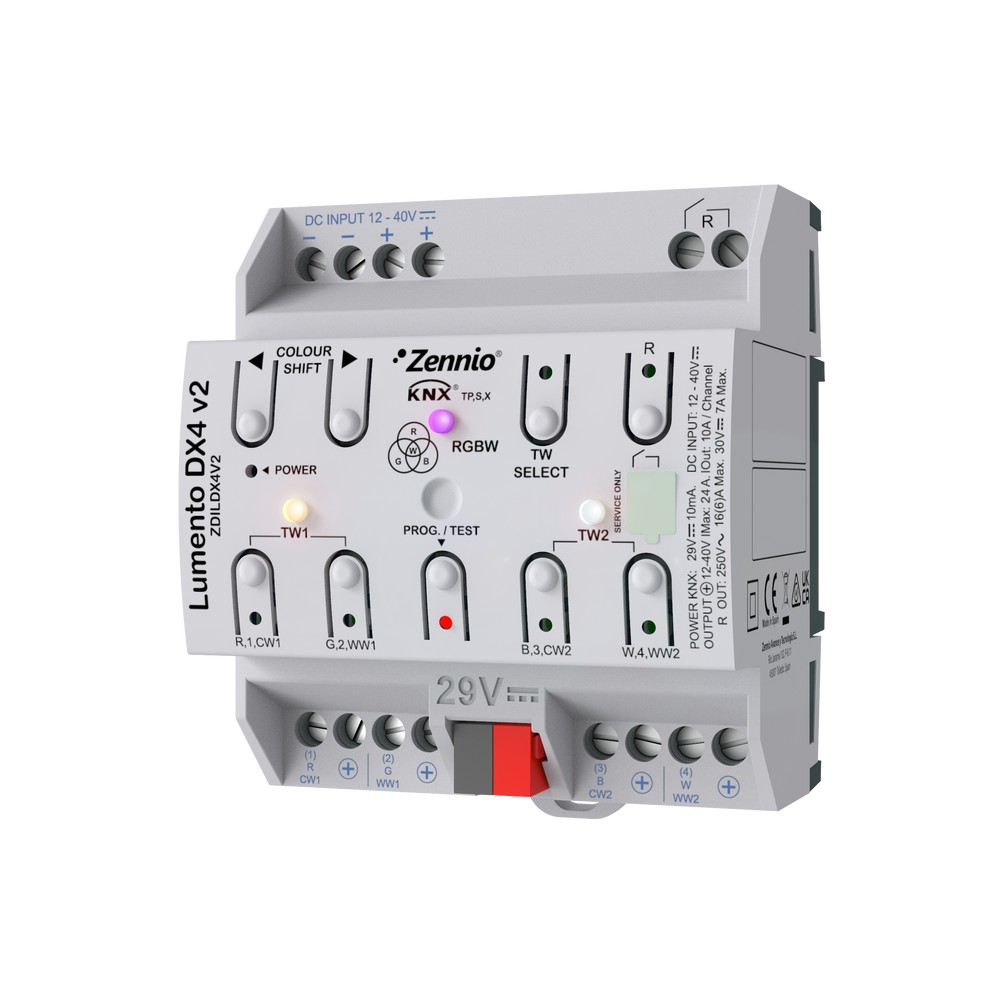

LED dimmer with 4 channels designed for LED technology, featuring constant voltage regulation and DIN-rail mounting (4.5 units). The dimming channels can be configured as combinable independent channels, an RGBW channel, RGB+W channels, and combinable TW channels.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	67.00 Millimeter
Mounting options	DIN-Rail mounting
Horizontal pitch (HP)	4.5000
External power supply	Aucun requis
Width	90.00 Millimeter
Portection rating	IP20
Voltage (typical)	29.00 Volt
Height	79.00 Millimeter
Min. ambient temperature	0.00 Celsius
Max. ambient temperature	55.00 Celsius
Number of inputs	0.0000
Voltage Range (Min.)	21.00 Volt
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	0.0000
Power consumption (W)	0.00 Watt
Output Current	0.00 Ampere
Output Power	0.00 Watt
Actuator Type	Dimming Actuator
Operation humidity	5 to 95% RH (without condensation)
Recommended cable section	0.00 Square_millimeter
Bus system	KNX TP (Twisted Pair)
Connection Type	KNX bus terminal + screw terminal
KNX Secure	Yes
