Zennio ZIOMB16V4, Multifunction actuator, 16x16A, 8TE. REG device

MAXinBOX 16 v4

Zennio

ZIOMB16V4

B-003-150280

8411080789174

New

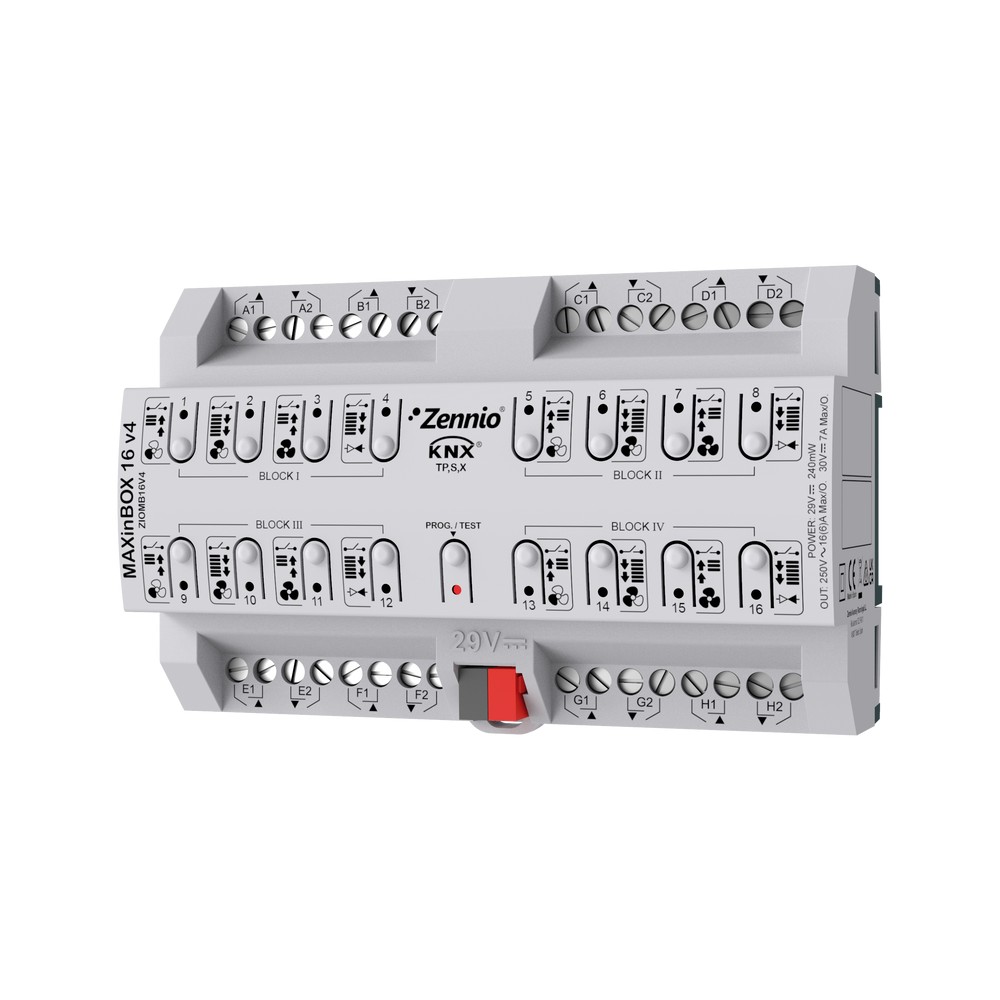

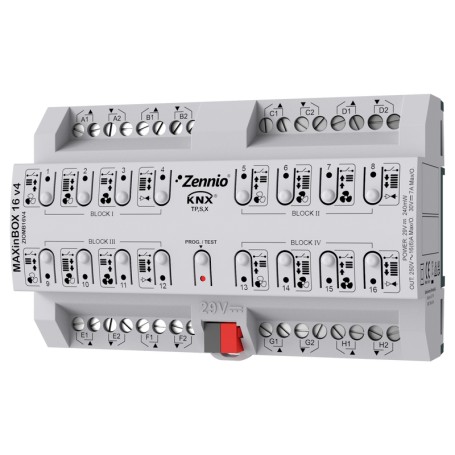

The MAXinBOX 16 v4 is a multi-function actuator for mounting as a REG device, which enables the configuration of up to 8 blind channels, up to 16 individual outputs or as blocks of 4 outputs each for 2-pipe fan coil control.

More details

Prices are only visible for registered customers. Create an account now.

Customer ratings and reviews

Nobody has posted a review yet

Data sheet

Length 67.00 Millimeter
Mounting options DIN-Rail mounting
Horizontal pitch (HP) 8.0000
External power supply Aucun requis
Width 90.00 Millimeter
Portection rating IP20
Voltage (typical) 29.00 Volt
Height 140.00 Millimeter
Min. ambient temperature 0.00 Celsius
Max. ambient temperature 55.00 Celsius
Number of inputs 0.0000
Voltage Range (Min.) 21.00 Volt
Voltage Range (Max.) 31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX Data backup
Number of outputs 16.0000
Power consumption (W) 0.12 Watt
Output Current 0.00 Ampere
Output Power 0.00 Watt
Actuator Type Multifunction Actuator
Operation humidity 5 to 95% RH (without condensation)
Recommended cable section 0.00 Square_millimeter
Bus system KNX TP (Twisted Pair)
Connection Type KNX bus terminal + screw terminal
KNX Secure Yes
