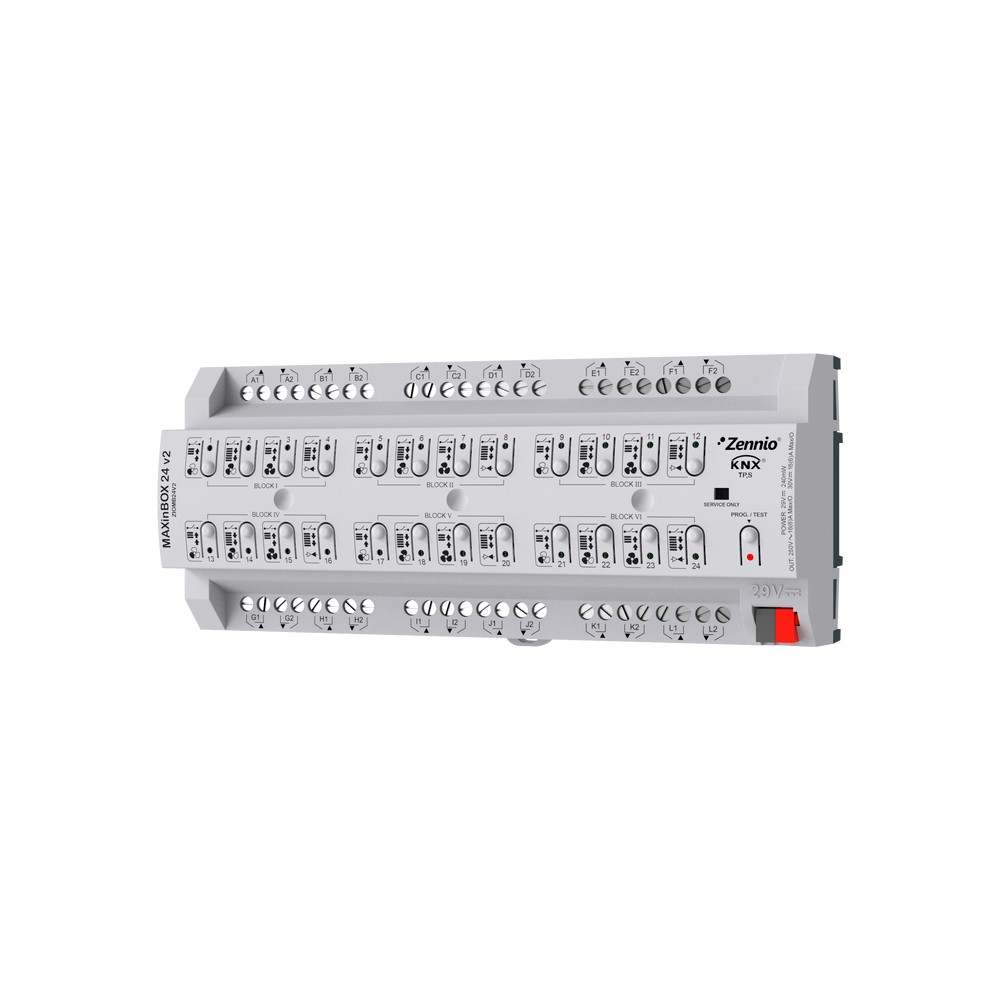

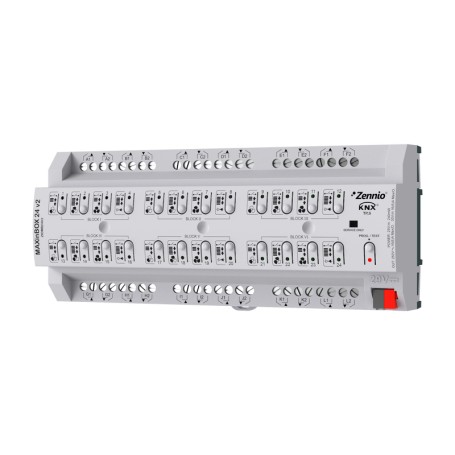

Zennio ZIOMB24V2, multifunction actuator, 24 outputs (16A)

Product Name: MAXinBOX 24 v2

Manufacturer: Zennio

Manufacturer-Nr.: ZIOMB24V2

Reference: 030300ZIOMB24V2

Condition: New

Multifunction actuator for DIN-rail (12 units) that offers multiple configurations of up to 12 shutter channels, up to 24 independent outputs of 16 A (capacitive loads supported) and up to 6 blocks of 2-pipes fan coil controller. It allows manual control of its outputs thanks to the push buttons on the cover. LED indicators can show the status of its outputs. It includes 30 independent logical functions to enlarge the versatility of the automations in KNX system. Accessories: AC/DC shutter adapters.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Mounting options	DIN-Rail mounting
Length	210.00 Millimeter
Width	96.00 Millimeter
Horizontal pitch (HP)	12.0000
Portection rating	IP20
External power supply	Aucun requis
Voltage (typical)	29.00 Volt
Height	69.00 Millimeter
Input type	Keine
Min. ambient temperature	0.00 Celsius
Max. ambient temperature	45.00 Celsius
Voltage Range (Min.)	21.00 Volt
Number of inputs	0.0000
Voltage Range (Max.)	31.00 Volt
Output type	analog
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	24.0000
Power consumption (W)	0.11 Watt
Output Current	16.00 Ampere
Output Power	4000.00 Watt
Actuator Type	Multifunction Actuator, Switch Actuator, Shutter Actuator
Operation humidity	5 to 95% RH (without condensation)
Recommended cable section	4.00 Square_millimeter
Connection Type	screwed
KNX Secure	No
