A1104T
DoorBird A1104T, IP Indoor Station, 7" Touch, PoE WLAN
| Manufacturer: | Doorbird |
|---|---|
| Product no.: | B-013-157527 |
Available, Delivery time: 10 days
Produktinformationen
Description

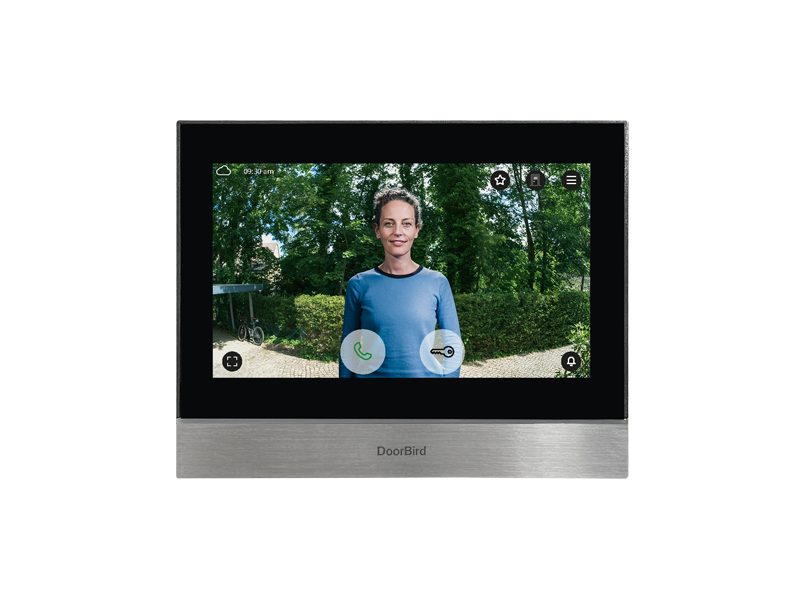

DoorBird A1104T is an IP video indoor station with a 7-inch touchscreen for door communication. It provides HD live video, two-way audio and door control functions. Includes an integrated induction loop for hearing aids, LAN (PoE) and WLAN connectivity. Equipped with two relays and two digital inputs. Designed for surface mounting.
Show more
Show less
Variants Properties
| Color: | Stainless Steel, Gebürstet V2A |
|---|
Technical data
| Width: | 185 mm |
|---|---|
| Height: | 26.04 mm |
| Length: | 146 mm |
| Weight: | 0.58 kg |
| Color: | Bronze, Chrome, Gold look, Graphite Black (Raven Polar), Stainless Steel / Brushed V2A, brass |
| Country of Origin: | Germany |
| Height: | 26.04 mm |
| Material: | Stainless steel / V2A |
Show more
Show less
Accessories
More information

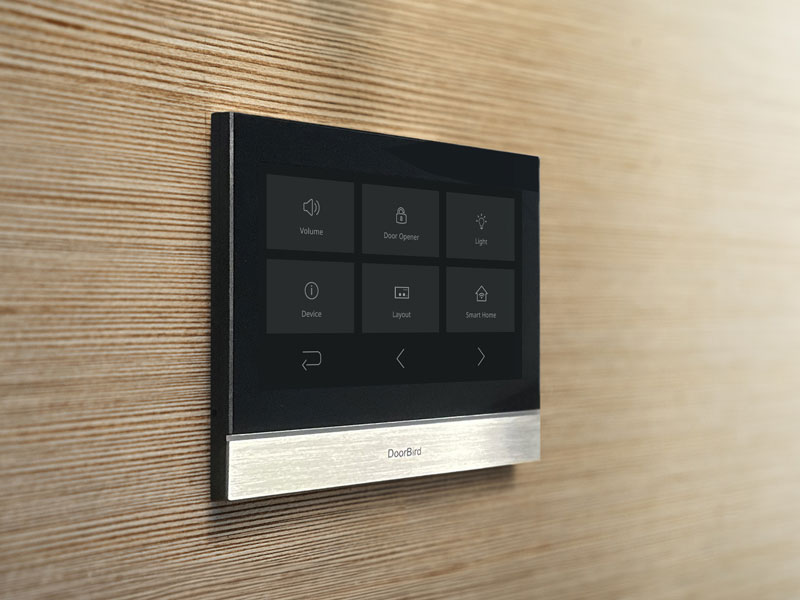

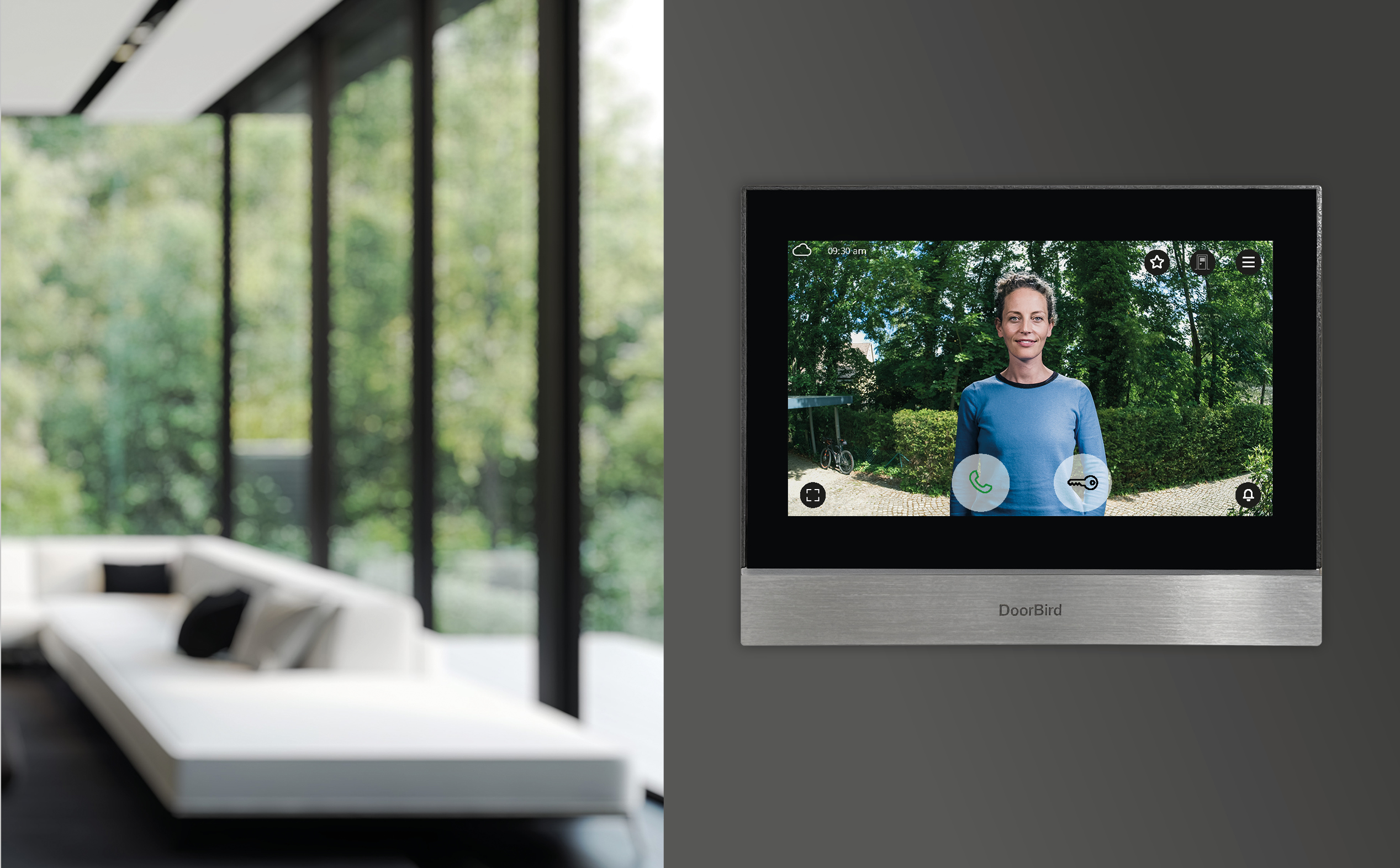

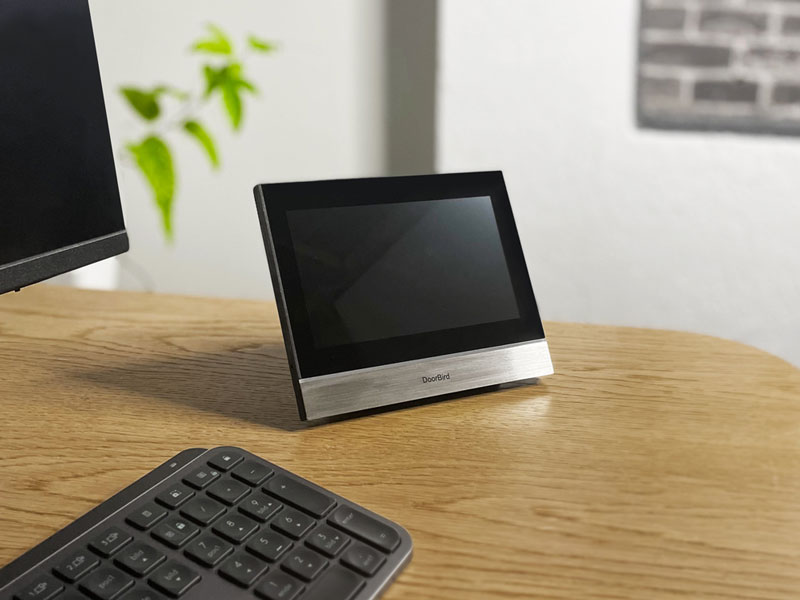

DoorBird A1104T is an IP video indoor station designed for door communication in residential and commercial buildings.
Display and Operation
- 7" True-IPS touchscreen
- Resolution: 1024 × 600 pixels
- Capacitive touch operation
- Scratch-resistant glass display
- Configurable RGB LED status bar
Audio and Accessibility
- HD video transmission
- Two-way audio with echo and noise reduction
- Integrated speaker and microphone
- Integrated induction loop for hearing aids
Functions
- Door and elevator control
- Visitor history with cloud recording
- Intercom between indoor stations
- SIP support
- Weather display
- Building automation integration
- Configuration via app and web interface
Interfaces
- Ethernet RJ45 with PoE
- WiFi 2.4 GHz
- 2 digital inputs
- 2 bistable relays
- Power supply: PoE or 15–48 V DC
Installation
- Surface mounting
- Dimensions: 146 × 185 × 26 mm
- Weight: 580 g
