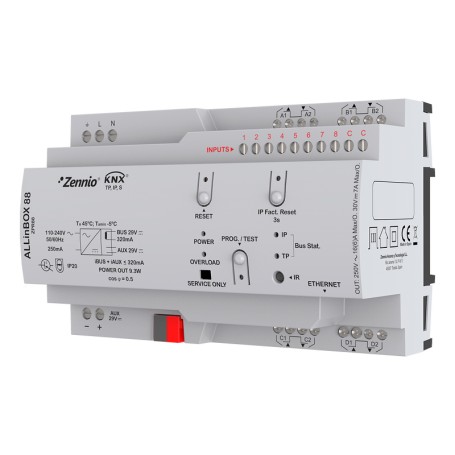

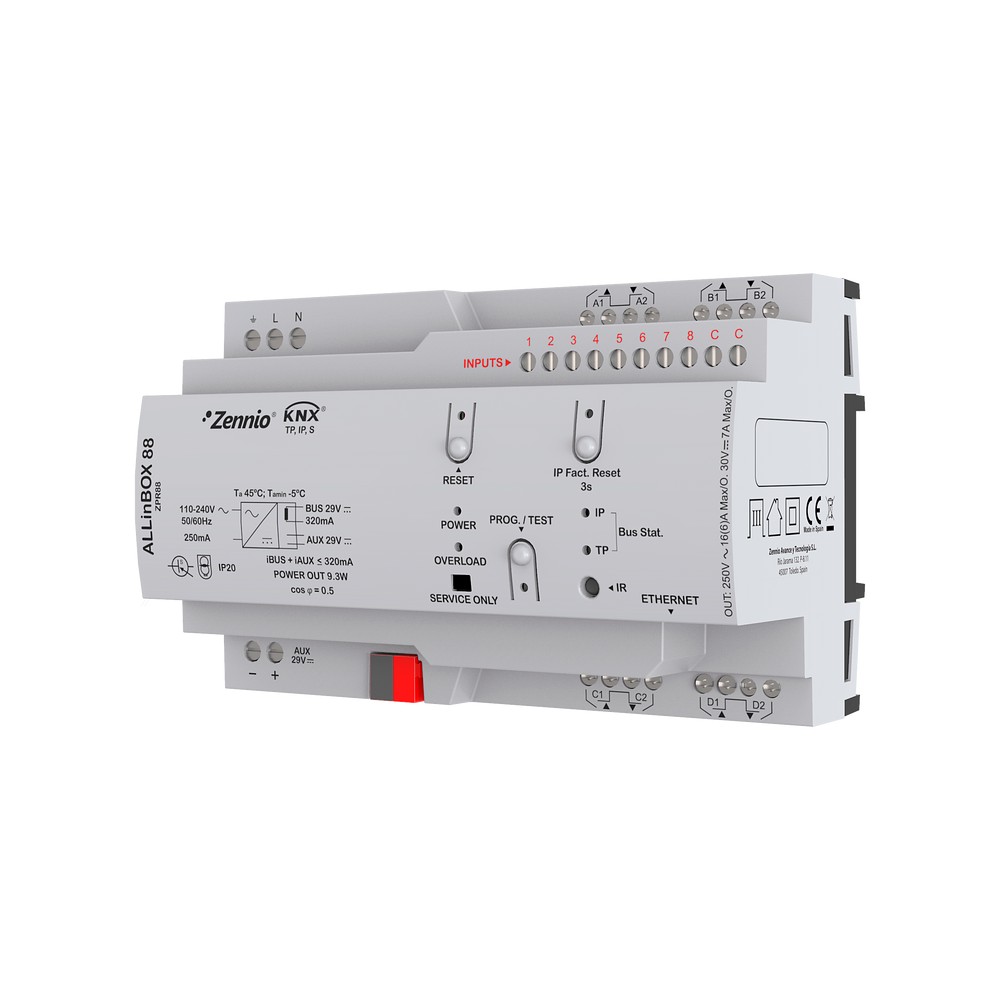

Zennio ZPR88, multifunctional actuator, 8 outputs, 8 input, (16A)

Product Name: ALLinBOX 88

Manufacturer: Zennio

Manufacturer-Nr.: ZPR88

Reference: 030300ZPR188

GTIN: 8411080805263

Condition: New

The Zennio ZPR88 is a multifunctional actuator. This all in one actuator has 8 input and 8 outputs. The multifunction actuator contains a KNX power supply of 320mA.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	90.00 Millimeter
Mounting options	DIN-Rail mounting
External power supply	110-240VAC
Width	140.00 Millimeter
Portection rating	IP20
Height	67.00 Millimeter
Voltage (typical)	29.00 Volt
Min. ambient temperature	5.00 Celsius
Number of inputs	8.0000
Voltage Range (Min.)	21.00 Volt
Max. ambient temperature	45.00 Celsius
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	8.0000
Power consumption (W)	0.00 Watt
Output Current	0.50 Ampere
Output Power	0.00 Watt
Actuator Type	Multifunction Actuator
Operation humidity	5 to 95% RH (without condensation)
Connection Type	KNX bus terminal + screw terminal
KNX Secure	No
