CX50
Zennio CX50, ZVICX50, 5" KNX Touch Panel
| Manufacturer: | Zennio |
|---|---|
| Product no.: | B-003-156985 |
Available, Delivery time: 2 weeks
Produktinformationen
Description
Zennio CX50 is a 5-inch capacitive KNX touch panel for visualisation and control in building automation systems. It offers up to 12 configurable pages, built-in temperature, humidity and proximity sensors, and two independent thermostats. Four analog/digital inputs are available for sensors or push buttons. Designed for flush mounting in standard wall boxes.
Show more
Show less
Variants Properties
| Color: | Mocha |
|---|
Technical data
| Width: | 80.7 mm |
|---|---|
| Height: | 9.5 mm |
| Length: | 1.331 mm |
| Weight: | 0.188 kg |
| Bus system: | KNX TP (Twisted Pair) |
| Country of Origin: | Spain |
| External power supply: | 24 - 29 VDC |
| Height: | 9.5 mm |
| Max. ambient temperature: | 55 °C |
| Min. ambient temperature: | 0 °C |
| Portection rating: | IP20 |
| Voltage (typical): | 29 V |
Show more
Show less
You might also be interested in
Accessories
More information

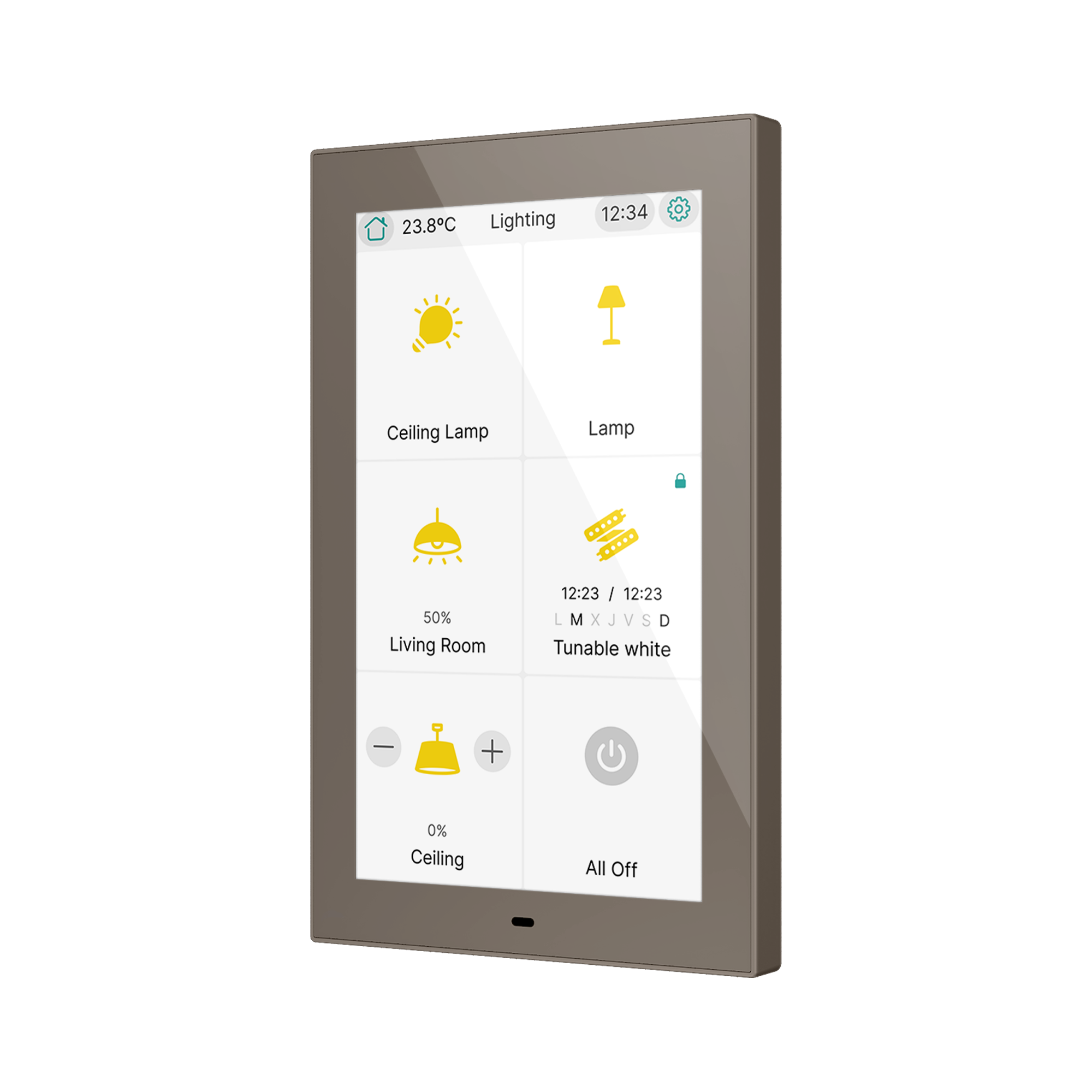

Zennio CX50 (ZVICX50) is a 5-inch capacitive KNX touch panel designed for control and visualisation of functions in KNX building automation systems.
Operation and Display
- 5" capacitive touchscreen

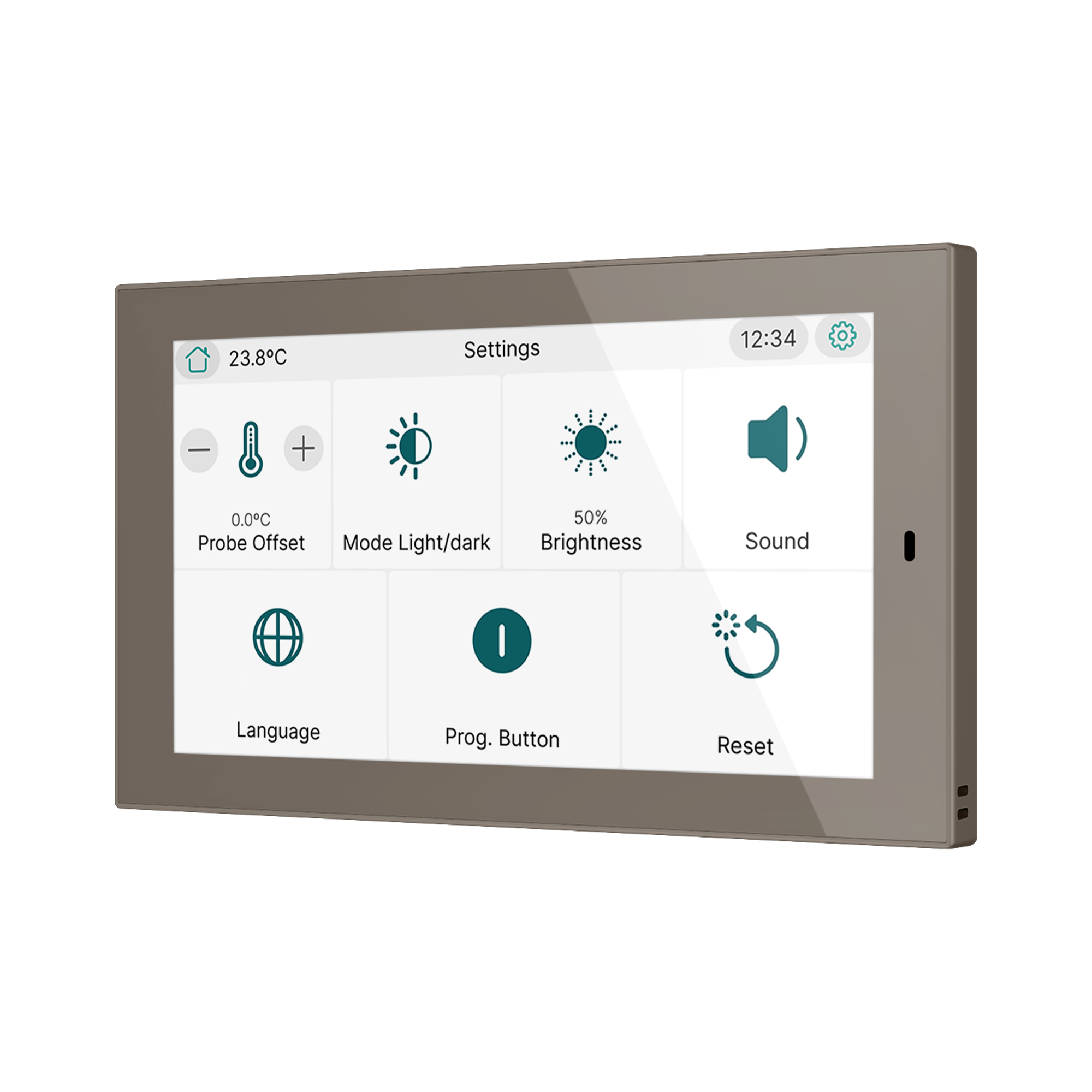

- Up to 12 configurable pages plus a settings page
- Visual feedback via the display
Sensors and Climate Functions
- Built-in temperature sensor
- Built-in humidity sensor
- Proximity sensor

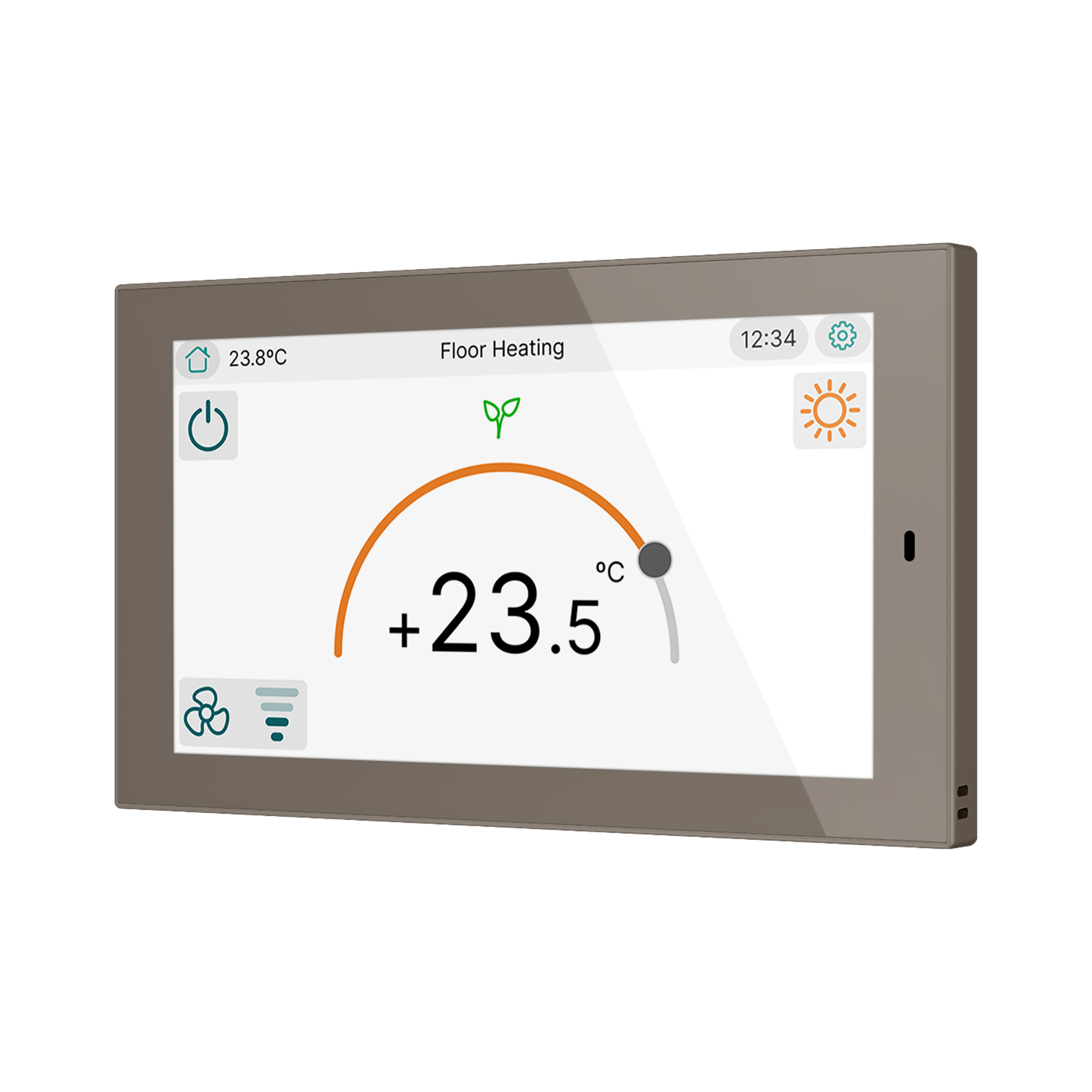

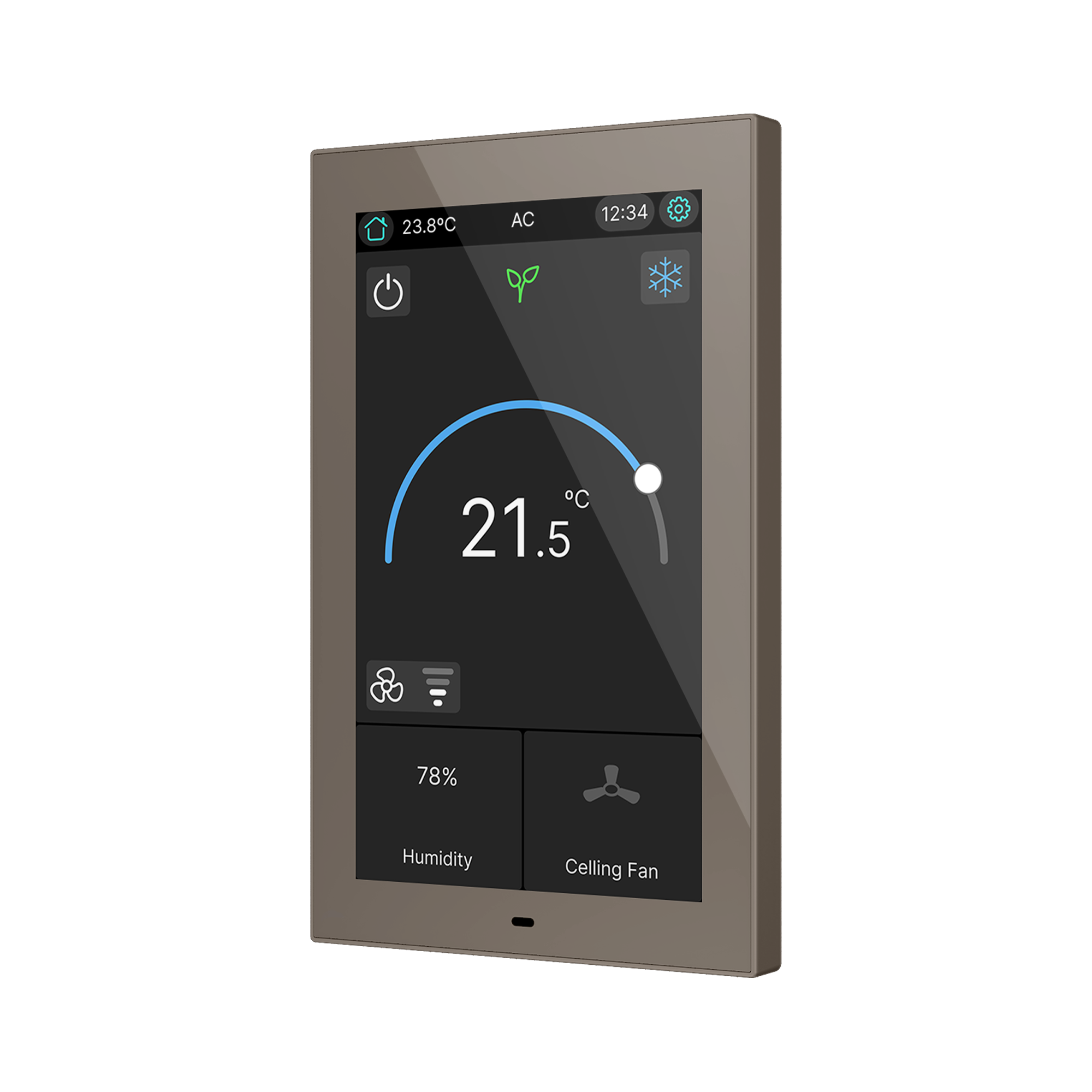

- 2 independent thermostats
KNX Functions
- Integrated KNX BCU (TP1-256)
- Data backup in case of KNX bus failure
- Automatic data recovery after bus restart
Inputs
- 4 analog/digital inputs
- Supports sensors, switches or detectors
Installation
- Flush mounting in standard EU, Swiss, IT, AU or US wall boxes
- Dimensions: 133.1 × 80.7 × 9.5 mm
- Weight: 188 g
