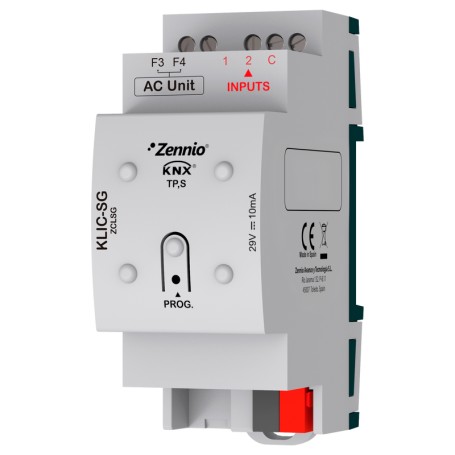

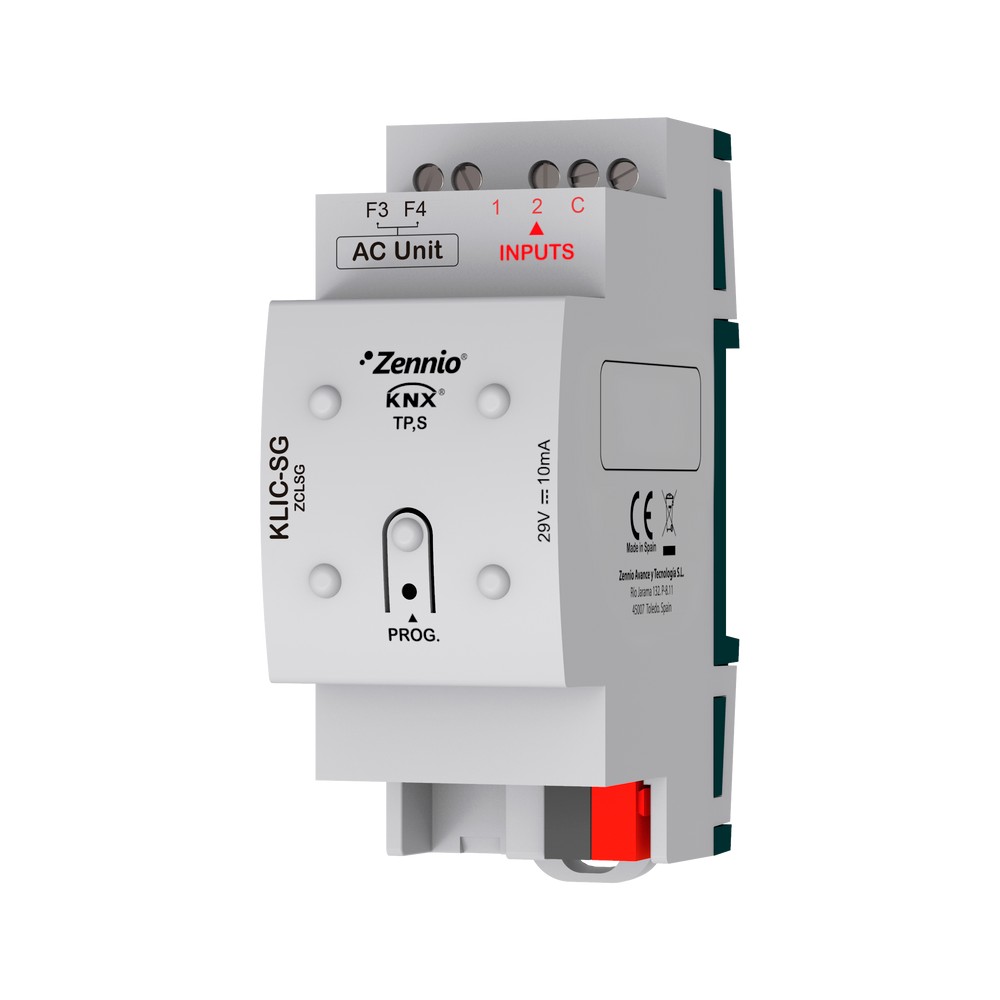

Zennio ZCLSG, Samsung KNX Gateway, IP20

Product Name: Samsung KNX Gateway

Manufacturer: Zennio

Manufacturer-Nr.: ZCLSG

Reference: 030300ZCLSG

Condition: New

Zennio gateway for bidirectional control of Samsung VRF and industrial air conditioners from the KNX system. 2 analogue-digital inputs for temperature probes, motion sensor or dry contact binary inputs (switches, sensors or push buttons) and 10 logical functions. 2 TE.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	67.00 Millimeter
Mounting options	DIN-Rail mounting
External power supply	Aucun requis
Width	90.00 Millimeter
Portection rating	IP20
Horizontal pitch (HP)	2.0000
Height	35.00 Millimeter
Voltage (typical)	29.00 Volt
Min. ambient temperature	0.00 Celsius
Input type	analog/digital
Voltage Range (Min.)	21.00 Volt
Number of inputs	2.0000
Max. ambient temperature	55.00 Celsius
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Power consumption (W)	0.14 Watt
Output Current	0.05 Ampere
Output Power	0.00 Watt
Actuator Type	Air Conditioning
Operation humidity	5 to 95% RH (without condensation)
Bus system	KNX TP (Twisted Pair)
Connection Type	KNX bus terminal + screw terminal
KNX Secure	No
