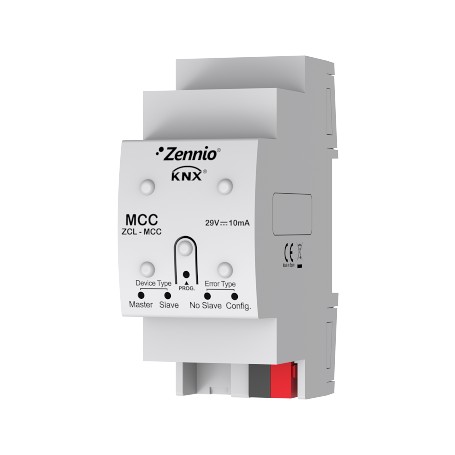

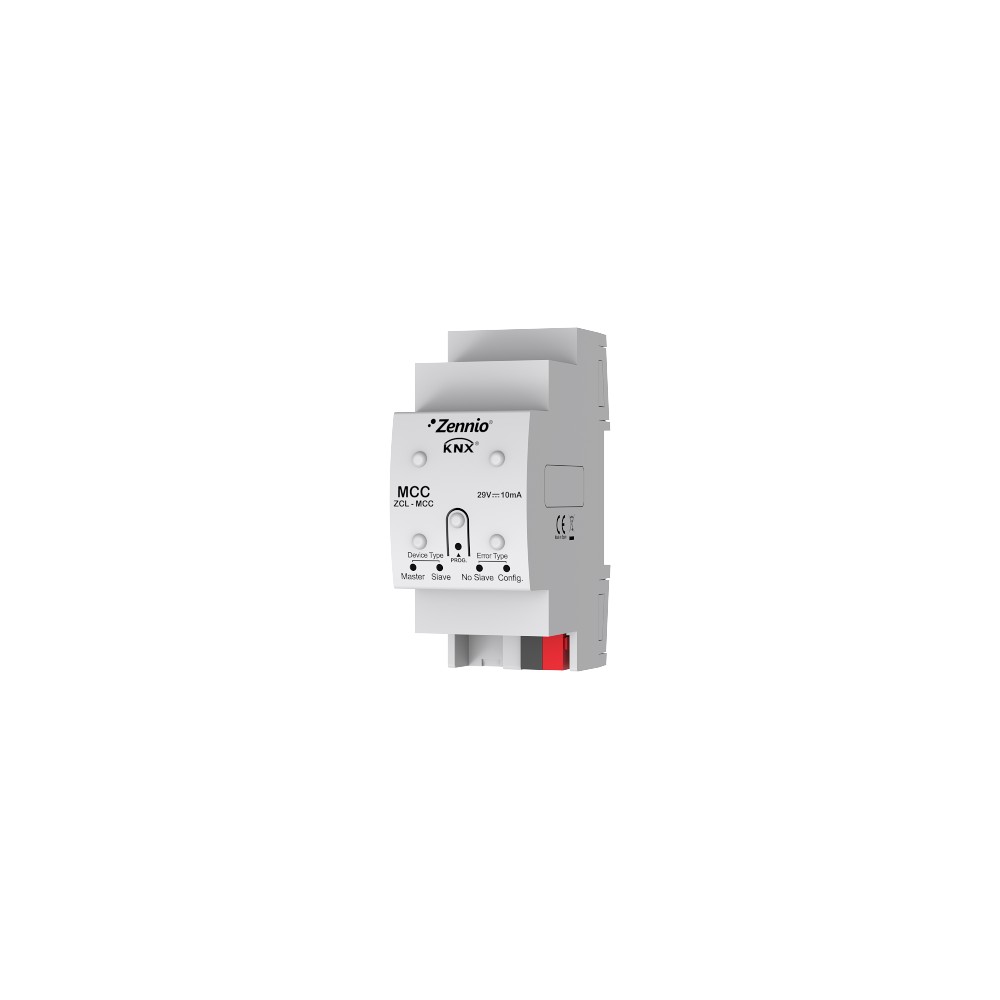

Zennio ZCL-MCC, climate controller, thermostat, master/slave

Multiroom Climate Controller

Zennio

ZCL-MCC

030300ZCLMCC

New

Multiroom Climate Controller - MCC. Climate Controller (2 TE) for up to 14 rooms with an independent thermostat for each room, which functions depending on the room status: free / occupied and not booked / booked. The device allows dynamic configuration for service facilities such as hotels, hospitals, etc. where central control via BMS (Building Management System) is required. Master/Slave function with backup device.

More details

Prices are only visible for registered customers. Create an account now.

Customer ratings and reviews

Nobody has posted a review yet

Data sheet

Mounting options DIN-Rail mounting
Length 95.00 Millimeter
Portection rating IP20
Horizontal pitch (HP) 2.0000
External power supply Aucun requis
Width 40.00 Millimeter
Voltage (typical) 29.00 Volt
Height 75.00 Millimeter
Min. ambient temperature 0.00 Celsius
Number of inputs 0.0000
Max. ambient temperature 55.00 Celsius
Voltage Range (Min.) 21.00 Volt
Voltage Range (Max.) 31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX Data backup
Power consumption (W) 0.17 Watt
Output Current 0.00 Ampere
Output Power 0.00 Watt
Actuator Type Switch Actuator
Operation humidity 5 to 95% RH (without condensation)
Connection Type KNX bus terminal
KNX Secure No
