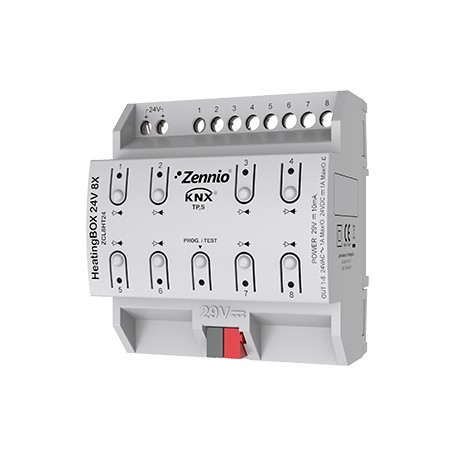

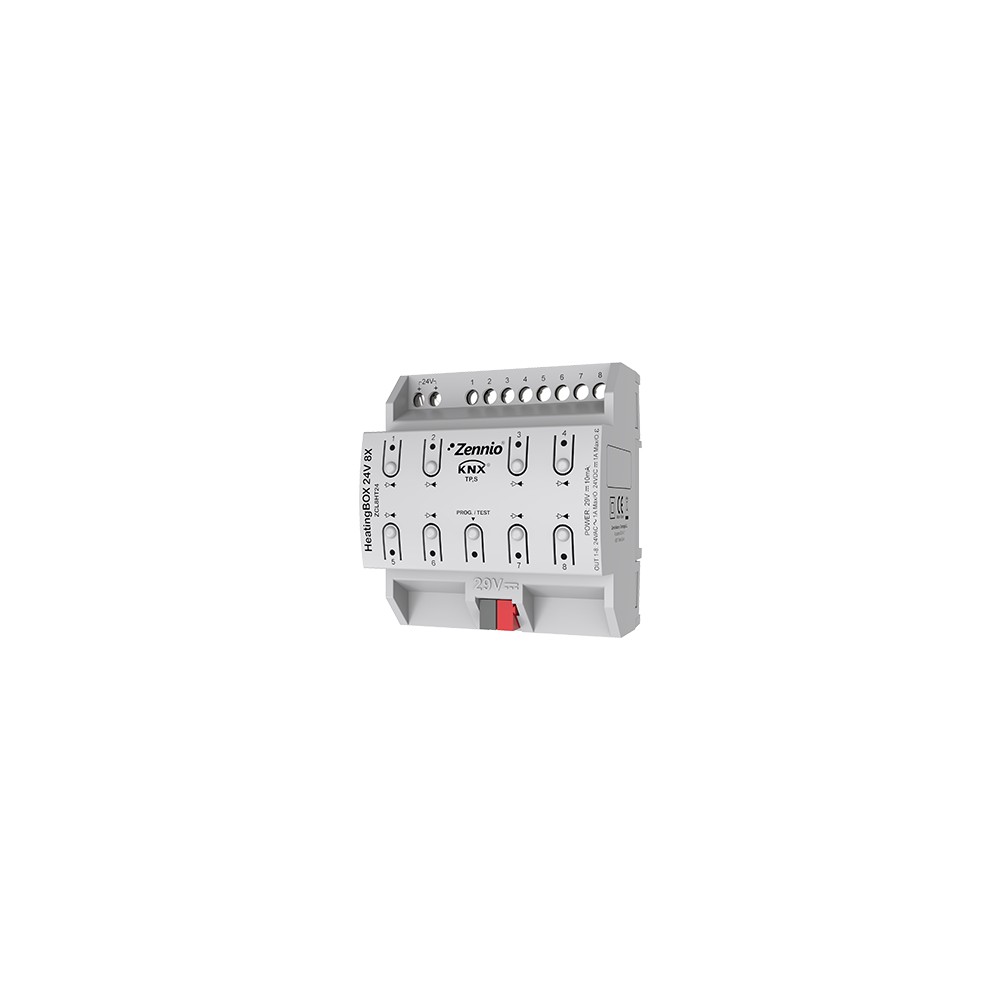

Zennio ZCL-8HT24, KNX heating actuator 8gang, 24V, thermostat

Product Name: HeatingBOX 24V 8X

Manufacturer: Zennio

Manufacturer-Nr.: ZCL-8HT24

Reference: 030300ZCL-8HT24

GTIN: 8411080789822

Condition: New

Actuator for climate systems based on water pipes which allows the control of up to 8 outputs for on/off valves operated at 24 VAC/DC by means of mosfets with protection against overload/short-circuit. It includes independent thermostat for each output, furthermore a module with 10 logical functions. It allows manual control of the outputs with status indication through LEDs.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	67.00 Millimeter
Mounting options	DIN-Rail mounting
External power supply	24VAC
Width	79.00 Millimeter
Portection rating	IP20
Height	90.00 Millimeter
Voltage (typical)	24.00 Volt
Min. ambient temperature	0.00 Celsius
Input type	analog/digital
Number of inputs	1.0000
Voltage Range (Min.)	21.00 Volt
Max. ambient temperature	55.00 Celsius
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	8.0000
Power consumption (W)	2.30 Watt
Output Current	0.01 Ampere
Output Power	0.00 Watt
Actuator Type	Heating Actuator
Operation humidity	5 to 95% RH (without condensation)
Connection Type	KNX bus terminal + screw terminal
KNX Secure	No
