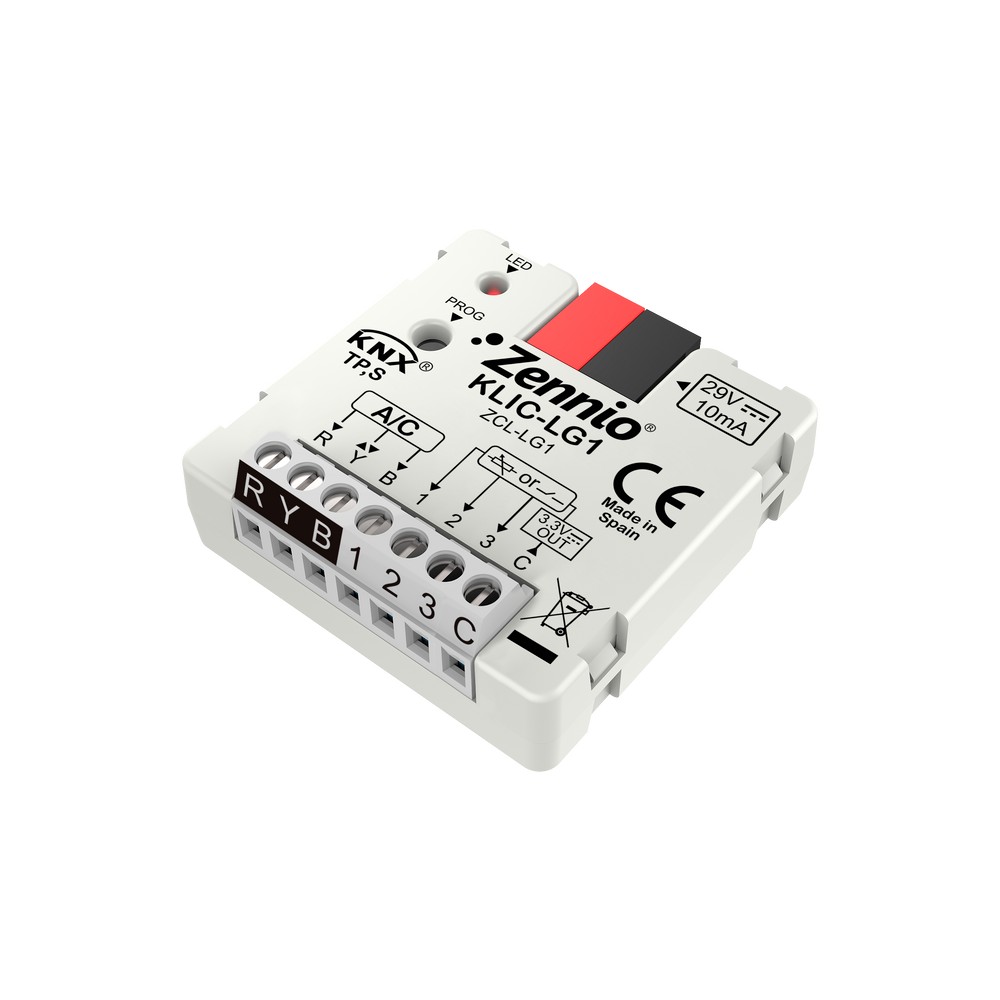

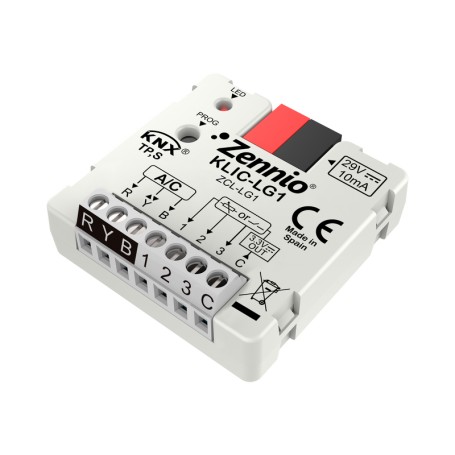

Zennio KLIC-LG1, KNX Gateway for LG air conditioning units

Product Name: KLIC-LG1

Manufacturer: Zennio

Manufacturer-Nr.: ZCL-LG1

Reference: 030300ZCLLG1

Condition: New

KNX gateway to control LG air conditioning units from KNX system in a bidirectional way. It includes

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Mounting options	flush-mounting, Mounting in flush-mounted distribution boxes and junction boxes
Length	39.10 Millimeter
Portection rating	IP20
External power supply	Aucun requis
Width	39.10 Millimeter
Voltage (typical)	29.00 Volt
Height	13.60 Millimeter
Min. ambient temperature	0.00 Celsius
Input type	analog/digital
Max. ambient temperature	55.00 Celsius
Voltage Range (Min.)	21.00 Volt
Number of inputs	3.0000
Voltage Range (Max.)	29.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Output type	digital
Number of outputs	3.0000
Power consumption (W)	0.12 Watt
Output Current	0.00 Ampere
Output Power	0.00 Watt
Actuator Type	Heating Actuator, Air Conditioning
Operation humidity	5 to 95% RH (without condensation)
Connection Type	screwed, KNX bus terminal
KNX Secure	No

More info

Downloads

Data sheet (EN)
KLIC-LG1

Data sheet (FR)
KLIC-LG1

Manual (EN)
KLIC-LG1

Manual (FR)
KLIC-LG1

3 analog-digital inputs for temperature probes, motion sensor or dry contact binary inputs (switches, sensors or push buttons) and 10 logical functions.
