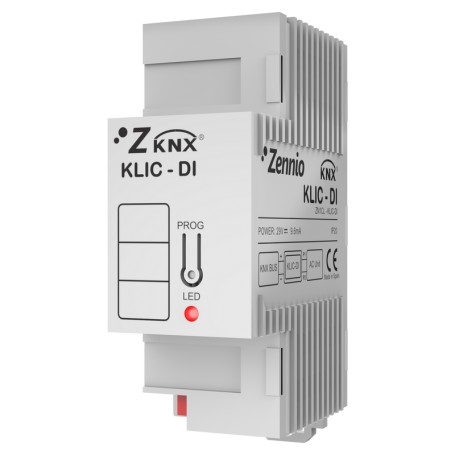

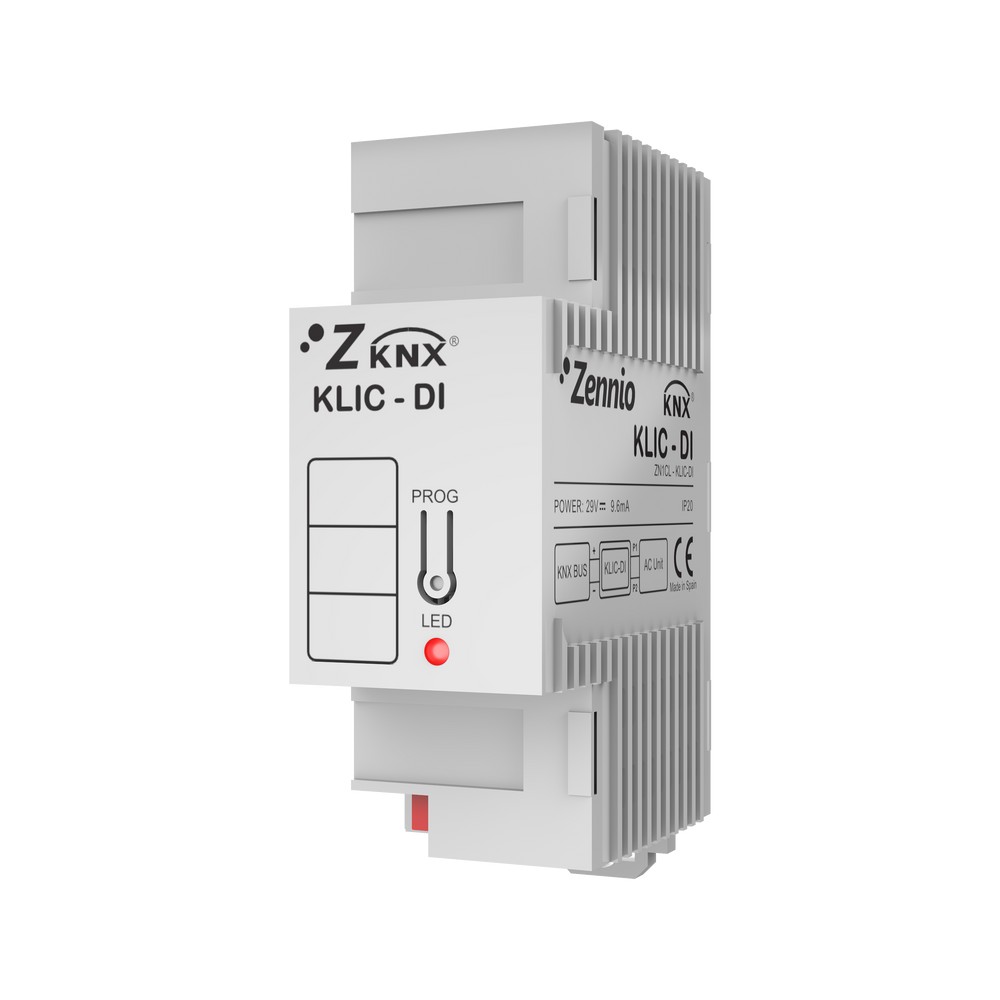

Zennio ZN1CL-KLIC-DI, KNX Interface, Daikin VRV/SKY, REG

Product Name: KLIC-DI

Manufacturer: Zennio

Manufacturer-Nr.: ZN1CL-KLIC-DI

Reference: 030300ZN1CLKLICDI

GTIN: 8411080789907

Condition: New

KLIC-DI. DAIKIN-KNX GATEWAY (INDUSTRIAL RANGE)

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Mounting options	DIN-Rail mounting
Length	95.00 Millimeter
External power supply	Aucun requis
Width	40.00 Millimeter
Portection rating	IP20
Horizontal pitch (HP)	2.0000
Voltage (typical)	29.00 Volt
Height	75.00 Millimeter
Min. ambient temperature	0.00 Celsius
Max. ambient temperature	55.00 Celsius
Number of inputs	0.0000
Voltage Range (Min.)	21.00 Volt
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	1.0000
Power consumption (W)	0.24 Watt
Output Current	0.00 Ampere
Output Power	0.00 Watt
Actuator Type	Heating Actuator
Operation humidity	5 to 95% RH (without condensation)
Recommended cable section	0.00 Square_millimeter
Connection Type	screwed
KNX Secure	No

More info

Downloads

Data sheet (DE)
KLIC-DI

KLIC-DI. KNX bus to commercial and industrial Daikin units interface. 2 DIN rail units. KLIC-DI is a bidirectional communication interface for integrating commercial and industrial air-conditioning units manufactured by Daikin with KNX.
