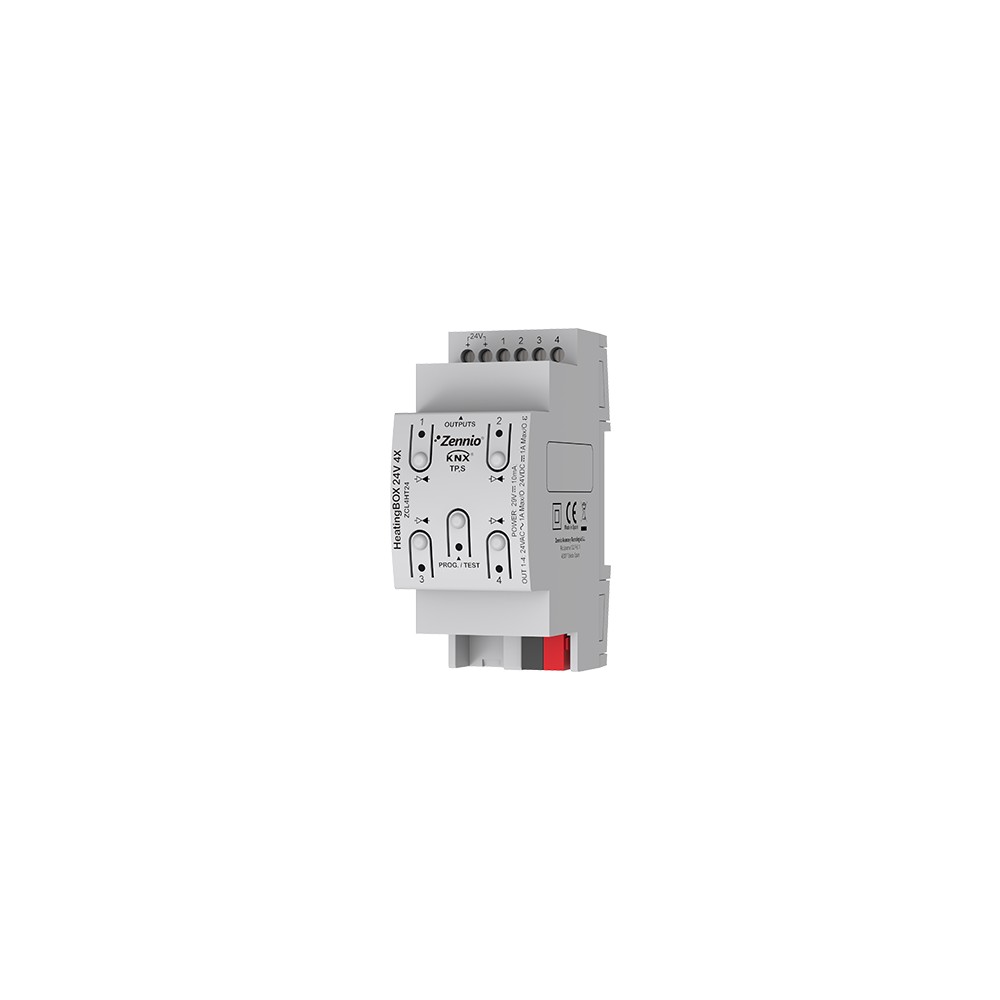

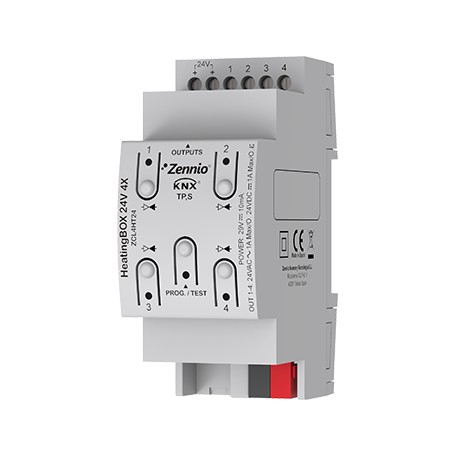

Zennio ZCL-4HT24 KNX heating actuator 4gang, 24V, thermostat

Product Name: HeatingBOX 24V 4X

Manufacturer: Zennio

Manufacturer-Nr.: ZCL-4HT24

Reference: 030300ZCL-4HT24

GTIN: 8411080789815

Condition: New

Actuator for climate systems based on water pipes which allows the control of up to 4 outputs for on/off valves operated at 24 VAC/DC by means of mosfets with protection against overload/short-circuit. It includes independent thermostat for each output, furthermore a module with 10 logical functions. It allows manual control of the outputs with status indication through LEDs.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	67.00 Millimeter
Mounting options	DIN-Rail mounting
Portection rating	IP20
External power supply	24VAC
Width	36.00 Millimeter
Voltage (typical)	29.00 Volt
Height	90.00 Millimeter
Min. ambient temperature	0.00 Celsius
Max. ambient temperature	55.00 Celsius
Number of inputs	1.0000
Voltage Range (Min.)	21.00 Volt
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	4.0000
Power consumption (W)	1.70 Watt
Output Current	6.00 Ampere
Output Power	0.00 Watt
Actuator Type	Heating Actuator
Operation humidity	5 to 95% RH (without condensation)
Connection Type	screwed
KNX Secure	No
