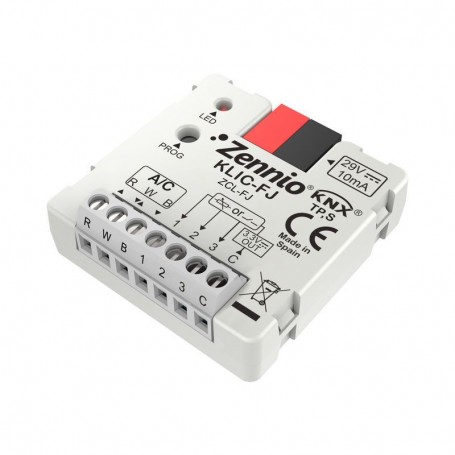

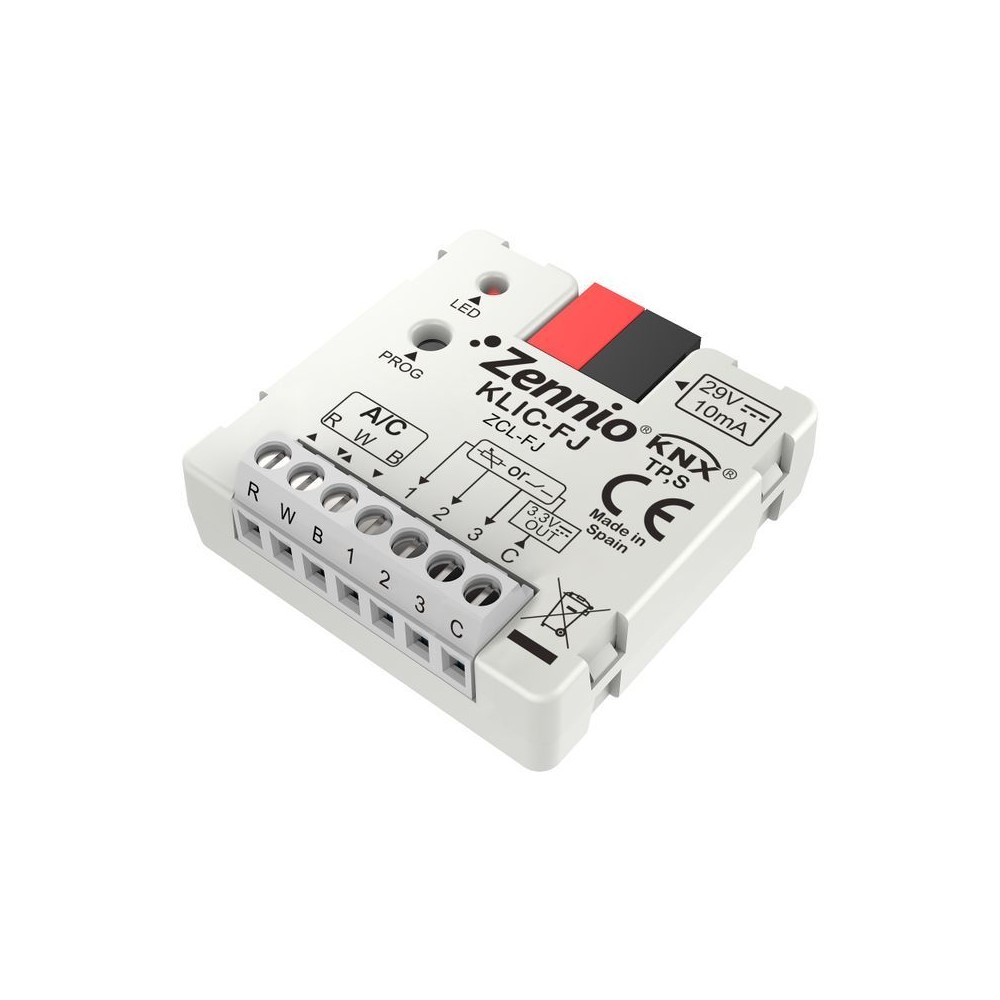

Zennio ZCL-FJ, interface for Fujitsu air conditioners

Product Name: KLIC-FJ

Manufacturer: Zennio

Manufacturer-Nr.: ZCL-FJ

Reference: 030300ZCLFJ

GTIN: 8411080789938

Condition: New

Zennio gateway to control Fujitsu, General, Hiyasu and Fuji Electric air conditioning units from KNX system in a bidirectional way. It includes 3 analog-digital inputs for temperature probes, motion sensor or dry contact binary inputs (switches, sensors or push buttons) and 10 logical functions. Accessories: temperature probe and motion sensor.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Mounting options	flush-mounting, Mounting in flush-mounted distribution boxes and junction boxes
Length	39.00 Millimeter
External power supply	Aucun requis
Width	39.00 Millimeter
Portection rating	IP20
Height	14.00 Millimeter
Voltage (typical)	29.00 Volt
Min. ambient temperature	0.00 Celsius
Input type	analog/digital
Number of inputs	3.0000
Voltage Range (Min.)	21.00 Volt
Max. ambient temperature	55.00 Celsius
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Power consumption (W)	0.00 Watt
Output Current	0.00 Ampere
Output Power	0.00 Watt
Actuator Type	Air Conditioning
Operation humidity	5 to 95% RH (without condensation)
Connection Type	Terminal block, screwed
KNX Secure	No
