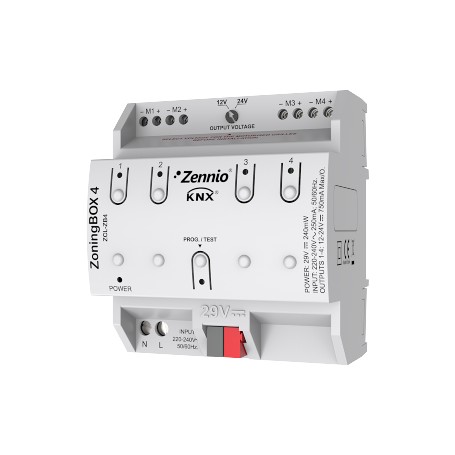

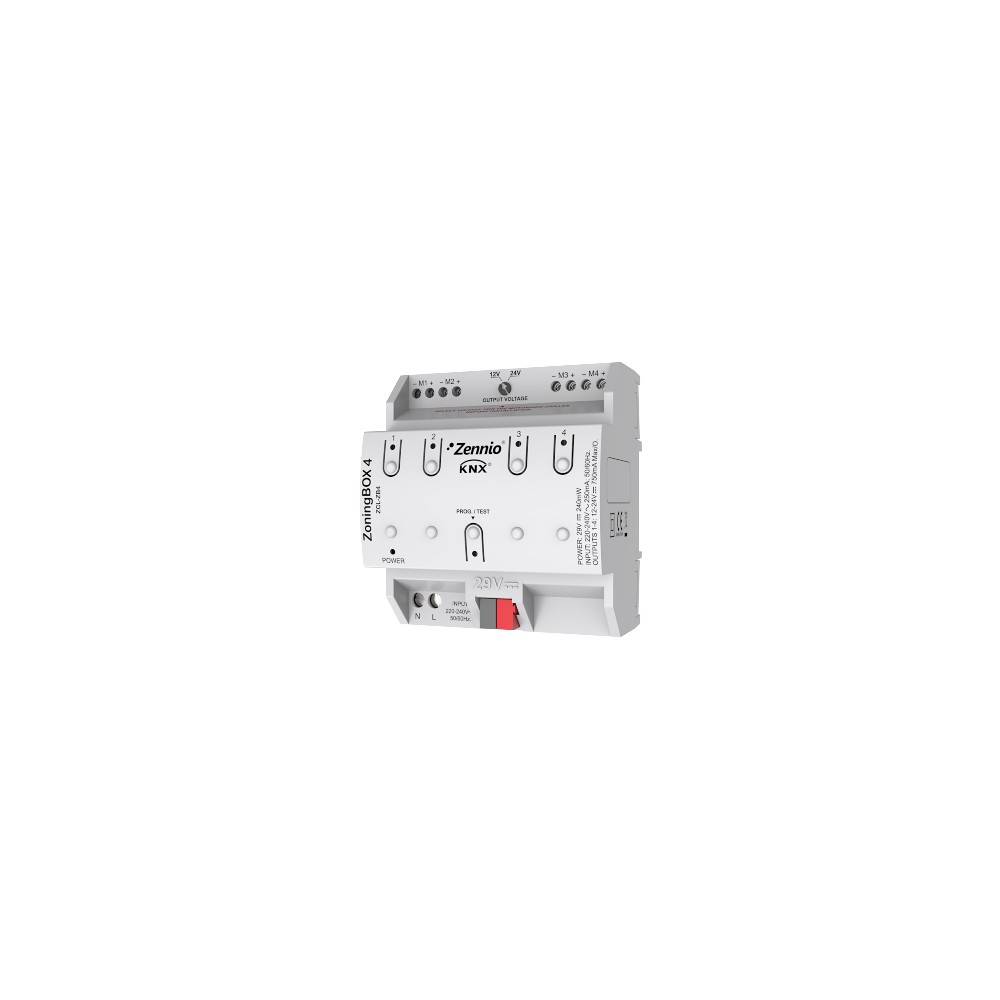

Zennio ZCL-ZB4, climate actuator, 4 zones, 12/24VDC

Product Name: ZoningBOX 4

Manufacturer: Zennio

Manufacturer-Nr.: ZCL-ZB4

Reference: 030300ZCLZB4

GTIN: 8411080789853

Condition: New

ZoningBOX 4. Zoning ducted Air-Conditioning actuator for up to 4 zones

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Mounting options	DIN-Rail mounting
Length	100.00 Millimeter
Portection rating	IP20
External power supply	230VAC
Width	94.00 Millimeter
Voltage (typical)	29.00 Volt
Height	72.00 Millimeter
Min. ambient temperature	0.00 Celsius
Max. ambient temperature	45.00 Celsius
Voltage Range (Min.)	21.00 Volt
Number of inputs	0.0000
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	4.0000
Power consumption (W)	0.17 Watt
Output Current	0.75 Ampere
Output Power	0.00 Watt
Actuator Type	Heating Actuator
Operation humidity	5 to 95% RH (without condensation)
Recommended cable section	2.50 Square_millimeter
Connection Type	screwed, KNX bus terminal
KNX Secure	No

More info

Downloads

Data sheet (EN)
ZoningBOX 4

Data sheet (FR)
ZoningBOX 4

Manual (EN)
ZoningBOX 4

Manual (FR)
ZoningBOX 4

ZoningBOX 4/ZoningBOX 6. Actuator for DIN rail (4.5 units) for air conditioning climate systems with zoning. It controls motorized 12/24VDC grilles in up to 4/6 zones (up to 2 grilles per zone). Temperature management in up to 12 zones with additional ZoningBOX 4/6 modules to activate the additional zones. Management of settings for the air conditioning climate systems (up to two units): on/off, setpoint, mode, fan speed, according to the zones enabled. Manual control of outputs and LED indicators of movement of the grilles.
