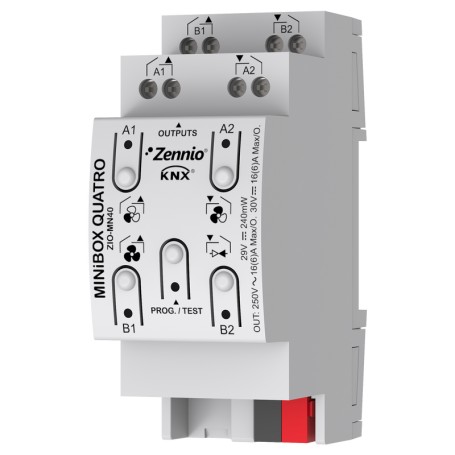

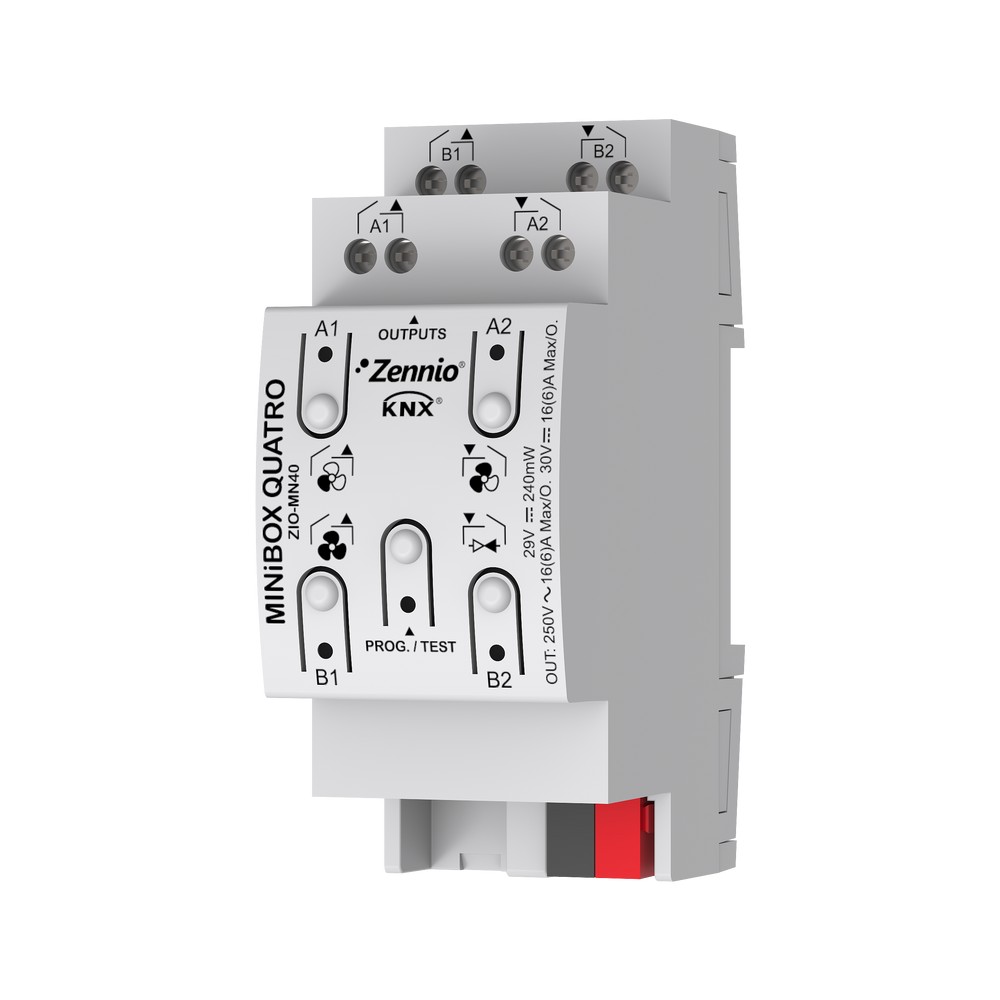

Zennio ZIO-MN40, KNX multifunction actuator, 4 outputs, 16 A

MINiBOX QUATRO

Zennio

ZIO-MN40

030300ZIOMN40

New

The KNX multifunction actuator Zennio ZIO-MN40 for top hat rail mounting (2 TE) has 4 outputs (16A C-load) which allow various configurations. Whether as KNX blind channels, individual outputs or 2-pipe fan-coil controllers. Manual operation is possible via the housing buttons. A logic module is also integrated.

More details

Prices are only visible for registered customers. Create an account now.

Customer ratings and reviews

Nobody has posted a review yet

Data sheet

Length 95.00 Millimeter
Mounting options DIN-Rail mounting
External power supply Aucun requis
Horizontal pitch (HP) 2.0000
Width 40.00 Millimeter
Portection rating IP20
Height 75.00 Millimeter
Voltage (typical) 29.00 Volt
Input type Keine
Min. ambient temperature 0.00 Celsius
Max. ambient temperature 55.00 Celsius
Voltage Range (Min.) 21.00 Volt
Number of inputs 0.0000
Voltage Range (Max.) 31.00 Volt
Output type analog
Résponse devant une récupération de perte d'alimentation KNX Data backup
Number of outputs 4.0000
Power consumption (W) 0.22 Watt
Output Current 16.00 Ampere
Output Power 4000.00 Watt
Actuator Type Switch Actuator, Shutter Actuator, Multifunction Actuator
Operation humidity 5 to 95% RH (without condensation)
Recommended cable section 4.00 Square_millimeter
Connection Type screwed
KNX Secure No
