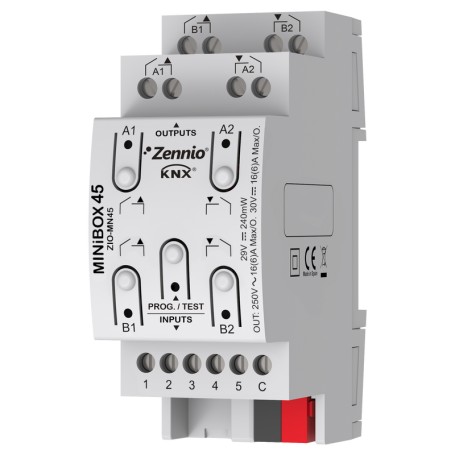

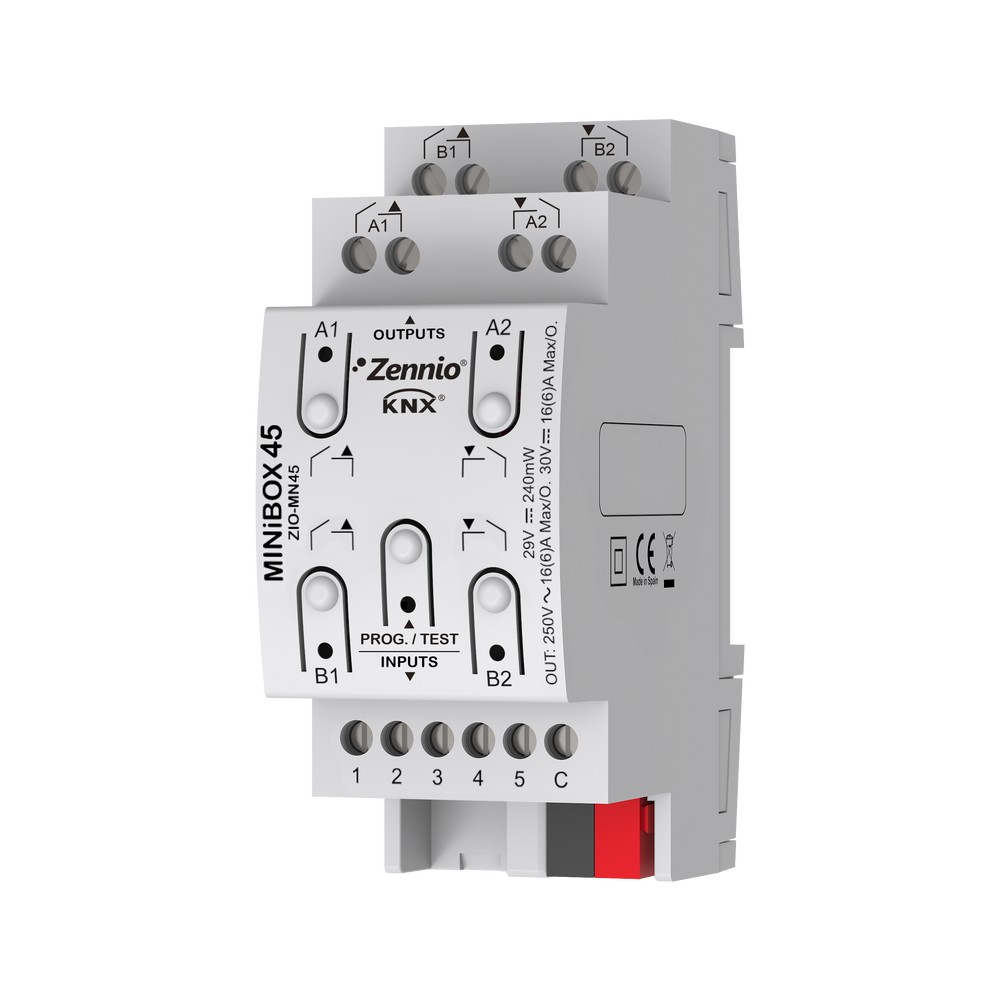

Zennio ZIO-MN45, KNX multifunction actuator, 4 outputs / 5 inputs, 16A

MINiBOX 45

Zennio

ZIO-MN45

030300ZIOMN45

New

Zennio ZIO-MN45 is a KNX Multifunction actuator for DIN rail (2 units) with 4 outputs (16A C-load) and 5 analog-digital inputs which offers multiple configurations as shutter channels and individual outputs.

More details

Prices are only visible for registered customers. Create an account now.

Customer ratings and reviews

Nobody has posted a review yet
Rate it

Data sheet

Mounting options DIN-Rail mounting
Length 95.00 Millimeter
Portection rating IP20
External power supply Aucun requis
Width 40.00 Millimeter
Horizontal pitch (HP) 2.0000
Voltage (typical) 29.00 Volt
Height 75.00 Millimeter
Input type analog/digital
Min. ambient temperature 0.00 Celsius
Max. ambient temperature 55.00 Celsius
Voltage Range (Min.) 21.00 Volt
Number of inputs 5.0000
Voltage Range (Max.) 31.00 Volt
Output type analog
Résponse devant une récupération de perte d'alimentation KNX Data backup
Number of outputs 4.0000
Power consumption (W) 0.22 Watt
Output Current 16.00 Ampere
Output Power 4000.00 Watt
Actuator Type Multifunction Actuator, Switch Actuator, Shutter Actuator
Operation humidity 5 to 95% RH (without condensation)
Recommended cable section 4.00 Square_millimeter
Connection Type screwed
KNX Secure No

More info

It allows manual control of its outputs thanks to the push buttons on the cover and includes a logical function module. MINiBOX 45 also incorporates 5 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs, as well as four room thermostats to control heating/cooling systems.

Accessories: Temperature probes, motion sensor and AC/DC shutter adapters.
