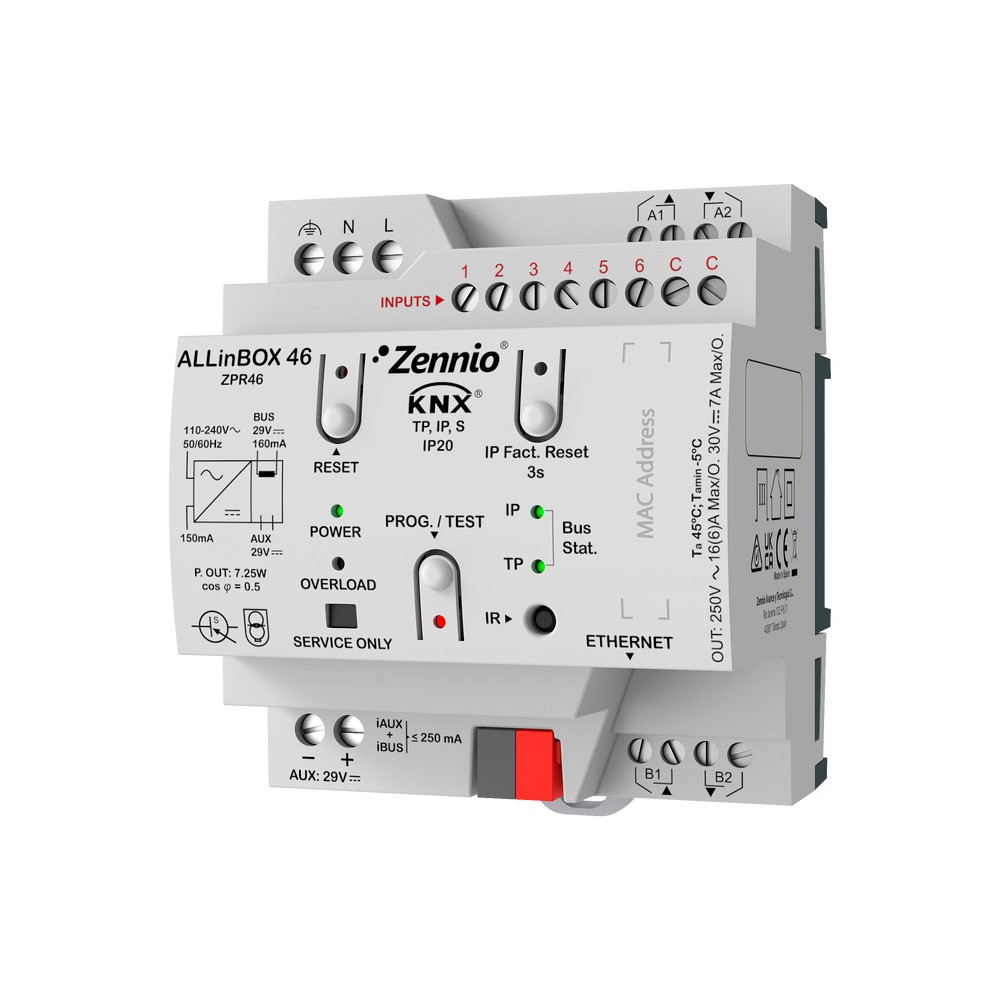

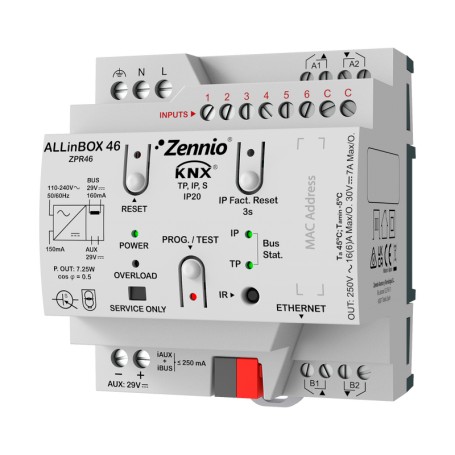

Zennio ZPR46, ALLinBOX 46, power supply, IP interface

Product Name: ALLinBOX 46

Manufacturer: Zennio

Manufacturer-Nr.: ZPR46

Reference: 030300ZPR46

Condition: New

The starting point for most projects incorporating control and monitoring functionalities. Multifunction device that integrates a 160 mA KNX power supply, KNX-IP Interface, 4 independent thermostats, logical module, 6 analog/digital inputs and 4 relay outputs (16 A C-Load) in only 4.5 DIN rail units. Offers multiple configuration options as individual outputs, shutter channels or fan coil controller (2 pipes).

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	67.00 Millimeter
Mounting options	DIN-Rail mounting
Horizontal pitch (HP)	4.5000
External power supply	110-240VAC
Width	90.00 Millimeter
Portection rating	IP20
Height	79.00 Millimeter
Voltage (typical)	29.00 Volt
Min. ambient temperature	-20.00 Celsius
Input type	analog/digital
Max. ambient temperature	55.00 Celsius
Voltage Range (Min.)	21.00 Volt
Number of inputs	6.0000
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Power consumption (W)	0.00 Watt
Output Current	0.00 Ampere
Output Power	0.00 Watt
Actuator Type	Multifunction Actuator
Operation humidity	5 to 95% RH (without condensation)
Bus system	KNX TP (Twisted Pair)
Connection Type	KNX bus terminal + screw terminal
KNX Secure	No
