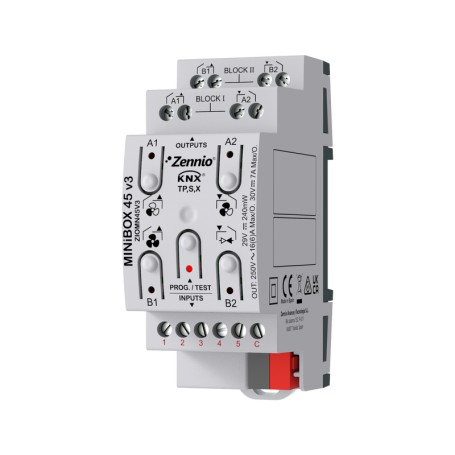

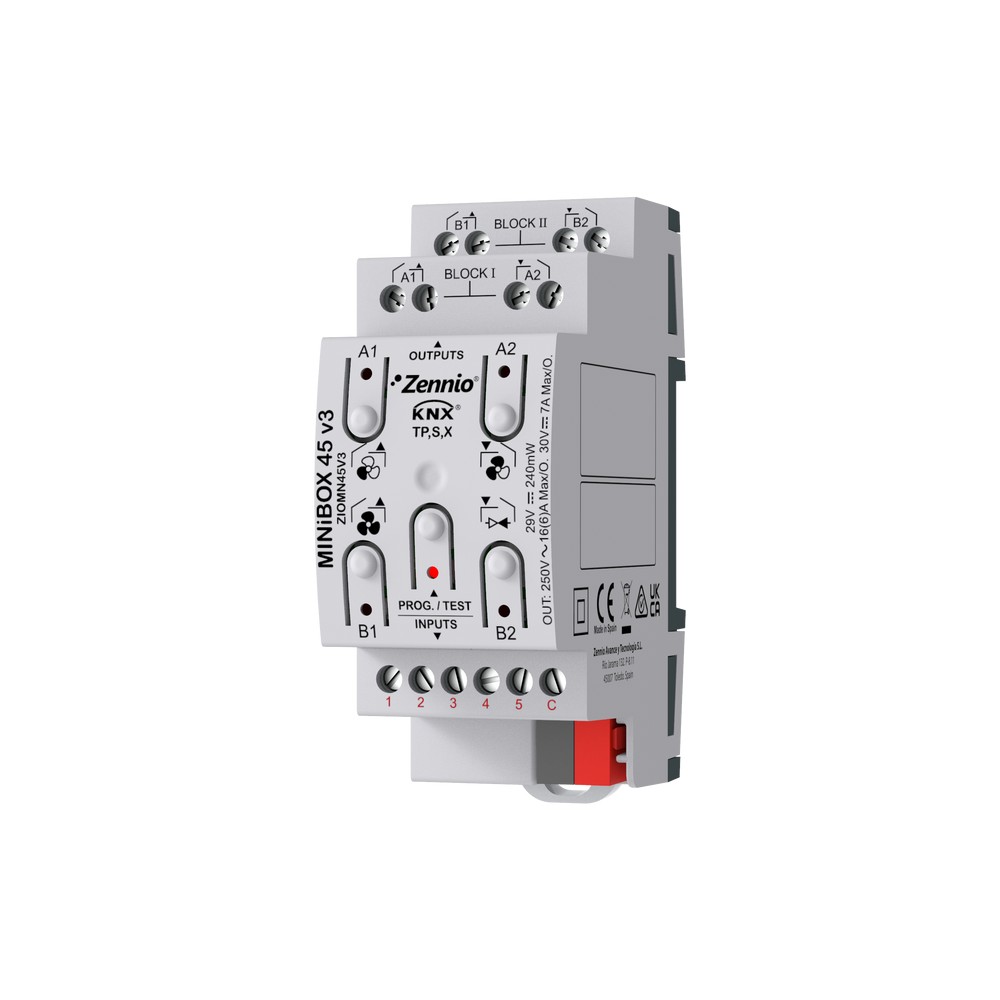

Zennio ZIOMN45V3, Multifunction actuator, KNX Secure, 4 outputs 16A

Product Name: MINiBOX 45 v3

Manufacturer: Zennio

Manufacturer-Nr.: ZIOMN45V3

Reference: B-003-150329

GTIN: 8411080789150

Condition: New

Multifunction actuator for DIN-rail (2 units) with 4 outputs (16 A C-load) which offer multiple configurations as shutter channels or individual outputs or even 2-pipes fan coil controller.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	67.00 Millimeter
Mounting options	DIN-Rail mounting
Horizontal pitch (HP)	2.0000
External power supply	Aucun requis
Width	90.00 Millimeter
Portection rating	IP20
Height	36.00 Millimeter
Voltage (typical)	29.00 Volt
Min. ambient temperature	0.00 Celsius
Max. ambient temperature	55.00 Celsius
Number of inputs	0.0000
Voltage Range (Min.)	21.00 Volt
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	4.0000
Power consumption (W)	0.00 Watt
Output Current	0.00 Ampere
Output Power	0.00 Watt
Actuator Type	Multifunction Actuator
Operation humidity	5 to 95% RH (without condensation)
Recommended cable section	0.00 Square_millimeter
Bus system	KNX TP (Twisted Pair)
Connection Type	KNX bus terminal + screw terminal
KNX Secure	Yes
