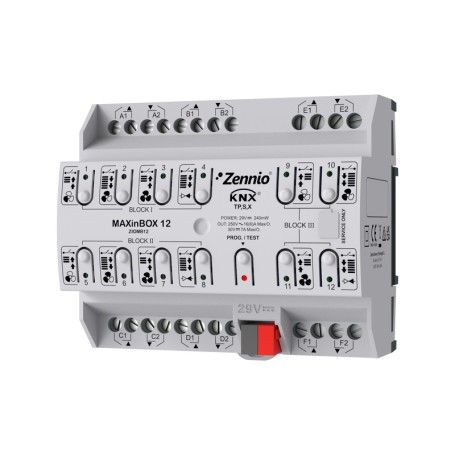

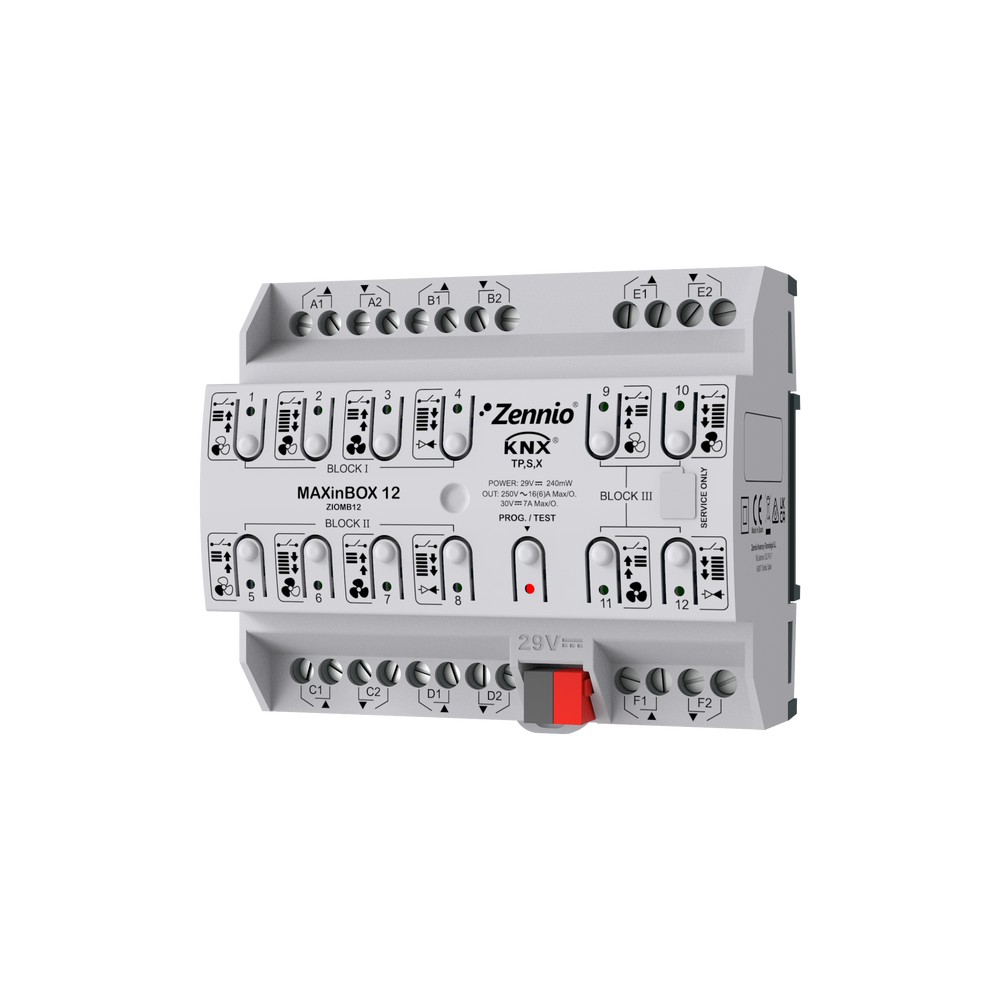

Zennio ZIOMB12, KNX multifunction actuator, KNX Secure, 12 outputs, 16A, IP20

Product Name: MAXinBOX 12

Manufacturer: Zennio

Manufacturer-Nr.: ZIOMB12

Reference: B-003-150283

GTIN: 8411080789242

Condition: New

KNX multifunction actuator for mounting as a DRA device (6 TE) that allows the configuration of up to 6 blind channels, up to 12 individual outputs (16 A) and up to 3 blocks for 2-pipe fan coil control.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	68.00 Millimeter
Mounting options	DIN-Rail mounting
Horizontal pitch (HP)	6.0000
External power supply	Aucun requis
Width	90.00 Millimeter
Portection rating	IP20
Height	105.00 Millimeter
Voltage (typical)	29.00 Volt
Min. ambient temperature	0.00 Celsius
Voltage Range (Min.)	21.00 Volt
Max. ambient temperature	55.00 Celsius
Number of inputs	0.0000
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	12.0000
Power consumption (W)	0.00 Watt
Output Current	0.00 Ampere
Output Power	0.00 Watt
Actuator Type	Multifunction Actuator
Operation humidity	5 to 95% RH (without condensation)
Recommended cable section	0.00 Square_millimeter
Bus system	KNX TP (Twisted Pair)
Connection Type	KNX bus terminal + screw terminal
KNX Secure	Yes
