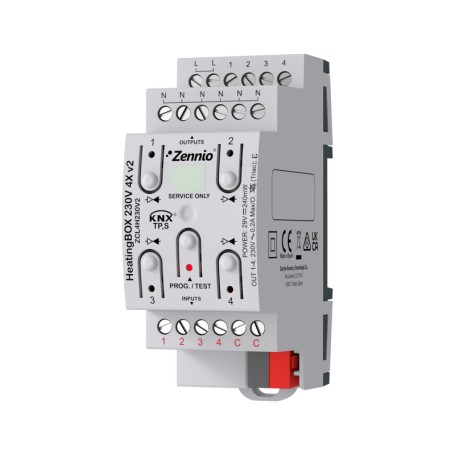

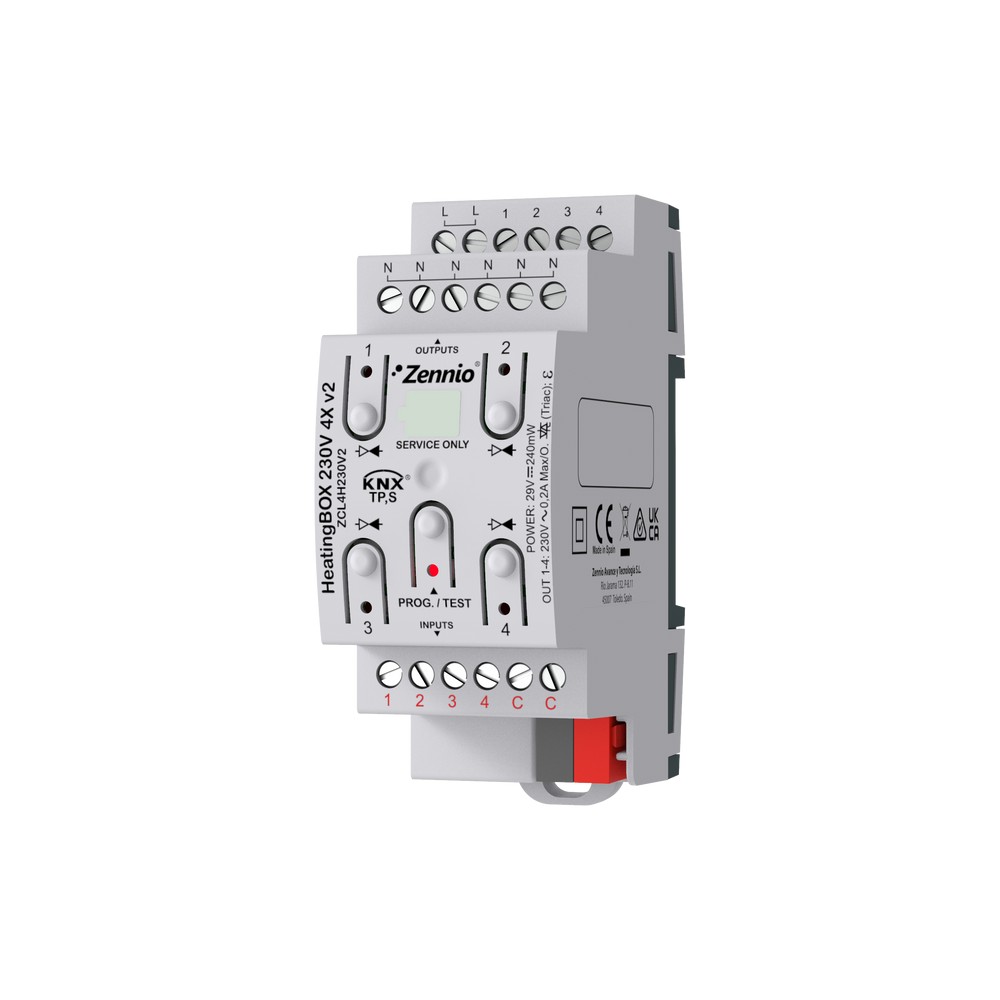

Zennio ZCL4H230V2, Heating actuator, 230V, 2.5A, Thermostat

HeatingBOX 230V 4X v2

Zennio

ZCL4H230V2

030300ZCL4H230V2

New

Actuator for climate systems based on water pipes which allows the control of up to 4 outputs for on/off valves operated at 230 VAC by means of triacs with short-circuit protection.

More details

Prices are only visible for registered customers. Create an account now.

Customer ratings and reviews

Nobody has posted a review yet

Data sheet

Length 67.00 Millimeter
Mounting options DIN-Rail mounting
External power supply 12VDC - 30VDC (konst.)
Width 90.00 Millimeter
Portection rating IP20
Height 36.00 Millimeter
Voltage (typical) 29.00 Volt
Input type analog/digital
Min. ambient temperature 0.00 Celsius
Voltage Range (Min.) 21.00 Volt
Number of inputs 4.0000
Max. ambient temperature 55.00 Celsius
Voltage Range (Max.) 31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX Data backup
Power consumption (W) 0.00 Watt
Output Current 0.00 Ampere
Output Power 0.00 Watt
Actuator Type Heating Actuator
Operation humidity 5 to 95% RH (without condensation)
Bus system KNX TP (Twisted Pair)
Connection Type KNX bus terminal + screw terminal
KNX Secure No
