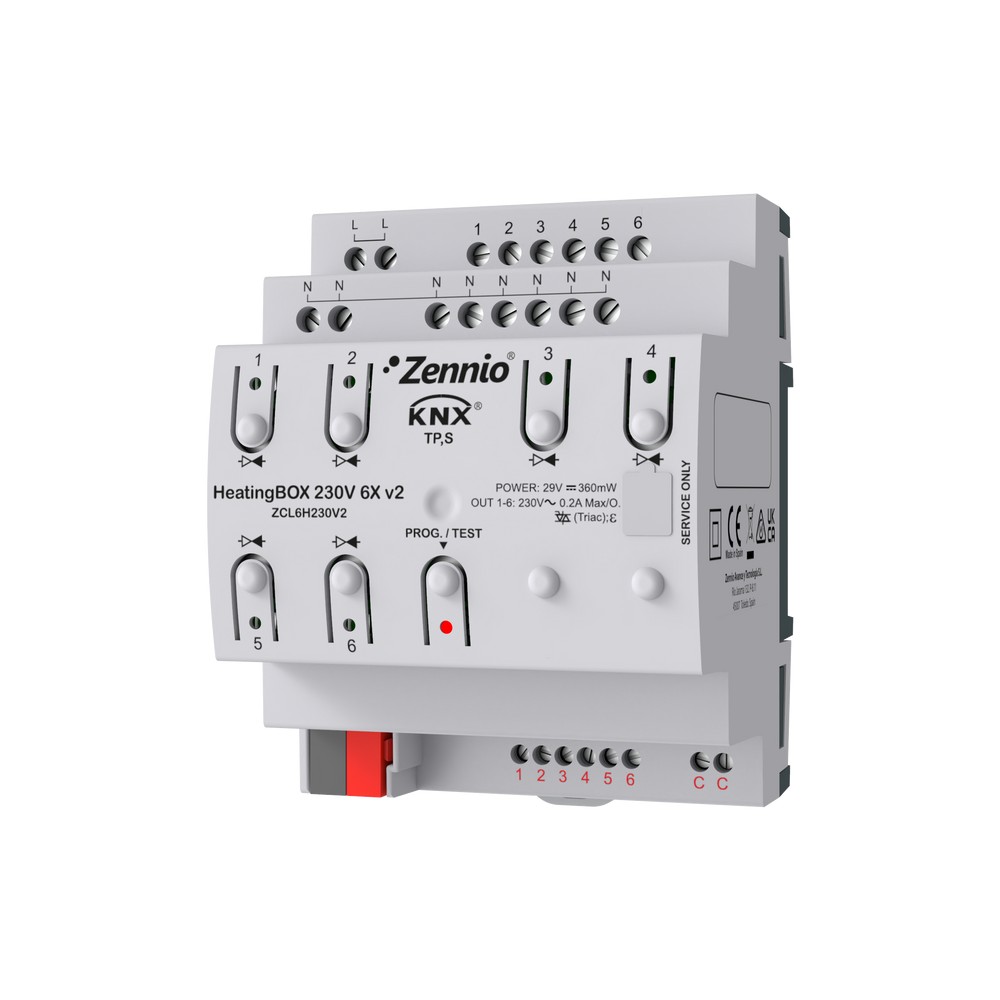

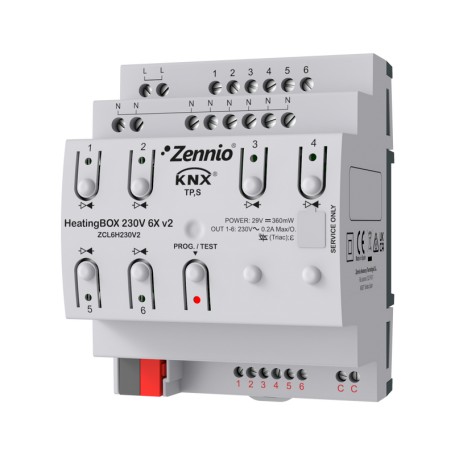

Zennio ZCL6H230V2, Heating actuator, 230V, Status display

Product Name: HeatingBOX 230V 6X v2

Manufacturer: Zennio

Manufacturer-Nr.: ZCL6H230V2

Reference: B-003-150273

GTIN: 8411080790149

Condition: New

Actuator for climate systems based on water pipes which allows the control of up to 6 outputs for on/off valves operated at 230 VAC by means of triacs with short-circuit protection.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	67.00 Millimeter
Mounting options	DIN-Rail mounting
External power supply	230VAC
Width	90.00 Millimeter
Portection rating	IP20
Voltage (typical)	29.00 Volt
Height	70.00 Millimeter
Min. ambient temperature	0.00 Celsius
Input type	analog/digital
Number of inputs	6.0000
Voltage Range (Min.)	21.00 Volt
Max. ambient temperature	55.00 Celsius
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	6.0000
Power consumption (W)	0.35 Watt
Output Current	0.01 Ampere
Output Power	0.00 Watt
Actuator Type	Heating Actuator
Operation humidity	5 to 95% RH (without condensation)
Bus system	KNX TP (Twisted Pair)
Connection Type	KNX bus terminal + screw terminal
KNX Secure	No
