Zennio ZPR1612V2, multifunctional actuator, 16 outputs, 12 inputs, (16A)

ALLinBOX 1612V2

Zennio

ZPR1612V2

030300ZPR1612V2

8411080788993

New

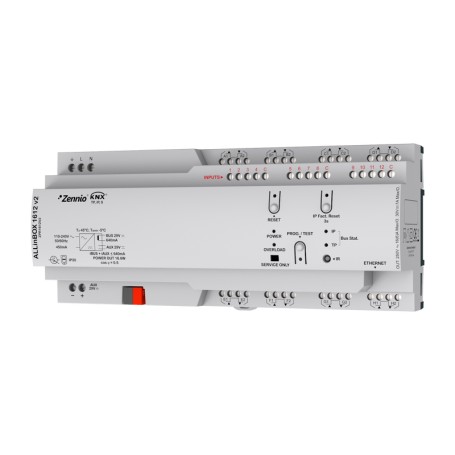

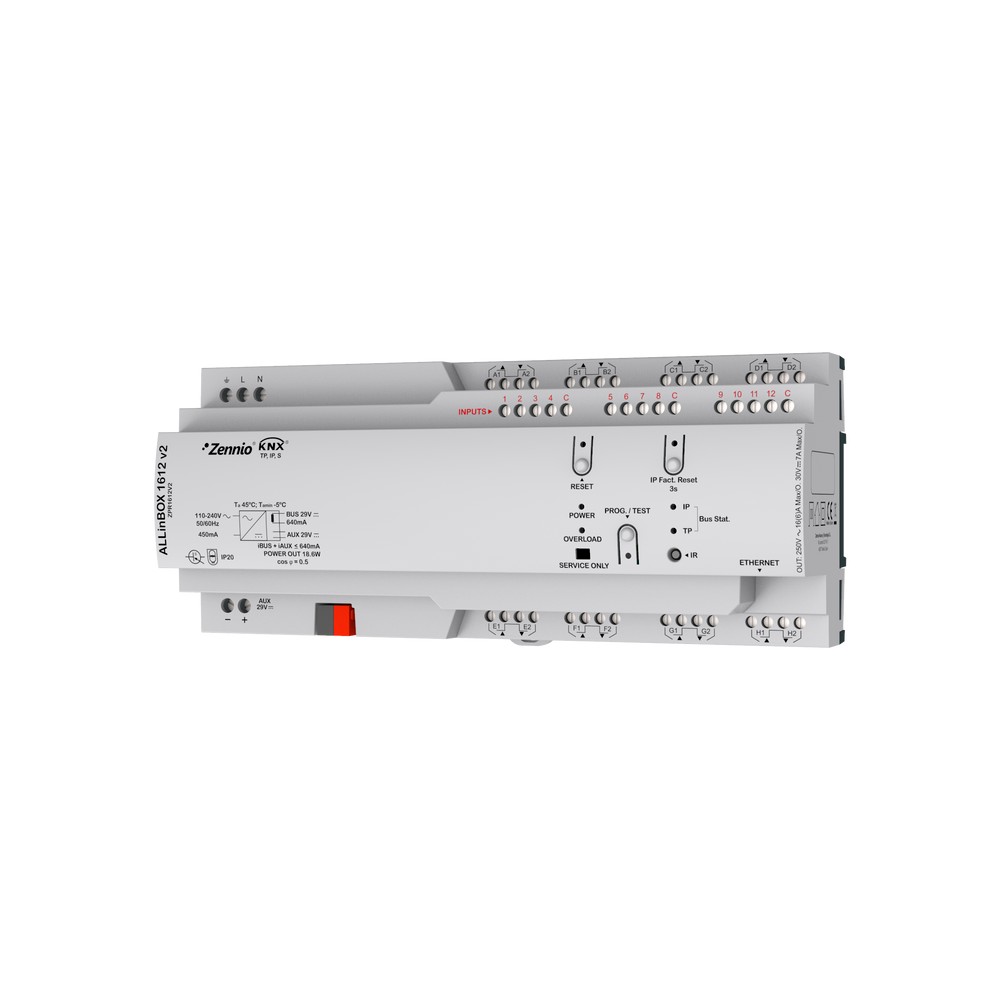

The Zennio ZPR1612V2 is a multifunctional actuator. This all in one actuator has 12 inputs and 16 outputs. The multifunction actuator needs a KNX power supply of 640mA.

More details

Prices are only visible for registered customers. Create an account now.

Customer ratings and reviews

Nobody has posted a review yet

Data sheet

Length 96.00 Millimeter
Mounting options DIN-Rail mounting
External power supply 110-240VAC
Width 210.00 Millimeter
Portection rating IP20
Voltage (typical) 29.00 Volt
Height 69.00 Millimeter
Min. ambient temperature -22.00 Celsius
Number of inputs 12.0000
Voltage Range (Min.) 21.00 Volt
Max. ambient temperature 50.00 Celsius
Voltage Range (Max.) 31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX Data backup
Number of outputs 16.0000
Power consumption (W) 0.00 Watt
Output Current 0.85 Ampere
Output Power 0.00 Watt
Actuator Type Multifunction Actuator
Operation humidity 5 to 85% RH (without condensation)
Connection Type KNX bus terminal + screw terminal
KNX Secure No
