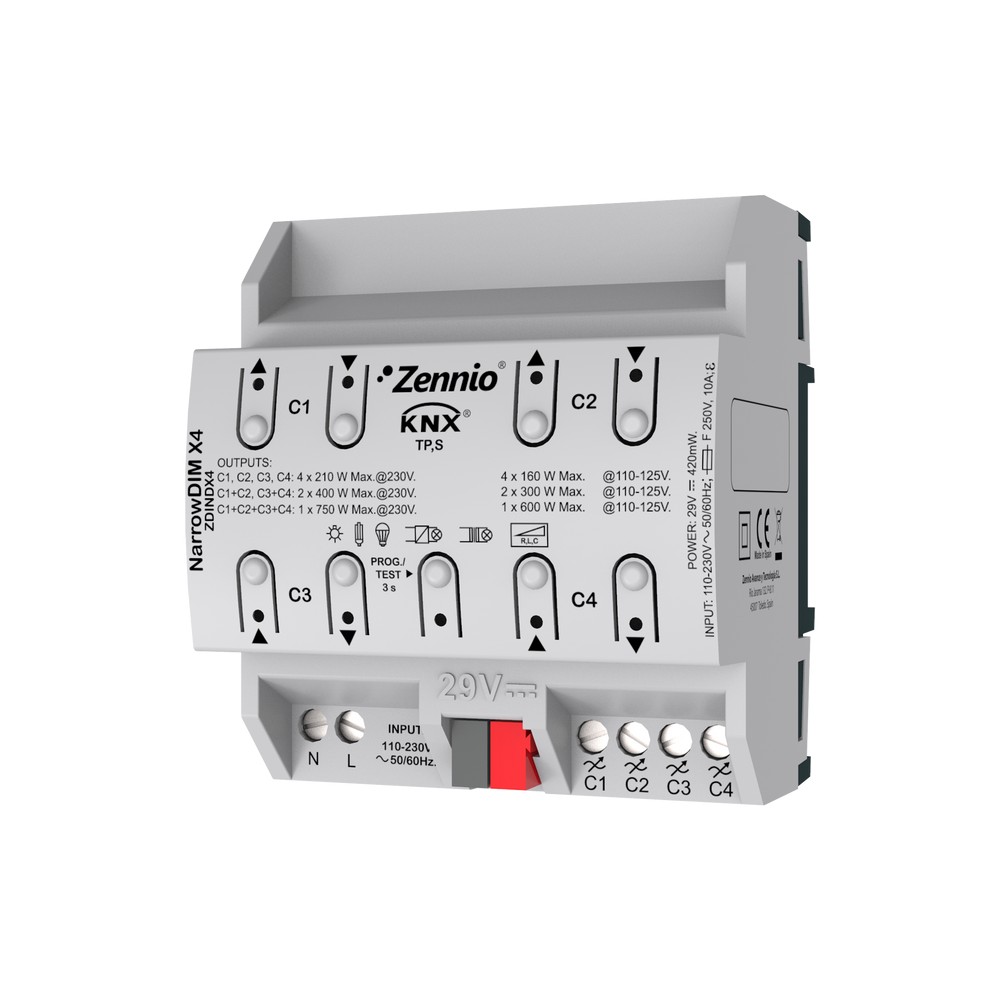

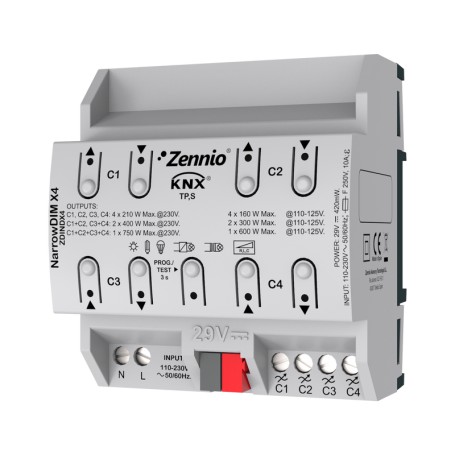

Zennio ZDINDX4, KNX universal dimmer, 4 channels, RLC, LED, CFL

Product Name: NarrowDIM X4

Manufacturer: Zennio

Manufacturer-Nr.: ZDINDX4

Reference: 030300ZDINDX4

GTIN: 8411080790880

Condition: New

Universal dimming actuator (RLC, LED, CFL *) for DIN-rail (4.5 units) with 4 channels for up to 210 W at 230 VAC (160 W at 110 VAC). It allows double channel connection, up to 400 W at 230 VAC (300 W at 110 VAC) and quad channel connection to control up to 750 W at 230 VAC (600 W at 110 VAC). Auto load type detection (RLC). Configurable dimming curves for LED and CFL. It allows manual control of its outputs thanks to the push buttons on the cover. It includes 10 independent logical functions. Error detection: short circuit, voltage surge, overheating, anomalous frequency, power failure, parameterization error.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Mounting options	DIN-Rail mounting, Panel Mount
Length	67.00 Millimeter
External power supply	230VAC
Width	90.00 Millimeter
Portection rating	IP20
Voltage (typical)	29.00 Volt
Height	79.00 Millimeter
Min. ambient temperature	-20.00 Celsius
Max. ambient temperature	55.00 Celsius
Number of inputs	1.0000
Voltage Range (Min.)	21.00 Volt
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Power consumption (W)	2500.00 Watt
Output Current	10.00 Ampere
Output Power	0.00 Watt
Actuator Type	Dimming Actuator
Operation humidity	5 to 95% RH (without condensation)
Bus system	KNX TP (Twisted Pair)
Connection Type	KNX bus terminal + screw terminal
KNX Secure	No
