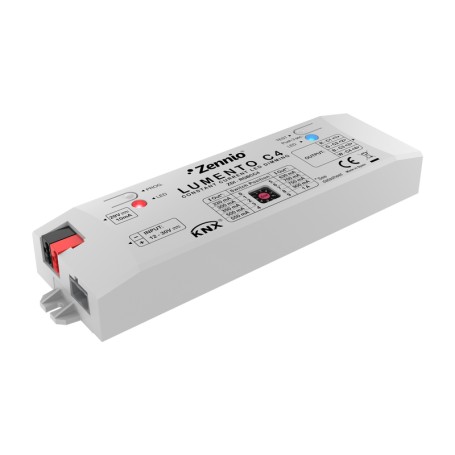

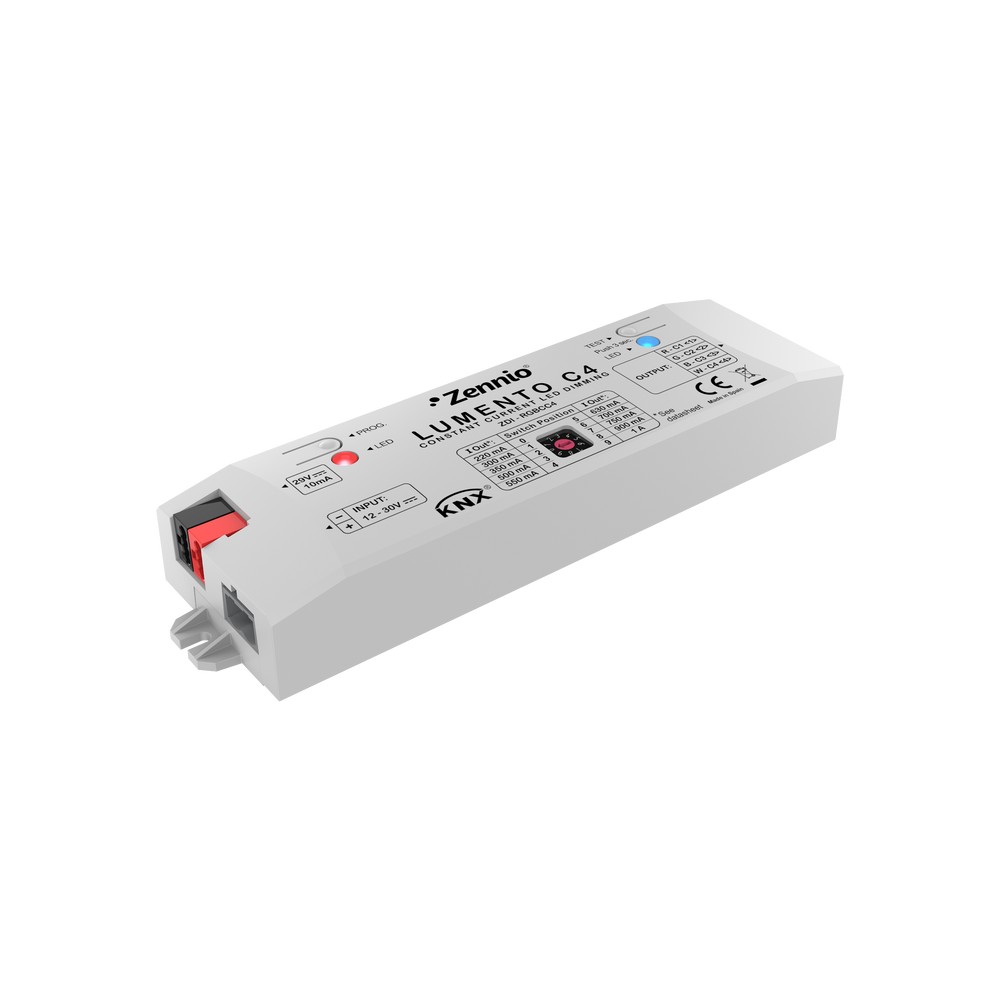

Zennio ZDI-RGBCC4, KNX LED Dimmer, Lumento C4, RGBW, Current

Lumento C4

Zennio

ZDI-RGBCC4

030300ZDIRGBCC4

8411080790835

New

KNX LED dimmer with 4 channels (RGBW or single channels) oriented to LED technology with constant current regulation. The dimming channels can be configured as 4 independent channels, 1 RGBW channel or 1 RGB channel + 1 individual channel.

More details

Prices are only visible for registered customers. Create an account now.

Customer ratings and reviews

Nobody has posted a review yet
Rate it

Data sheet

Mounting options Should be installed as close as possible to the load, Electrical control unit for separate installation, As close as possible to the power supply (load)
Length 172.00 Millimeter
External power supply 12VDC - 30VDC (konst.)
Width 51.00 Millimeter
Portection rating IP20
Height 33.00 Millimeter
Voltage (typical) 29.00 Volt
Min. ambient temperature 0.00 Celsius
Input type Keine
Number of inputs 0.0000
Voltage Range (Min.) 21.00 Volt
Max. ambient temperature 45.00 Celsius
Voltage Range (Max.) 31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX Data backup
Output type analog
Number of outputs 4.0000
Power consumption (W) 0.23 Watt
Output Current 1.00 Ampere
Output Power 120.00 Watt
Max. power per output (RLC) 1 A @ 25°C
Actuator Type Dimming Actuator
Operation humidity 5 to 95% RH (without condensation)
Recommended cable section 2.50 Square_millimeter
Connection Type Terminal block, screwed
KNX Secure No

More info

KNX LED dimmer with 4 channels (RGBW or single channels) oriented to LED technology with constant current regulation. The dimming channels can be configured as 4 independent channels, 1 RGBW channel or 1 RGB channel + 1 individual channel. It has a manual test button to check the channels functioning. Maximum current selection with parameter and manual selector: 220, 300, 350, 500, 550, 630, 700 or 750, 900 and 1000 mA.
