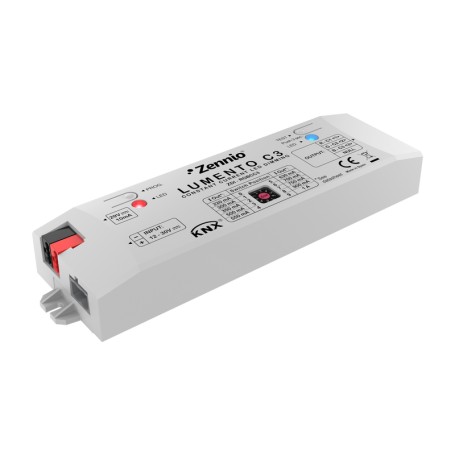

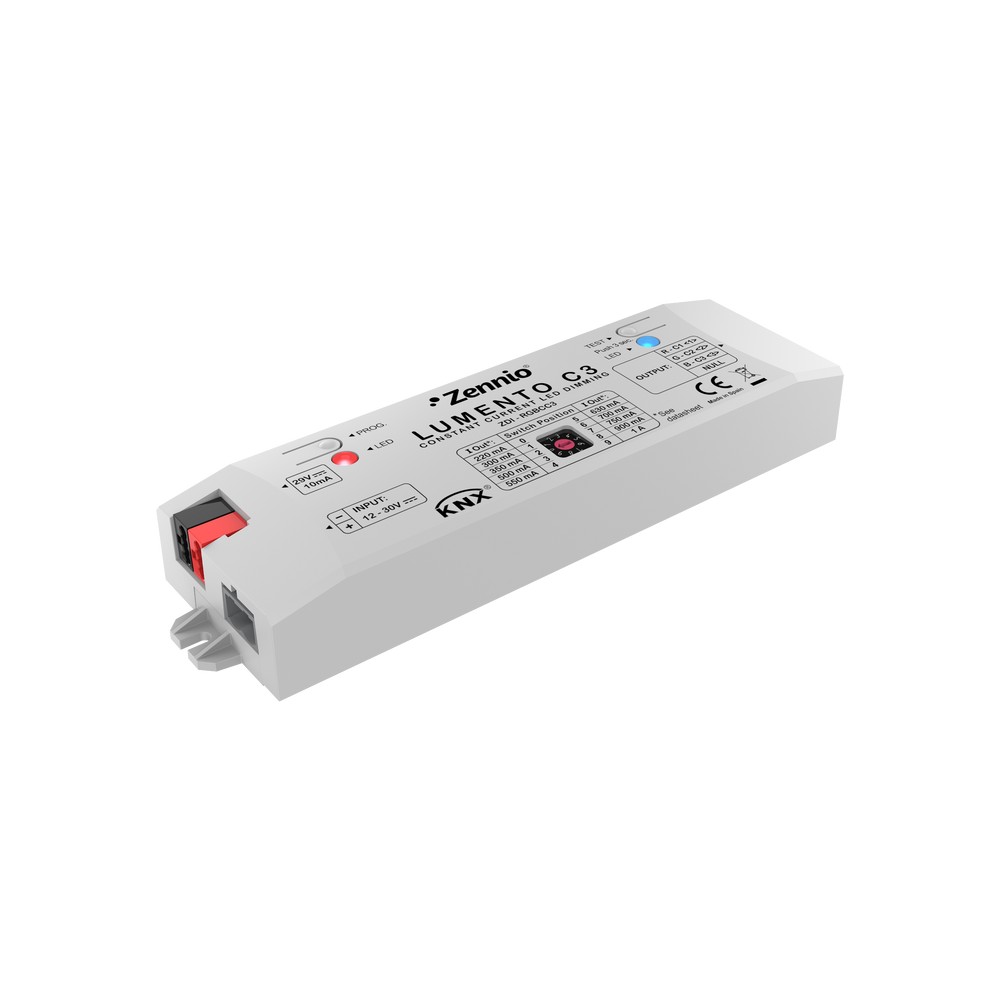

Lumento C3
Zennio
ZDI-RGBCC3
030300ZDIRGBCC3
8411080790828
New
on stock
Warning: Last items in stock!
Availability date:
Customer ratings and reviews
| Mounting options | Should be installed as close as possible to the load, Electrical control unit for separate installation, As close as possible to the power supply (load) |
| Length | 172.00 Millimeter |
| External power supply | 12VDC - 30VDC (konst.) |
| Width | 51.00 Millimeter |
| Portection rating | IP20 |
| Height | 33.00 Millimeter |
| Voltage (typical) | 29.00 Volt |
| Min. ambient temperature | 0.00 Celsius |
| Input type | Keine |
| Number of inputs | 0.0000 |
| Voltage Range (Min.) | 21.00 Volt |
| Max. ambient temperature | 45.00 Celsius |
| Voltage Range (Max.) | 31.00 Volt |
| Résponse devant une récupération de perte d'alimentation KNX | Data backup |
| Output type | analog |
| Number of outputs | 3.0000 |
| Power consumption (W) | 0.23 Watt |
| Output Current | 1.00 Ampere |
| Output Power | 90.00 Watt |
| Max. power per output (RLC) | 1 A @ 25°C |
| Actuator Type | Dimming Actuator |
| Operation humidity | 5 to 95% RH (without condensation) |
| Recommended cable section | 2.50 Square_millimeter |
| Connection Type | Terminal block, screwed |
| KNX Secure | No |
