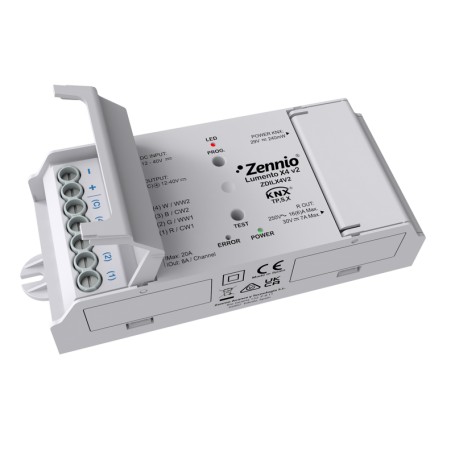

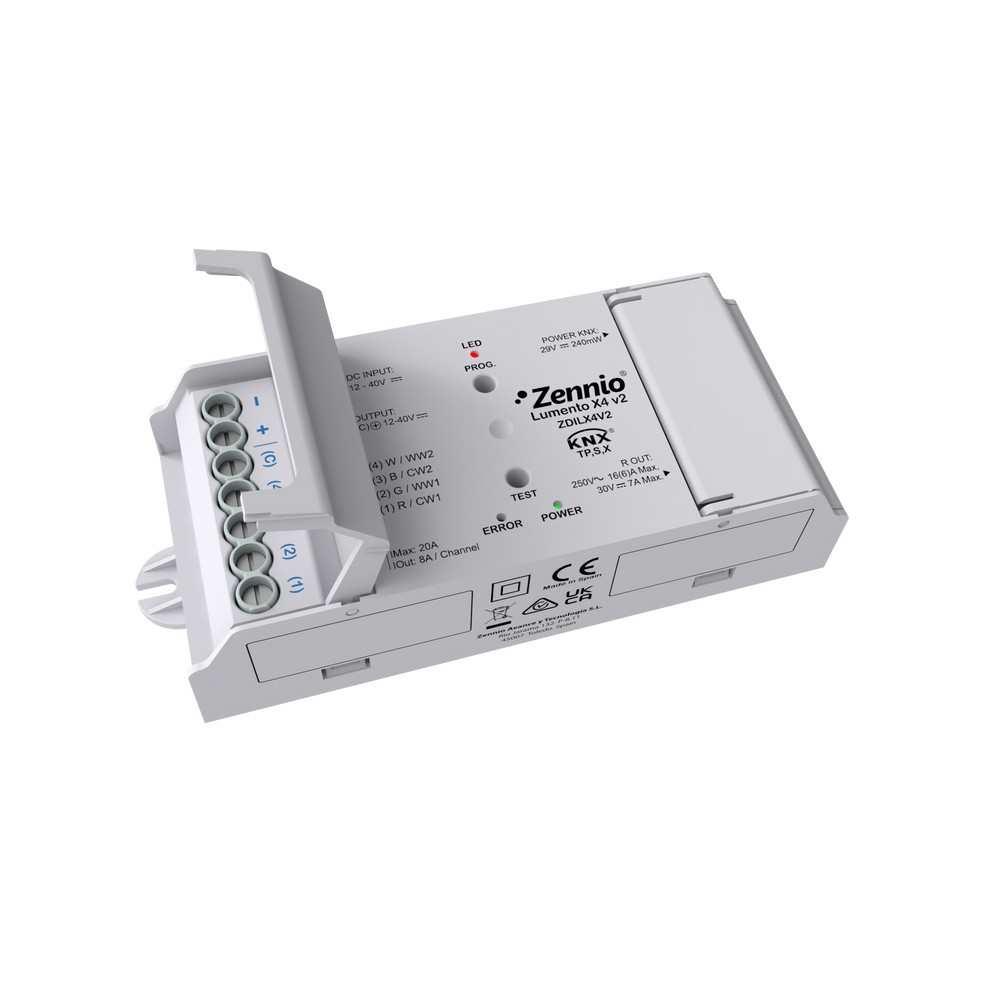

Zennio ZDILX4V2, LED dimmer, 4 channels, constant voltage LEDs

Lumento X4 v2

Zennio

ZDILX4V2

B-003-150404

8411080790927

New

ED dimmer with 4 channels designed for LED technology, featuring constant voltage regulation through pulse width modulation (PWM at 1000 hz). The dimming channels can be configured as independent channels, RGBW channel, RGB+W channels and TW channels.

More details

Prices are only visible for registered customers. Create an account now.

Customer ratings and reviews

Nobody has posted a review yet
Rate it

Data sheet

Length 137.00 Millimeter
Mounting options flush-mounting
Horizontal pitch (HP) 0.0000
External power supply 12V - 40V DC
Width 55.00 Millimeter
Portection rating IP20
Height 30.50 Millimeter
Voltage (typical) 29.00 Volt
Min. ambient temperature 0.00 Celsius
Voltage Range (Min.) 21.00 Volt
Number of inputs 0.0000
Max. ambient temperature 55.00 Celsius
Voltage Range (Max.) 31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX Data backup
Number of outputs 4.0000
Power consumption (W) 0.00 Watt
Output Current 0.00 Ampere
Output Power 0.00 Watt
Actuator Type Dimming Actuator
Operation humidity 5 to 95% RH (without condensation)
Recommended cable section 0.00 Square_millimeter
Bus system KNX TP (Twisted Pair)
Connection Type screwed
KNX Secure Yes

More info

  • Download Zennio ETS application files
