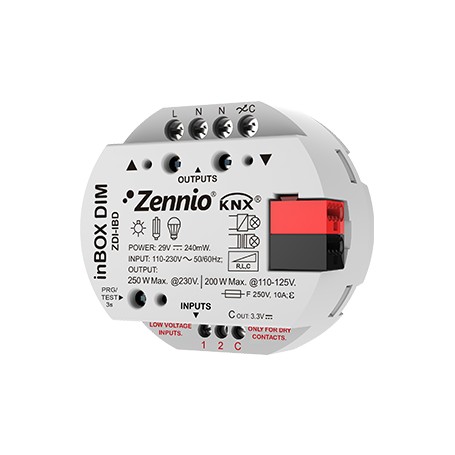

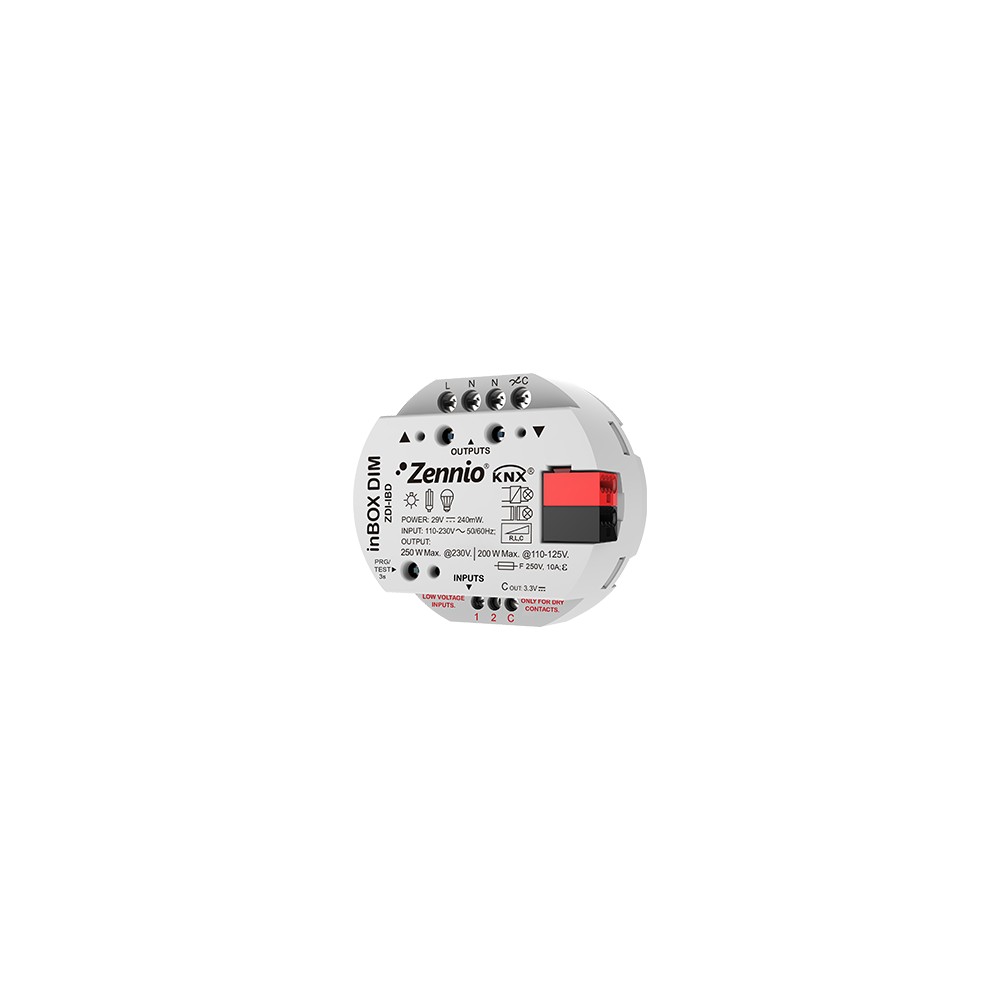

Zennio ZDI-IBD, KNX Universal Dimmer, 1 channel, 250W, RLC, LED, CFL

Product Name: inBOX DIM

Manufacturer: Zennio

Manufacturer-Nr.: ZDI-IBD

Reference: 030300ZDIIBD

GTIN: 8411080790781

Condition: New

The KNX universal dimmer for recessed mounting ZDI-IBD has 1 channel of 250W each for RLC, LED and CFL loads. The KNX dimmer automatically detects the load type (RLC). Integrated logic functions and 2 analog-digital inputs.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Mounting options	Mounting in flush-mounted distribution boxes and junction boxes
External power supply	230VAC
Portection rating	IP20
Height	26.00 Millimeter
Voltage (typical)	29.00 Volt
Min. ambient temperature	0.00 Celsius
Input type	analog/digital
Voltage Range (Min.)	21.00 Volt
Number of inputs	2.0000
Max. ambient temperature	40.00 Celsius
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Output type	digital
Number of outputs	1.0000
Power consumption (W)	0.24 Watt
Output Current	1.08 Ampere
Output Power	250.00 Watt
Actuator Type	Dimming Actuator
Operation humidity	5 to 95% RH (without condensation)
Recommended cable section	4.00 Square_millimeter
Connection Type	screwed
KNX Secure	No

More info

Downloads

Data sheet (DE)
inBOX DIM

Data sheet (EN)
inBOX DIM

Data sheet (FR)
inBOX DIM

Manual (EN)
inBOX DIM

Manual (FR)
inBOX DIM

Universal dimmer (RLC, LED, CFL) for flush mounting with one channel for up to 250W @230VAC (200W @110-125VAC). Auto load type detection (RLC). Configurable dimming curves for LED and CFL. It allows manual control of its outputs thanks to the push buttons on the cover. It includes 10 independent logical functions. In addition, it incorporates 2 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs. Error detection: short circuit, voltage surge, overheating, anomalous frequency and supply voltage failure.
