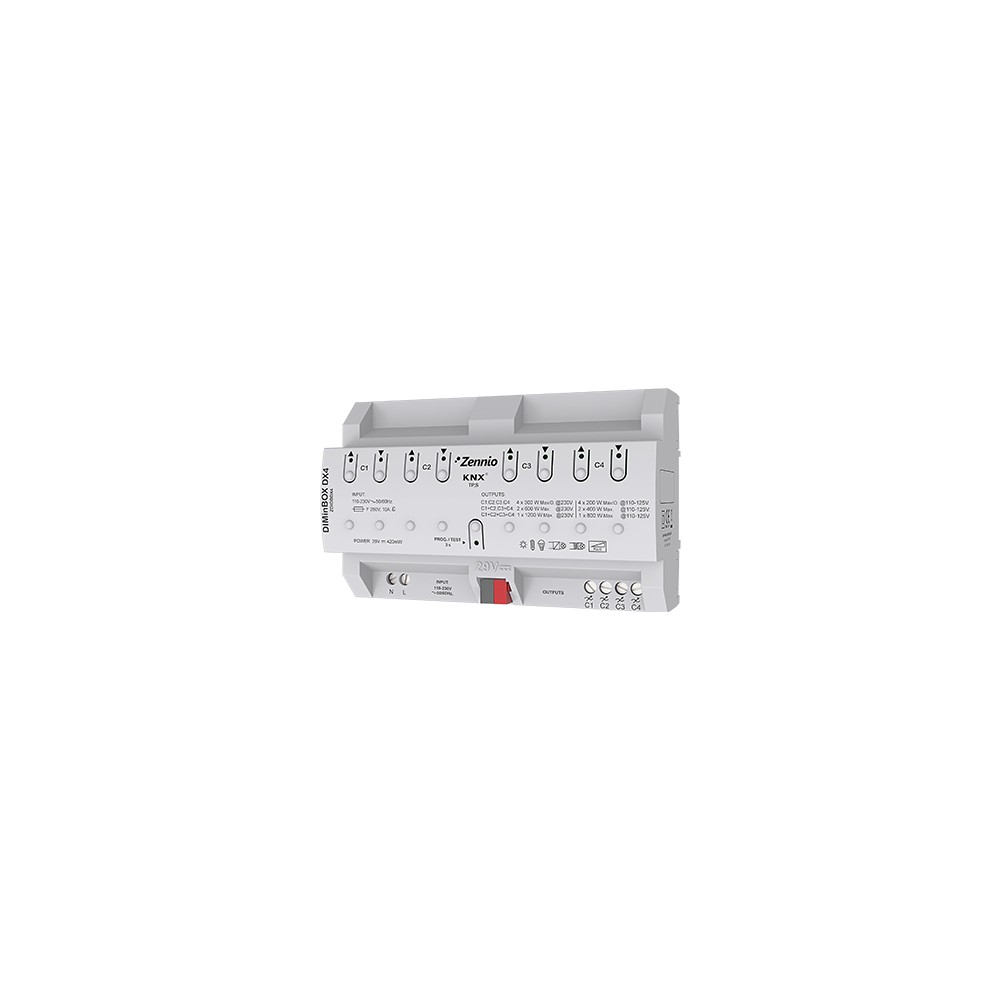

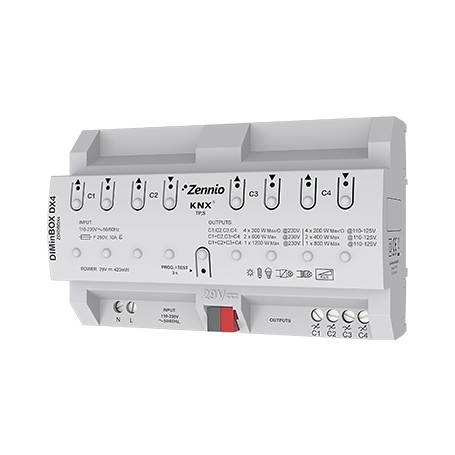

Zennio ZDIDBDX4, KNX Universal Dimmer, 4channels, 300W, RLC, LED, CFL

Universal dimming actuator (RLC, LED, CFL) for DIN rail (8u) with 4 channels for up to 300W@230VAC (200W@110VAC). It allows double channel connection, up to 600W @230VAC (400W@110VAC) and quad channel connection to control up to 1200W@230VAC (800W@110VAC). Auto load type detection (RLC). Configurable dimming curves for LED and CFL. It allows manual control of its outputs thanks to the push buttons on the cover. It includes 10 independent logical functions. Error detection: short circuit, voltage surge, overheating, anomalous frequency, supply voltage failure, parameterization error.
