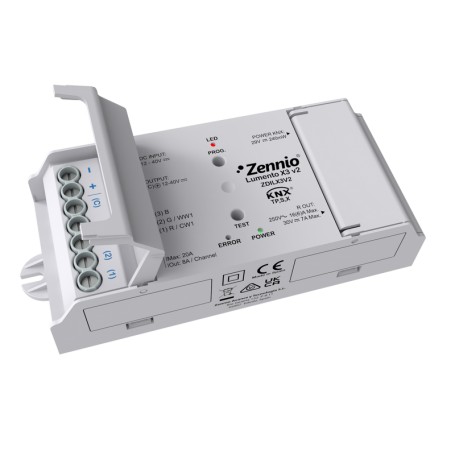

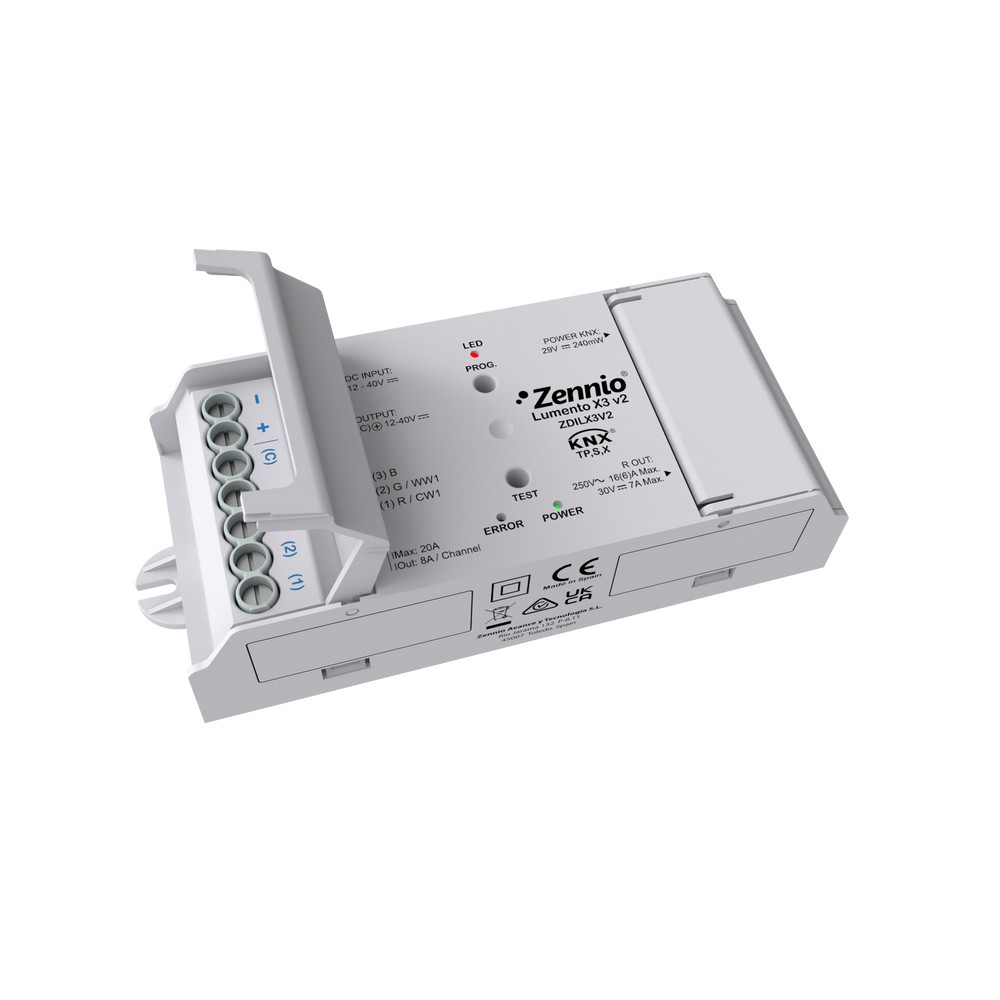

Zennio ZDILX3V2, Lumento X3 v2. 3-channel PWM dimmer

Product Name: Lumento X3 v2

Manufacturer: Zennio

Manufacturer-Nr.: ZDILX3V2

Reference: B-003-150403

GTIN: 8411080790910

Condition: New

LED dimmer with 3 channels designed for LED technology, featuring constant voltage regulation through pulse width modulation (PWM at 1000 hz). The dimming channels can be configured as independent channels, RGB channel and 1 TW channel + 1 independent channel. Additionally, it includes a relay output (16 A) to control the LED power supply or for independent use, as well as a manual test button to check the functioning of the channels. Among its comprehensive functionality, the Color Temperature control and the HCL control (Human Centric Lighting) stand out. It is compatible with KNX Secure. Maximum current per channel: 8 A. Maximum current per device: 20 A. Power supply: 12-40 VDC.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	137.40 Millimeter
Mounting options	flush-mounting
Horizontal pitch (HP)	0.0000
External power supply	12V - 40V DC
Width	55.00 Millimeter
Portection rating	IP20
Voltage (typical)	29.00 Volt
Height	30.50 Millimeter
Min. ambient temperature	0.00 Celsius
Voltage Range (Min.)	21.00 Volt
Max. ambient temperature	55.00 Celsius
Number of inputs	0.0000
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	3.0000
Power consumption (W)	0.00 Watt
Output Current	0.00 Ampere
Output Power	0.00 Watt
Actuator Type	Dimming Actuator
Operation humidity	5 to 95% RH (without condensation)
Recommended cable section	0.00 Square_millimeter
Bus system	KNX TP (Twisted Pair)
Connection Type	screwed
KNX Secure	Yes
