New ShutterBOX Drive 4CH

Zennio 4-Channel Shutter Actuator with automatic travel time measurement, KNX Secure

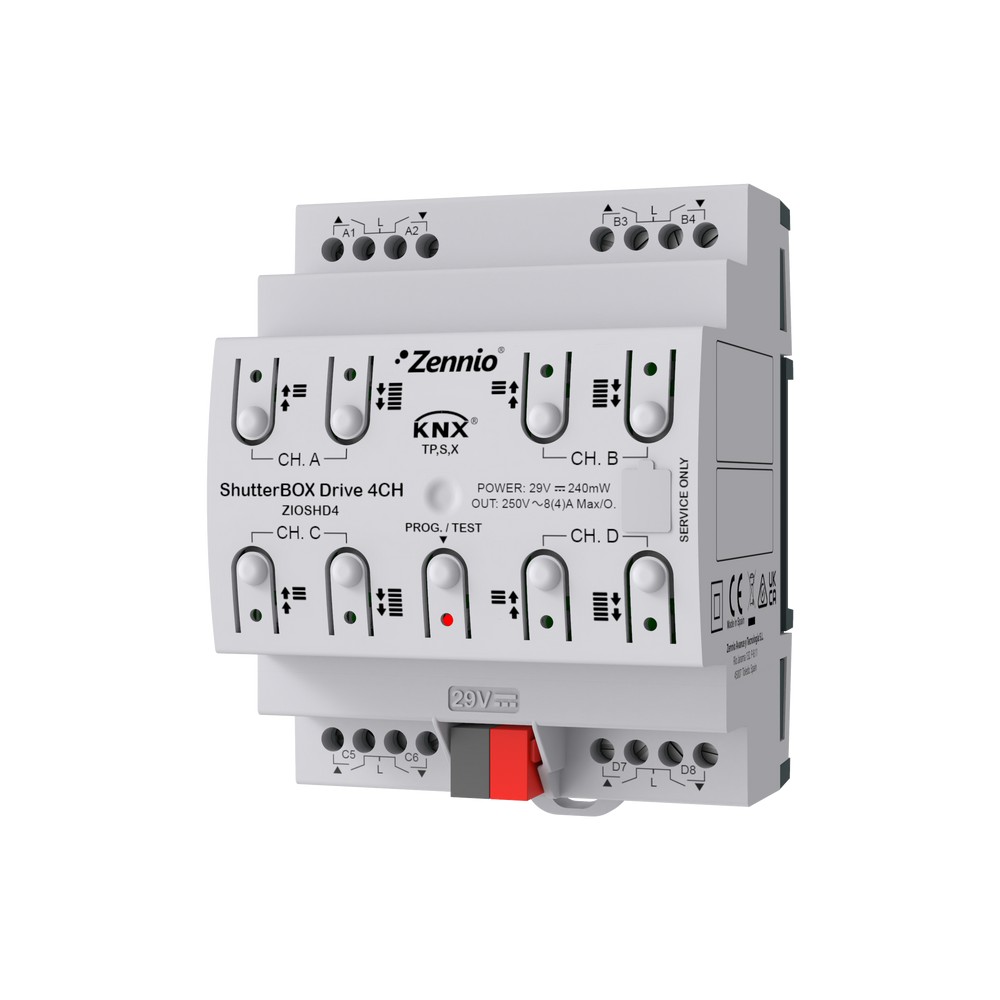

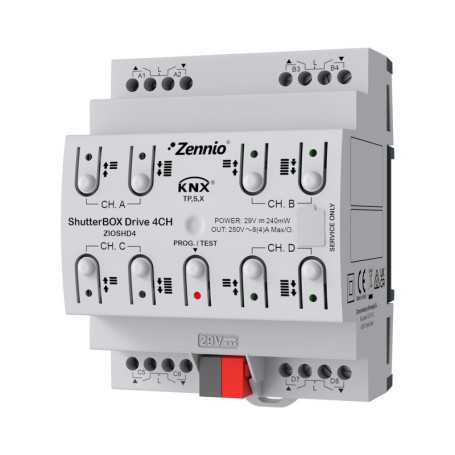

ShutterBOX Drive 4CH

Zennio

ZIOSHD4

B-003-154244

8411080789303

New

4-channel shutter actuator for DIN rail (4 units), which allows automatic travel times measurement through current detection. It includes 6 alarms per channel, a module of 20 logic functions and allows manual control of the outputs with LED status indication. Among its complete functionality, the event-driven automatic control stands out, calculating the position of the sun at each moment to be able to adjust the position of the shutter and the slats. It is compatible with KNX Secure.

More details

Prices are only visible for registered customers. Create an account now.

Customer ratings and reviews

Nobody has posted a review yet

Data sheet

Length 67.00 Millimeter
Mounting options DIN-Rail mounting
External power supply Aucun requis
Width 90.00 Millimeter
Portection rating IP20
Voltage (typical) 29.00 Volt
Height 70.00 Millimeter
Min. ambient temperature 0.00 Celsius
Number of inputs 4.0000
Voltage Range (Min.) 21.00 Volt
Max. ambient temperature 55.00 Celsius
Voltage Range (Max.) 31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX Data backup
Number of outputs 4.0000
Power consumption (W) 0.12 Watt
Output Current 8.00 Ampere
Output Power 2000.00 Watt
Actuator Type Shutter Actuator
Operation humidity 5 to 95% RH (without condensation)
Connection Type KNX bus terminal + screw terminal
KNX Secure Yes
